SPECIFICATIONS
GENERAL SPECIFICATIONS
OUTPUT SPECIFICATIONS
Input Voltage
36~75V
Voltage Accuracy
Typical ±1%
Switching Frequency Typical (3.3V)
300KHz
Line Regulation
Typical ±0.1%
Isolation Voltage
In/Out 1500V Load Regulation
Typical ±0.2%
Isolation Capacitance Typical 2000
pF
Ripple & Noise
Typical 50
mV
Isolation Resistance Minimum 10M
Ohms
Current Limits
Typical 130%
MTBF
Bellcore (3.3V)
TBD
Over Voltage
Typical 120%
OTP
Typical 110°C Voltage Trim
+10%,
-10%
Size
2.28”Ч1.45”Ч0.33”
PART NUMBERING SYSTEM
Q
48
D
V
1R5
33
N
R
F
A
Product
Type
Input
Voltage
Number of
Outputs
Product
Series
Output
Voltage 1
Output
Voltage 2
ON/OFF
Logic
Pin
Length
Option
Code
Q - Quarter
Brick
48V
D - Dual Output V - Value line
1R0 - 1.0V
1R2 - 1.2V
1R5 - 1.5V
1R8 - 1.8V
2R5 - 2.5V
33 - 3.3V
N - Negative
P - Positive
R - 0.150”
N - 0.145”
K - 0.110”
F- RoHS 6/6
(Lead Free)
A - Standard
Functions
MODEL LIST
MODEL NAME
INPUT
OUTPUT
*
EFF @ Full Load
Q48DV2R533NRFA 36V~75V
1.6A
2.5V/10A 3.3V/10A
87.0%
Q48DV1R833NRFA 36V~75V
1.4A
1.8V/10A 3.3V/10A
86.5%
Q48DV1R533NRFA 36V~75V
1.3A
1.5V/10A 3.3V/10A
86.0%
Q48DV1R233NRFA 36V~75V
1.2A
1.2V/10A 3.3V/10A
86.0%
Q48DV1R033NRFA 36V~75V
1.1A
1.0V/10A 3.3V/10A
85.5%
* Note: Total output power should not exceed 40 watts, maximum output current for each channel is 10A.

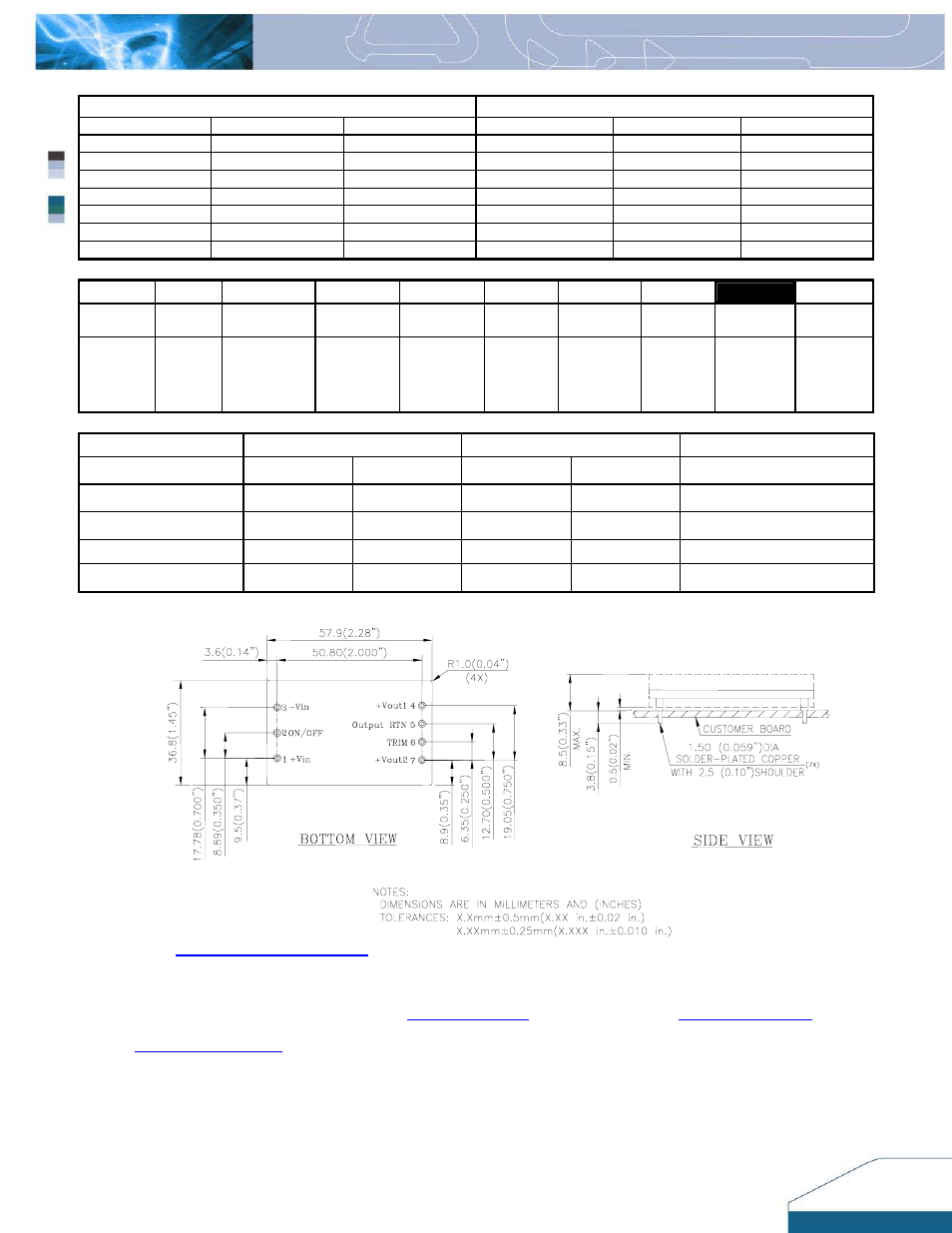

MECHANICAL DRAWING
