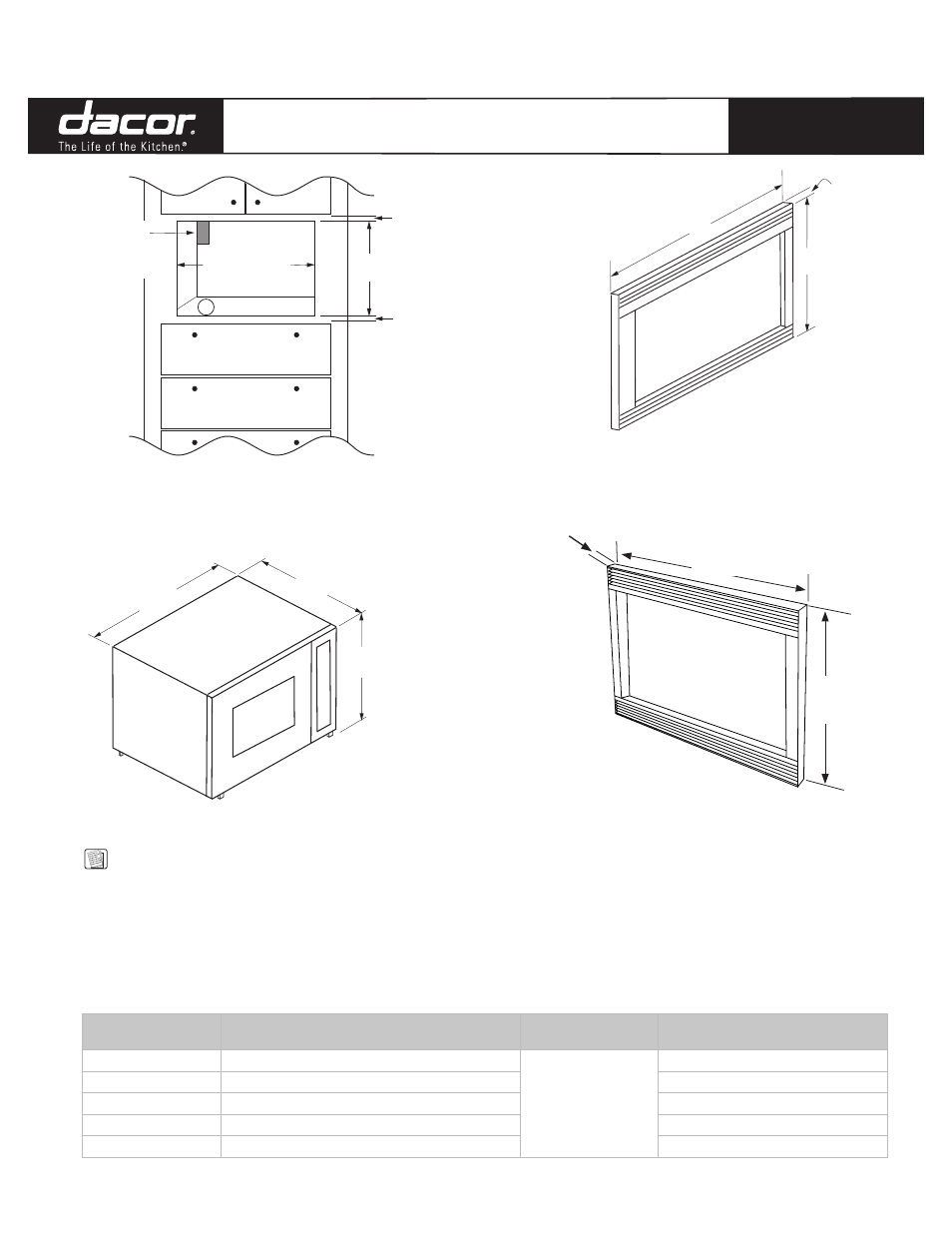

PLANNING
GUIDE
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
12.1
microwave Oven
DmT2420
AmTk27, AmTk30, AmTk36, AOmTk27, AOmTk30
16 3/4"
(425mm)
24 3/8" (619mm)
1” (25mm)*
Min.
7/8” (22mm)*
Min.
120 Vac
15 Amp.
3-Prong
Electrical
Outlet
3
mICrOwAvE AND TrIm kIT
23 15/16”
(608mm)
19 1/4”
(489mm)
13 7/16”
(341mm)
DmT2420 SPECIFICATIONS
“A”
18 1/8”
(460mm)
1” (25mm)
AmTk OvErALL DImENSIONS
(Epicure ® or Millennia™ Trim Kit)
Model No. “A” Overall Width Trim Kit Overlays
Approximate
Shipping Weight
AMTK27 27” (686mm)
5/8” (16mm) Top,
3/4” (19mm) Bottom
12 lbs.
AMTK30 30” (762mm) 12 lbs.
AMTK36 36” (914mm) 16 lbs.
AOMTK27 27” (686mm) 17 lbs.
AOMTK30 30” (762mm) 18 lbs.
NOTE:
1. 24” (610mm) minimum exterior cabinet depth.
2. See the Combination Installation (CI) Section if installing with a
wall oven or warming oven.
3. 3/4” (19mm) support platform (flush with cutout).
4. Microwave is supplied with a 42” (1067mm) power cord, with a
three prong grounded plug.
5. Tolerances: +1/16” (1.6mm), -0 unless otherwise specified.
1/1
Revised
06/17/08
Shipping Weight: 46 lbs.
Circuit required: 120 Vac,
15 Amp. dedicated
Total (Connected Load):
1.5 Kw (12.5 Amp.)
AOmTk OvErALL DImENSIONS
(Preference ® Trim Kit)
“A”
18 1/8”
(460mm)
1 1/4” (32mm)
*Bare minimum spacing: Includes additional space to avoid
scrapping/vibration.
