Dacor AMTK30 User Manual
Planning guide, Microwave oven

PLANNING
GUIDE
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
12.1
Microwave Oven
DMT2420
AMTK27, AMTK30, AMTK36, AOMTK27, AOMTK30
16 3/4"
(425mm)
24 3/8" (619mm)
1” (25mm)*
Min.
7/8” (22mm)*
Min.
120 Vac
15 Amp.
3-Prong
Electrical
Outlet
3
MIcrOwAvE AND TrIM KIT
23 15/16”
(608mm)
19 1/4”
(489mm)
13 7/16”
(341mm)

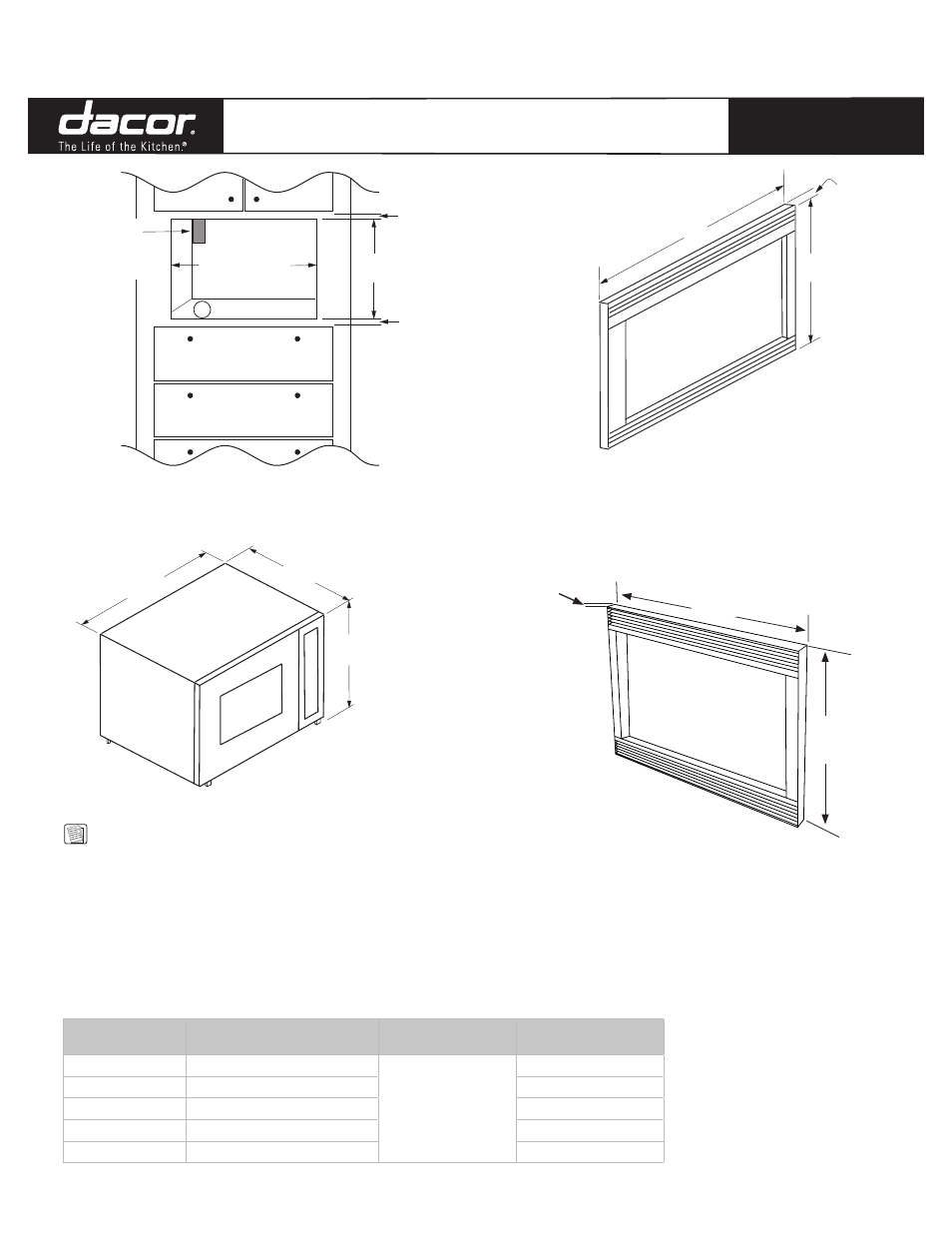

DMT2420 sPEcIfIcATIONs
“A”
18 1/8”
(460mm)
1” (25mm)
AMTK OvErALL DIMENsIONs
(Epicure
®
or Millennia™ Trim Kit)
AOMTK OvErALL DIMENsIONs
(Preference
®
Trim Kit)
Model No.
“A” Overall Width
Trim Kit Overlays
Approximate
Shipping Weight
AMTK27
27” (686mm)
5/8” (16mm) Top,
3/4” (19mm) Bottom
12 lbs.
AMTK30
30” (762mm)
12 lbs.
AMTK36
36” (914mm)
16 lbs.
AOMTK27
27” (686mm)
17 lbs.
AOMTK30
30” (762mm)
18 lbs.
NOTE:
1. 24” (610mm) minimum exterior cabinet depth.
2. See the Combination Installation (CI) Section if
installing with a wall oven, or warming oven.
3. 3/4” (19mm) support platform (flush with cutout).
4. Microwave is supplied with a 42” (1067mm) power
cord, with a three prong grounded plug.
5. Tolerances: +1/16” (1.6mm), -0 unless otherwise
specified.
1/1
“A”
18 1/8”
(460mm)
Revised
05/05/08
Shipping Weight: 46 lbs.
Circuit Required: 120 Vac,
15 Amp. dedicated
Total (Connected Load):
1.5 Kw (12.5 Amp.)
1 1/4”
(32mm)
*Bare minimum spacing: Includes additional space to avoid
scrapping/vibration.
