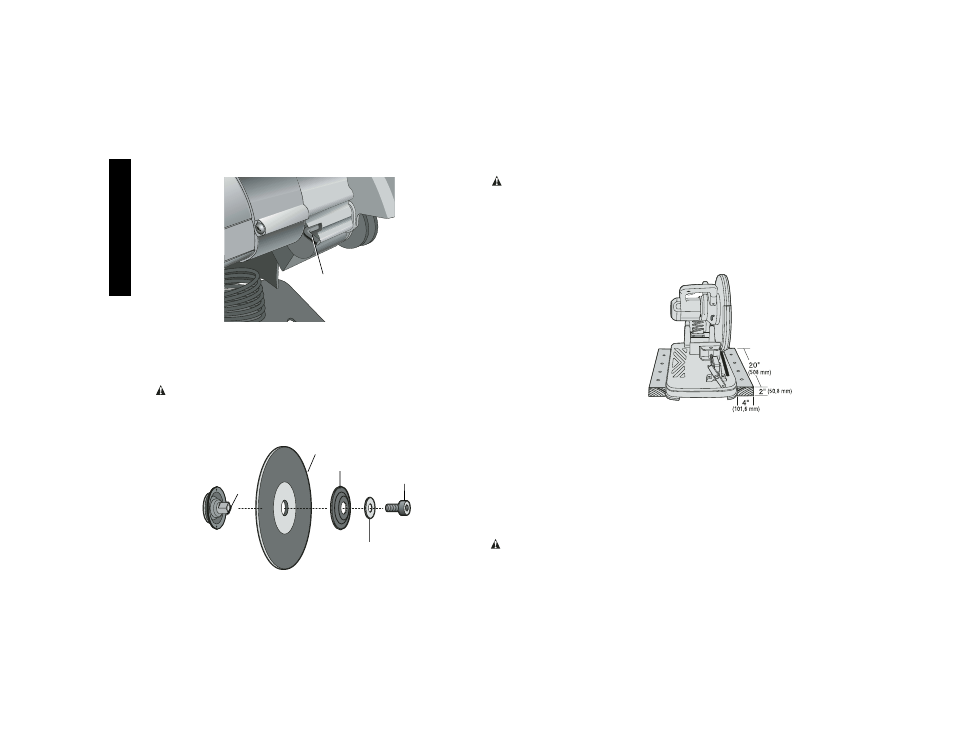

2. Remove the bolt (T), washer (U), outside flange (V) and old
wheel (J).
3. Make sure flange surfaces are clean and flat. Install the new
abrasive wheel by reversing the above steps.
4. Do not overtighten bolt.
WARNING: Check the work surface that the chop saw rests on
when replacing with a new abrasive wheel. It is possible that the
wheel may contact ANY ITEMS OR STRUCTURE THAT
EXTENDS ABOVE work surface (under the base) when the arm is
fully lowered.
S
U
V
J FIG. 8
T
FIG. 7
L
Mounting
CAUTION: Tool must be supported on stable, level, non-skid
surface to prevent unexpected movement when operating.
PROCEDURE FOR PERMANENT MOUNTING
1. Mark through the holes in the base (D) and drill two holes,
5/16" (7.94mm) diameter, through the mounting surface.
2. Use 1/4" (6.35mm) fasteners to securely mount base to
mounting surface.
CRADLE MOUNTING (FIG. 9)
1. Cut two boards approximate-
ly 20" long x 2" high x 4" wide
(508 x 50.8 x 101.6mm).
2. Place the chop saw at
desired work location.
3. Place boards tightly along
side and nail to work surface.
Operation Tips
for More
Accurate Cuts
• Allow the wheel to do the cutting. Excessive force will cause the
wheel to glaze reducing cutting efficiency and/or to deflect
causing inaccurate cuts.
• Properly adjust fence angle.
• Make sure material is laying flat across base.
• Properly clamp material to avoid movement and vibration.
MAINTENANCE
Motor Brush Inspection and
Replacement (Fig. 10)
WARNING: Turn off and unplug the tool. Be sure the trigger
switch is in the OFF position.
FIG. 9
