Mechanical drawing – Delta Electronics 33W Family User Manual
Page 12
DS_S48SA1R812_06012006

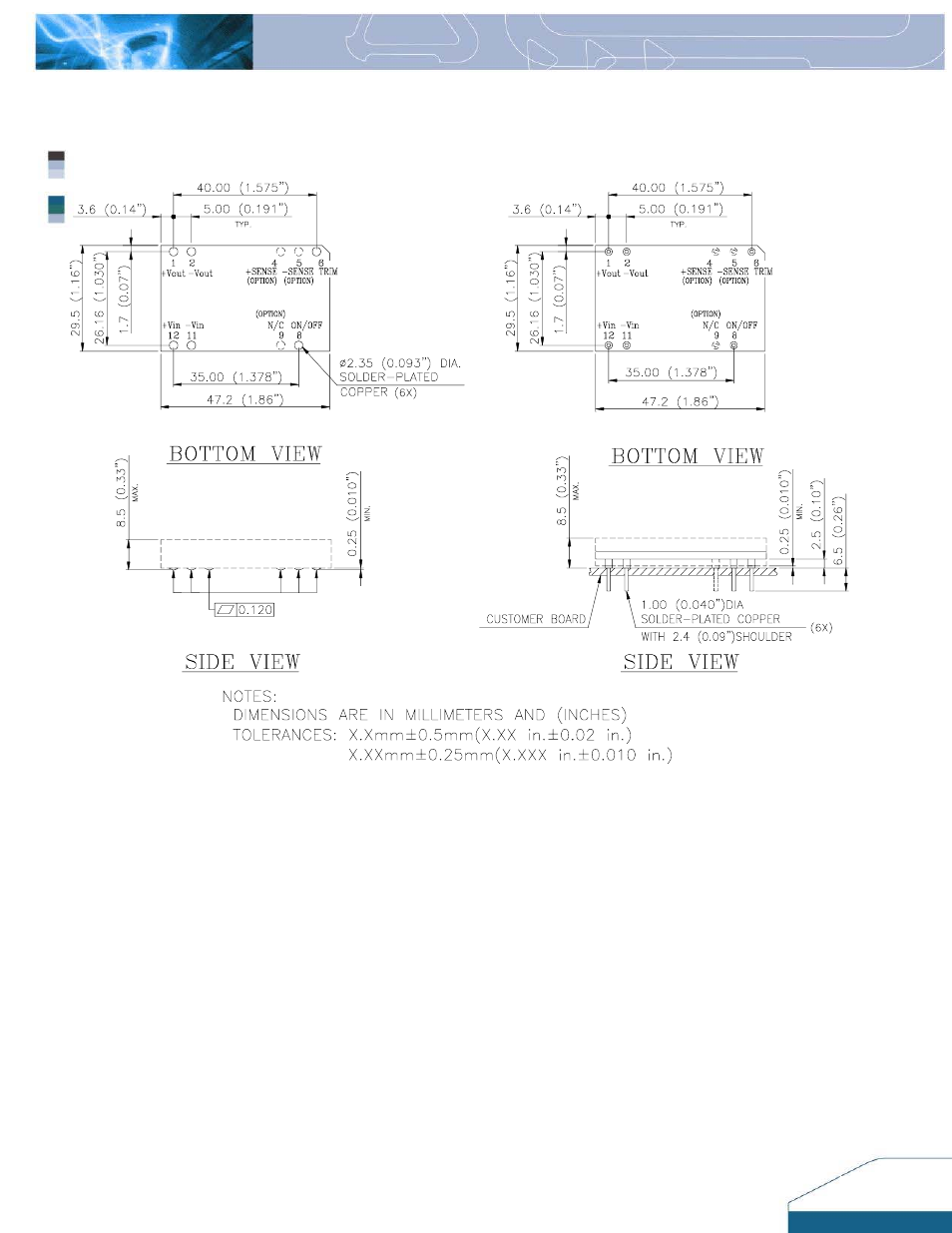

MECHANICAL DRAWING
SMD
Through-Hole
Pin No.
Name
Function
1
+Vout
Positive output voltage
2
-Vout
Negative output voltage
6
Trim
Output voltage trim
8 ON/OFF
ON/OFF
logic
11
-Vin
Negative input voltage
12
+Vin
Positive input voltage
Optional Pin Name
Function
4
+Sense (Option)
Positive sense pin
5
9
-Sense (Option)
NC
Negative sense pin
No connection
12
