9
Adjusting the Air Flap (SL 88/2)
Setting the Conectron LKS 160 adjustment motor
The adjustment motor has the following activation func-
tions:
“Position 0”, “Level 1” and “Level 2” as well as an activa-
tion contact for the Magnetic valve level 2. The adjust-
ment motor is also equipped with a reset lever.
Adjusting the air flap
The air flap is opened or closed until the soot pattern
displays an oil-free colour, soot “0 - 1” and value 12-14
% for the CO
2
.
When making the adjustment, keep in mind that when
there is a lot of excess air, the soot increases again and
oil can appear again in the soot pattern. If, when the air
flap is completely open, the flame emits soot or does not
burn evenly, the pressure behind the swivel disc must be
reduced with the adjustment screw.
Setting “Air quantity level 1”
Adjustment lever blue
Less air Level 1:
Set the blue adjustment lever to a smaller value by
turning it counter-clockwise. When the burner is run-
ning, the adjustment motor automatically adjusts.
More air Level 1:
Set the blue adjustment lever to a smaller value by
turning it clockwise. When the burner is running, the
adjustment motor automatically adjusts.
Setting “Air quantity level 2 ”
Adjustment lever orange
Less air Level 2:
Set the orange adjustment lever to a smaller value
by turning it counter-clockwise. Keep in mind that the
adjustment motor does not adjust its speed auto-
matically. Press the reset lever briefly, the adjust-
ment motor then adjusts to the set value.
More air Level 2:
Set the orange adjustment lever to a larger value by
turning it clockwise. When the burner is running, the
adjustment motor automatically adjusts

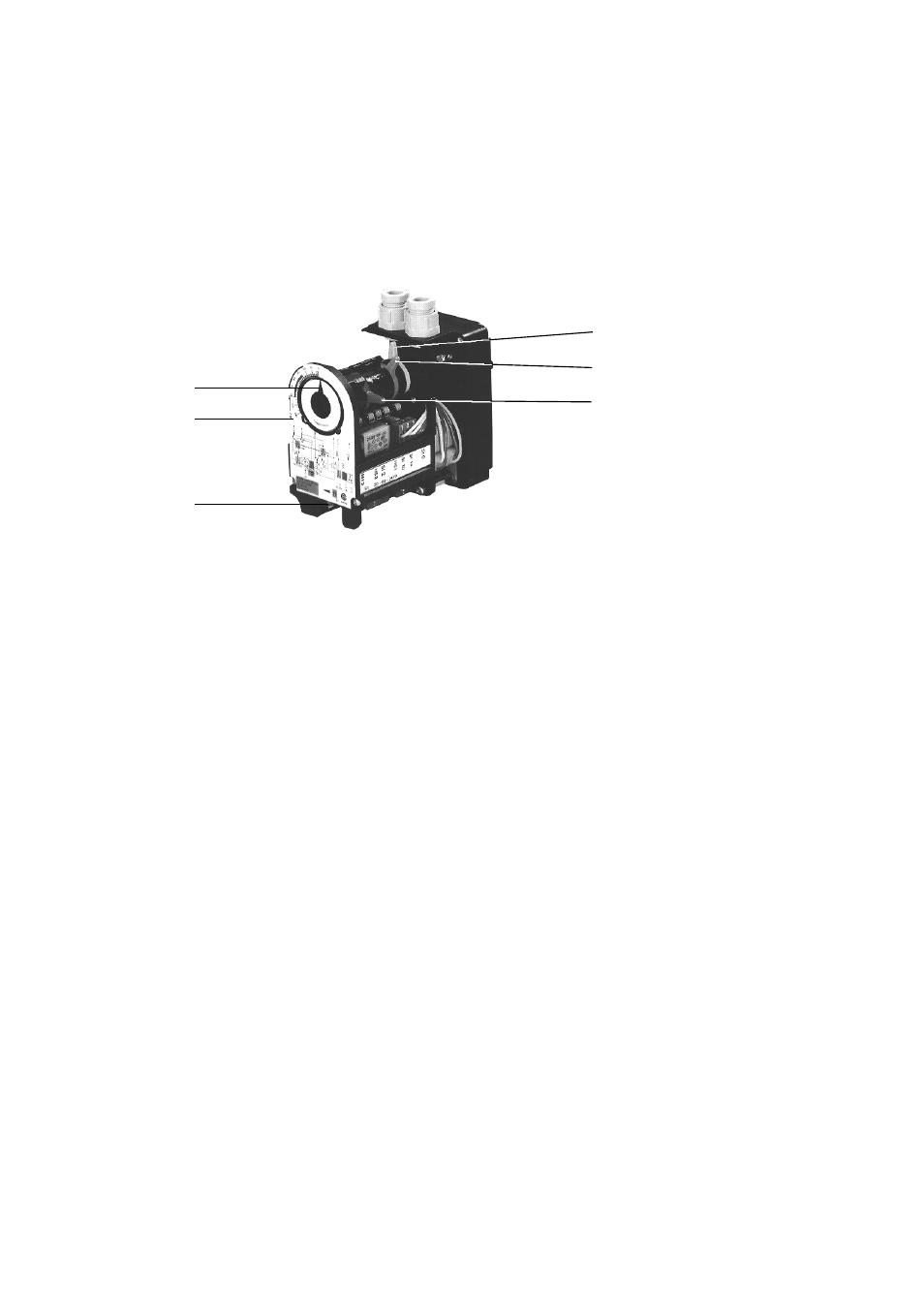

Adjustment lever “blue” Level 1
Adjustment lever “orange” Level 2
Adjustment lever “black” magnetic valve Level 2
Opening indicator
Opening scale
Reset lever
When burner is assembled, the opening scale was fixed
in such a way that the position 0° corresponds to a
closed air flap.
When the flap is completely open, this corresponds to
an angle of approx. 90°. For a control deactivation, the
adjustment motor is reset to the 0 factory setting.
Activation point “Magnetic valve 2”
Adjustment lever black
The activation point for magnetic valve 2 must lie be-
tween the activation point of the orange activation lever
and the blue one.
Important information
Please make sure that the cam of the black adjustment
lever is never pressed to Level 1.
At Level 2, the cam of the black adjustment lever must
be pressed, otherwise the fuel quantity for Level 2 is not
released.
G Make sure that there are no mechanical defects on
the adjustment motor or the air flap otherwise the
adjustment motor will be damaged.
Functional result of the adjustment motor
1. During the pre-ventilation phase, the adjustment mo-
tor accelerates to the activation point of the 2nd
level.
SL 77/2 – 88/2.
2. Shortly before opening MV 1, the adjustment motor
returns to Air quantity level 1 and the burner begins
operation.
3. After the through-connection of thermostat 2, the ad-
justment motor adjusts its speed to Air quantity level
2 and opens briefly after exiting the 1st level MV 2.
4. Thermostat level 2 switches the burner off and the
adjustment motor returns to Level 1.
The burner remains at Level 1 during operation.
5. Thermostat level 2 switches burner operation off and
the adjustment motor turns to Position 0.
