Parts Breakdown Parts Breakdown Parts Breakdown
® ®
HD450 Amp AMT Machine Torches
HD64AMT-174 450 amp body w/plug - for use with 12” units.
HD64SAMT-174 450 amp short body w/plug - for use with 8-3/4” units.
HD64AMTN
450 amp body w/nipple - for use with cable hose type units.
HD64SAMTN 450 amp short body w/nipple - for use with cable hose type units.
PART NO. DESCRIPTION
2’ 4’ 6’ 8’ 10’ 12’ 15’ 20’ 25’
HDAMT450-3545-2 HDAMT450-3545-4 HDAMT450-3545-6 HDAMT450-3545-8 HDAMT450-3545-10 HDAMT450-3545-12 HDAMT450-3545-15 HDAMT450-3545-20 HDAMT450-3545-25
HDAMT450-116-2 HDAMT450-116-4 HDAMT450-116-6 HDAMT450-116-8 HDAMT450-116-10 HDAMT450-116-12 HDAMT450-116-15 HDAMT450-116-20 HDAMT450-116-25
HDAMT450-564-2 HDAMT450-564-4 HDAMT450-564-6 HDAMT450-564-8 HDAMT450-564-10 HDAMT450-564-12 HDAMT450-564-15 HDAMT450-564-20 HDAMT450-564-25
HDAMT450-332-2 HDAMT450-332-4 HDAMT450-332-6 HDAMT450-332-8 HDAMT450-332-10 HDAMT450-332-12 HDAMT450-332-15 --- ---
Complete HD450 Amp AMT Machine Torch Packages
TO ORDER DIRECT CONNECT AMT MACHINE TORCHES
Standard -
All wire feeders that accept the “PROFAX” rear adapter. e.g. HDAMT450-3545-15
® Lincoln Direct - Add an L for the standard Lincoln ¾” dia. rear adapter. e.g. HDAMTL450-3545-15
All other Lincoln machines use the “PROFAX” standard rear adapter. e.g. HDAMT450-3545-15
® Miller Direct Add an M. e.g. HDAMTM450-3545-15
Euro-Quick Add an X. e.g. HDAMTX450-3545-15
1
5 6 7
4
10
14
11 13
10
17
18
16
16
23
24
34
25 29 30
5
23
28 25
31
22
21
27
8
32
20
19
27
26
24
19
15
10
13
11 12
8
9a 9
21
22
20 AL-300-25
7/32” hex wrench
44-25
5/64” hex wrench
optional front end
33

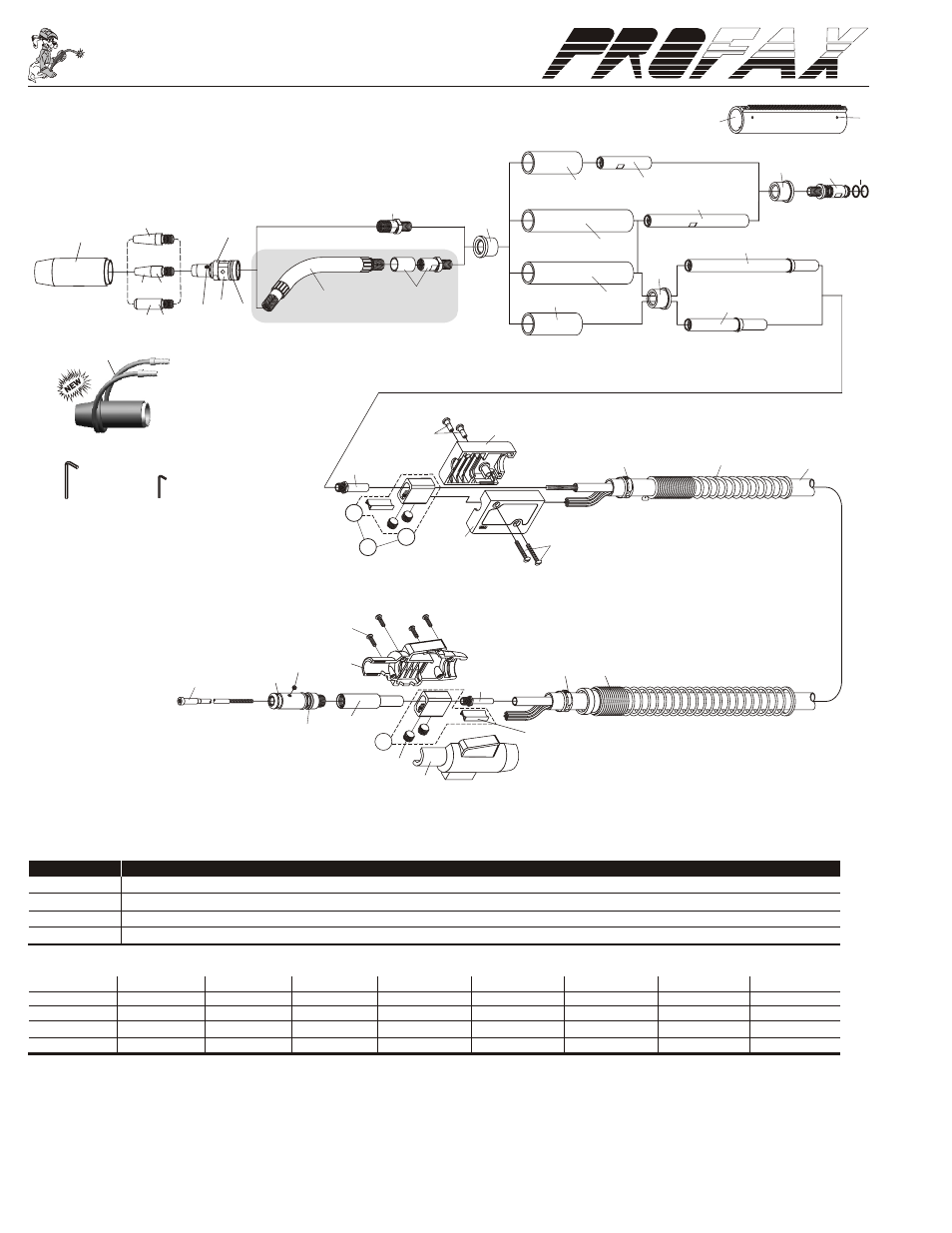

HD450 Amp AMT Heavy Duty
Machine Torch Parts List
HD450 Amp AMT Heavy Duty
Machine Torch Parts List
1a
optional water
cooled nozzle
3 3a
2 2a
2b
1. 27S50 Heavy duty nozzle 1/2” (copper)
27S62 Heavy duty nozzle 5/8” (copper) (standard)
27S75 Heavy duty nozzle 3/4” (copper)
27T38 Tapered nozzle 3/8” (brass)
27T50 Nozzle 1/2” bottle (copper)
27K50 Medium duty nozzle 1/2” (copper)
1a. 27S62WC Optional water cooled nozzle 5/8” (copper)
2. 17ST See chart (standard)
2a. 16ST See chart
2b. 17SLT Contact tip use with 27T38 nozzle
3. 17S See chart
3a. 16S See chart
4. PX57HD Heavy duty Gas diffuser
5. 44C Set screw for gas diffuser/conduit
6. 240 Spring
7. 260 O-ring
8. PX54AMTHD Heavy duty 450 amp head (standard)
9. PX405-22HD Heavy duty Gooseneck 22° optional
PX405-45HD Heavy duty Gooseneck 45° optional
PX405-60HD Heavy duty Gooseneck 60° optional
PX405-180HD Heavy duty Gooseneck 180° optional
9a. PX54TAMT Head for gooseneck - optional
10. PX45IN Insulator (2 req’d)
11. PX45OTS Outer tube short
12. PX45ITPS Short internal tube (plug)
13. PX45OTL Outer tube long
14. PX45ITPL Long internal tube (plug)
15. PX174AMT Plug
16. PX224 O-ring
17. PX64ITNL Internal tube long (w/18-480 snap ring)
18. PX64ITNS Internal tube short (w/18-480 snap ring)
19. PX64N Nipple
20. PX114 Separator
21. PXA-532-24 9/16-18 ball point screws
22. PX104 Cable connector block assembly
23. PX125FM Binder screws for connector block
24. PX185 Connector block w/binder screws
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
25. PX134-14 Clamp - connector block
26. PXR185-SC Screws for housing (4)
27. PXR185-H Housing
28. PXR185-S Spring
29. PX144-6S Spring strain relief for handle
30. PX450-2 2’ replacement heavy duty cable assembly
PX450-4 4’ replacement heavy duty cable assembly
PX450-6 6’ replacement heavy duty cable assembly
PX450-8 8’ replacement heavy duty cable assembly
PX450-10 10’ replacement heavy duty cable assembly
PX450-12 12’ replacement heavy duty cable assembly
PX450-15 15’ replacement heavy duty cable assembly
PX450-20 20’ replacement heavy duty cable assembly
PX450-25 25’ replacement heavy duty cable assembly
31. PXR174-UA Standard connector plug w/64N
PXR174-UAG Connector plug with gas hole w/64N
® ® 32. PXR174-* Connector, *(L)Lincoln , *(M)Miller , *(T)Std.
33. PX44-3545-1 1’ wire conduit assy. used with .035-.045 dia. wire
PX44-116-1 1’ wire conduit assy. used with 1/16” dia. wire
PX44-564-1 1’ wire conduit assy. used with 5/64” dia. wire
PX44-3545-15 15’ wire conduit assy. used with .035-.045 dia. wire
PX44-116-15 15’ wire conduit assy. used with 1/16” dia. wire
PX44-564-15 15’ wire conduit assy. used with 5/64” dia. wire
PX44N-3545-15 15’ nylon lined conduit assy. used with .035-3/64”
dia. wire, recommended for aluminum wire
PX44N-116-15 15’ nylon lined conduit assy. used with 1/16”
dia. wire, recommended for aluminum wire
PX44-3545-25 25’ wire conduit assy. used with .035-.045 dia. wire
PX44-116-25 25’ wire conduit assy. used with 1/16” dia. wire
PX44-564-25 25’ wire conduit assy. used with 5/64” dia. wire
34. PX24PAMT Barrel w/rack 24 pitch (Optional)
PX32PAMT Barrel w/rack 32 pitch (Optional)
1-1/2”
M8 - 1.25 Thd.
3/8”
PROFAX DESCRIPTION TIP I.D.
16ST-35 Contact tip .035 .044
16ST-40 Contact tip .040 .049
16ST-45 Contact tip .045 .054
16ST-52 Contact tip .052 .064
16ST-116 Contact tip 1/16” .073
16ST-564 Contact tip 5/64” .093
1-1/2”
M8 - 1.25 Thd.
3/8”
1.350
M8 - 1.25 Thd.
3/8”
1.350
M8 - 1.25 Thd.
3/8”
2
3
2A
3A
PROFAX DESCRIPTION TIP I.D.
Recessed
*Standard tip shipped with gun.
Recessed
Flush
Flush
16S-35 Contact tip .035 .044
16S-40 Contact tip .040 .049
16S-45 Contact tip .045 .054
16S-52 Contact tip .052 .064
16S-116 Contact tip 1/16” .073
16S-564 Contact tip 5/64” .093
17S-35 Contact tip .035 .044
17S-40 Contact tip .040 .049
17S-45 Contact tip .045 .054
17AS-364 Contact tip 3/64” aluminum .060
17S-52
Contact tip .052 .064
17S-116 Contact tip 1/16” .073
17AS-116 Contact tip 1/16” aluminum .078
17S-564
Contact tip 5/64” .093
17ST-35 Contact tip .035 .044
17ST-40 Contact tip .040 .049
17ST-45 Contact tip .045 .054
17ST-52 Contact tip .052 .064
17ST-116 Contact tip 1/16” .073
17ST-564 Contact tip 5/64” .093
PROFAX DESCRIPTION PROFAX DESCRIPTION
27S75 H.D. Nozzle 3/4”
27S62 H.D. Nozzle 5/8”
27S50 H.D. Nozzle 1/2”
27K50 M.D. Nozzle 1/2”
2-7/8”
2-7/8”
2-7/8”
5/8” I.D.
1/2” I.D.
3/4” I.D.
27T38 Nozzle 3/8”
27T50 Nozzle 1/2”
2-7/8”
2-13/16”
3/8” I.D.
1/2” I.D.
2-7/8”
1/2” I.D.
Requires
17SLT
Series Tips
