5.Advanced User Guidebook
To use wave record function, do as follows:
(1) Press Save button.
(2) Press H1 button, turn the M knob to choose Record.
(3) Press H2 button. In the Mode menu, press F2 button to choose Record.
(4) Press H3 button. In the Frame Set menu, press F1 button and turn the M knob to
set End frame; press F2 button and turn the M knob to select the interval between
recorded frames.
(5) Press H4 button, choose whether to refresh the wave when recording.
(6) Press H5 button to start recording.
(7) Press H2 button. In the Mode menu, press F3 button to enter the Playback mode.
Set the frame range and Playmode .Then, press H5 button to play.
(8) To save the wave recorded, press H2 button. In the Mode menu, press F4 button
to choose Storage, then set the range of frames to store, press H4 button to save.
(9) To load the waveform from the internal memory, press Load, and then enter
playback mode to analyze the wave.
When storage medium is External, Wave Record contains two modes: OFF,
Record.

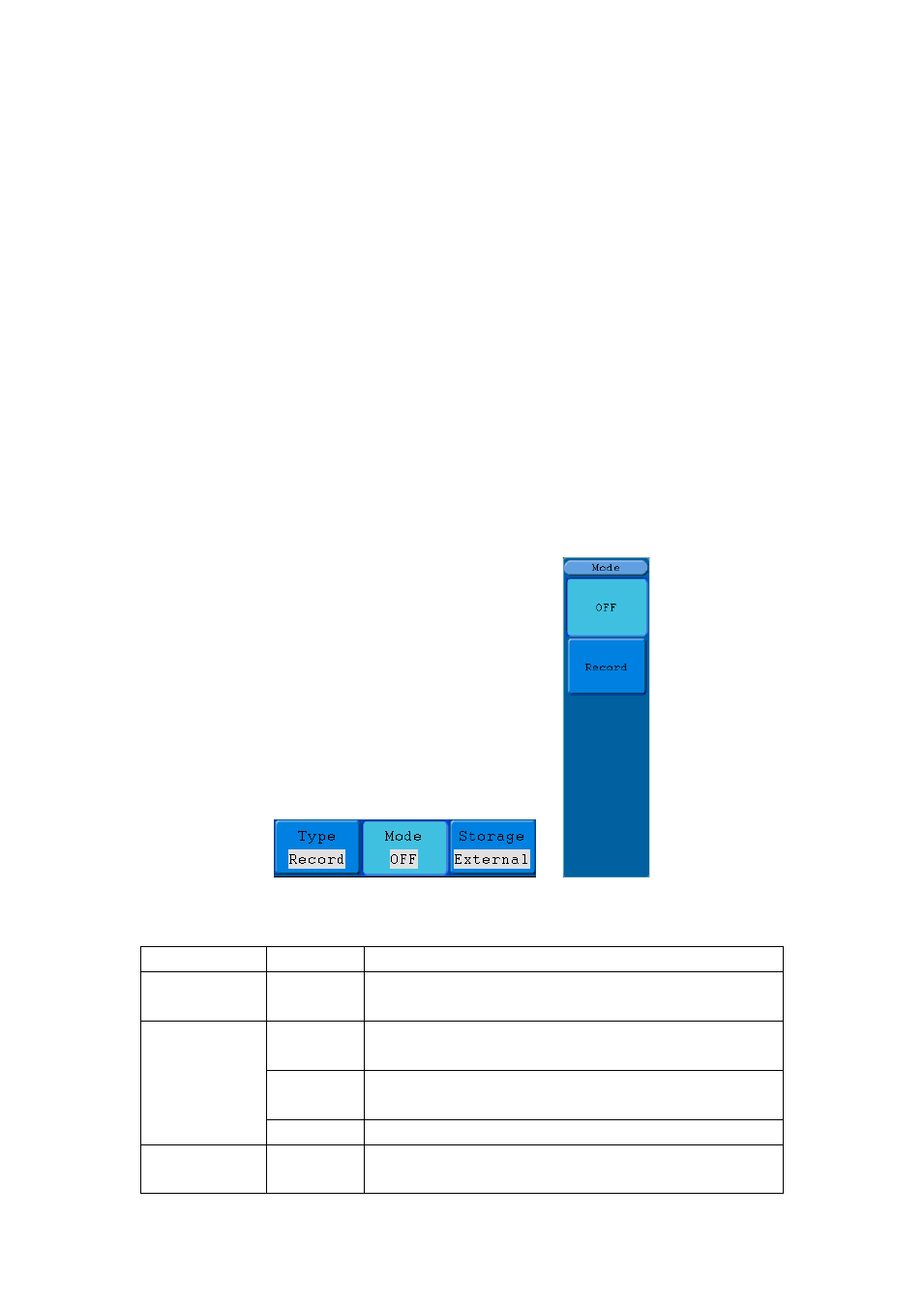

Figure 5-53: Menu of Wave Record to external
Record to external menu shows as follows:
Menu Setting Instruction
Mode
OFF
Record
Close wave record function
Set record menu
Record mode
FrameSet
End frame Turn the M knob to select the number of frames to
record (1～1000)
Interval
Turn the M knob to select the interval between
recorded frames (1ms～1000s)
Infinity Record infinitely until the storage medium is full
Refresh
ON
OFF
Refresh wave during recording
Stop refreshing
