1.5 RS485 BAUD RATE, BIASING AND TERMINATION
1.5.1 Baud Rate
Every ONICON System-10 is individually programmed at the factory with application
specific data provided by the customer during the process of ordering the Btu meter. This
normally includes the Baud rate setting. If the Baud rate was provided, the Btu meter will
be configured to operate at the specified rate. The available Baud rate settings are listed in
the table below.
If the Baud rate setting was not provided to ONICON, the Btu meter will be configured
to 9600.

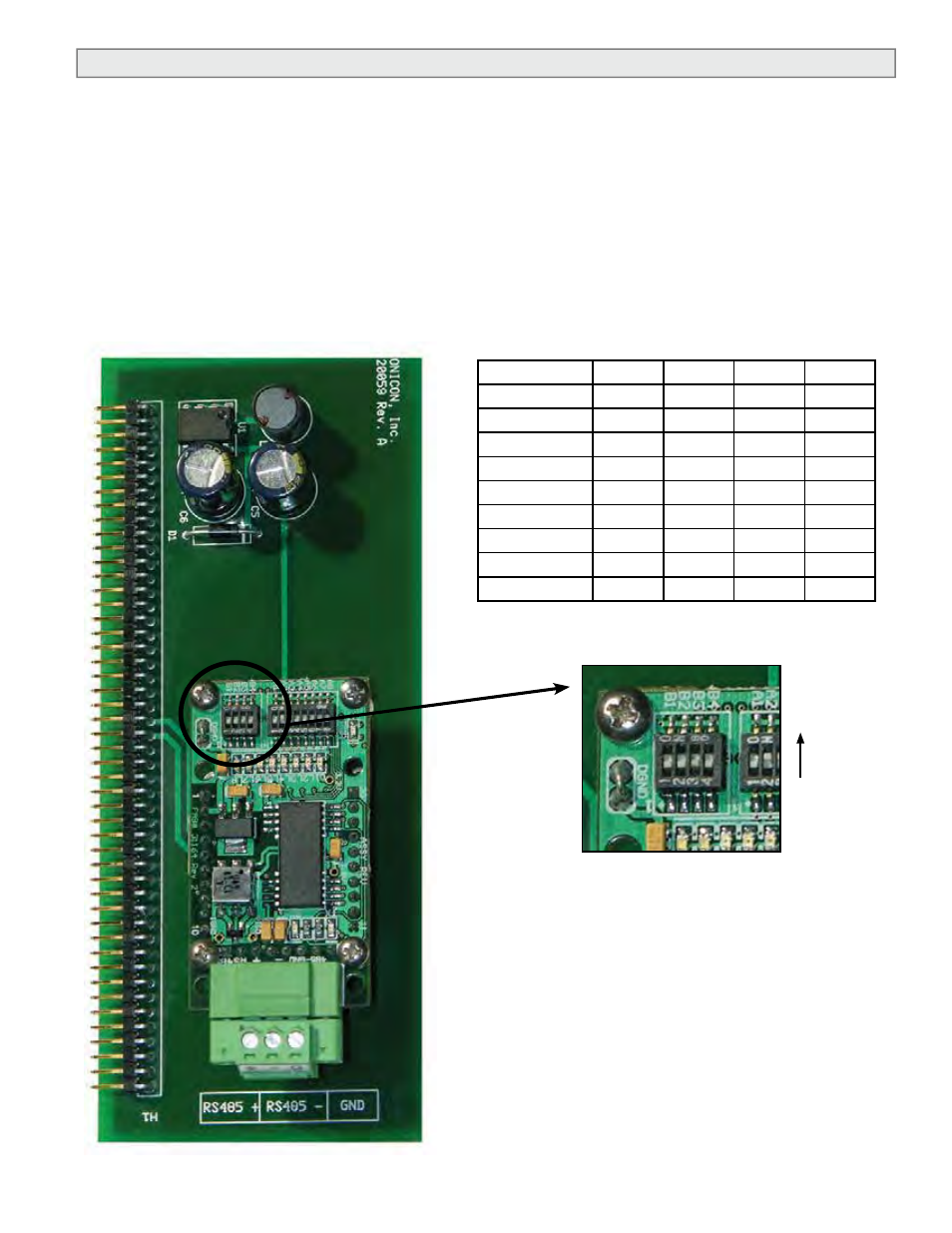

The Baud rate setting can be manually changed in the field. The drawing and table
below show the Baud rate dipswitch settings.
BAUD Rate
B1
B2
B3
B4
9600
OFF
OFF
OFF
OFF
1200
ON
OFF
OFF
OFF
2400
ON
ON
OFF
OFF
4800
ON
OFF
ON
OFF
9600
ON
ON
ON
OFF
19200
ON
OFF
OFF
ON
38400
ON
ON
OFF
ON
57600
ON
OFF
ON
ON
115200
ON
ON
ON
ON
Baud Rate Dip Switches
ON
