Ohio Steel 4048P 12.5 Cu Ft Poly Dump Cart User Manual
4048p, 5 cubic foot heaped dump cart assembly manual, Full two-year warranty
Hardware
Bag
22
4048P
12.5 CUBIC FOOT
HEAPED DUMP CART
ASSEMBLY MANUAL
CAUTION:
READ AND FOLLOW ALL SAFETY
RULES AND INSTRUCTIONS
BEFORE USING THIS EQUIPMENT
Ohio Steel Industries
Columbus, OH 43224 U.S.A.
Visit our website: www.ohiosteel.com
For missing parts or questions
Call 1-800-652-2321
FULL TWO-YEAR WARRANTY
If this product fails due to a defect in material or workmanship within two years from the date
of purchase, Ohio Steel will at its option repair or replace it free of charge. This warranty
excludes Tires and Wheels which are expendable and become worn during normal use.
Proof of purchase required
.
This warranty does not cover:
· Repairs necessary because of operator abuse or negligence.
· Equipment use for commercial or rental purposes.
Contact Ohio Steel (800-652-2321) to arrange for product repair, or return this product to
place of purchase for replacement.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state. This Warranty applies only while this product is in use in the United States.
REV-NC
7
1
16
4
9
6
11
18
5
8
12
3
11
19
10
17
15
14
2
12
9
7
8

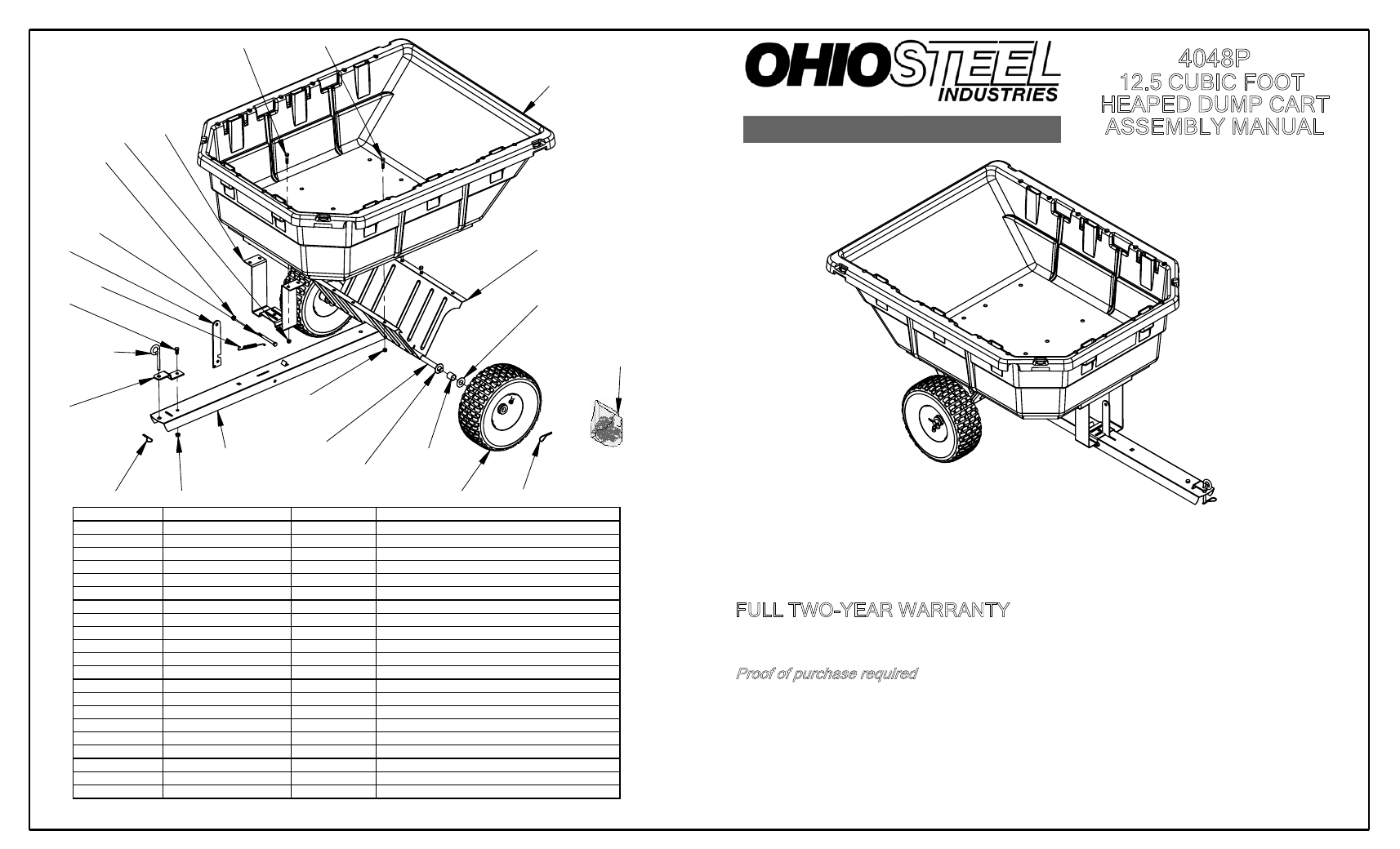

4048P
REPAIR PARTS LIST
REF. NO.
PART NO.
AMT.
DESCRIPTION
1
4048P-01
1
Body
2
55-9A
1
Front Support
3
55-12A
1
Hitch Assembly
4
4048P-04
1
Axle Holder
5
55-17
1
Axle #1
6
4048P-06
2
Wheel 15 X 6.00 - 6
7
STDBH3131500
12
5/16"-18 x 1-1/2" Hex Head Bolt
8
STDNK313
12
5/16"-18 Keps Nut
9
STDWA750T
4
3/4" Axle Washer
10
STDHP375
1
Hitch Pin
11
STDPH7
3
Hairpin Cotter
12
STDNC375
2
3/8"-16 Lock Nut
14
55-13A
1
Latch Bar
15
55-15A
1
Latch Spring
16
STDBH3754000
1
Bolt 3/8"-16 x 4" Hex Head
17
STDBH3750375
1
Bolt 3/8"-16 X 3/4" Hex Head
18
4048P-18
2
HDPE Axle Spacer
19
55-16A
1
Hitch Bracket
20
4048P-35
1
Decal
21
4048P-21
1
User Guide
22
4048P-22
1
Hardware Bag
