Ohio Steel 3048HKD 12 Cu Ft Steel Dump Cart User Manual
3048hkd, 12 cubic foot heaped dump cart assembly manual, Full two-year warranty
CAUTION:
READ AND FOLLOW
ALL SAFETY RULES
AND INSTRUCTIONS
BEFORE USING
THIS EQUIPMENT
3048HKD
12 CUBIC FOOT
HEAPED DUMP CART
ASSEMBLY MANUAL
FULL TWO-YEAR WARRANTY
If this product fails due to a defect in material or workmanship within two years from the date
of purchase, Ohio Steel will at its option repair or replace it free of charge. This warranty
excludes Tires and Wheels which are expendable and become worn during normal use.
Proof of purchase required
.
This warranty does not cover:
· Repairs necessary because of operator abuse or negligence.
· Equipment use for commercial or rental purposes.
Contact Ohio Steel to arrange for product repair, or return this product to place of purchase
for replacement.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state. This Warranty applies only while this product is in use in the United
States.
Ohio Steel Industries
Columbus, OH 43224 U.S.A.
Visit our website: www.ohiosteel.com
For missing parts or questions
Call 1-800-652-2321
1
2
3
4
5
7
8
9
11
12
13
14
16
17
18
19
19
21
23
23
25
25
25
25
28
28K
30
31
31
33
28K

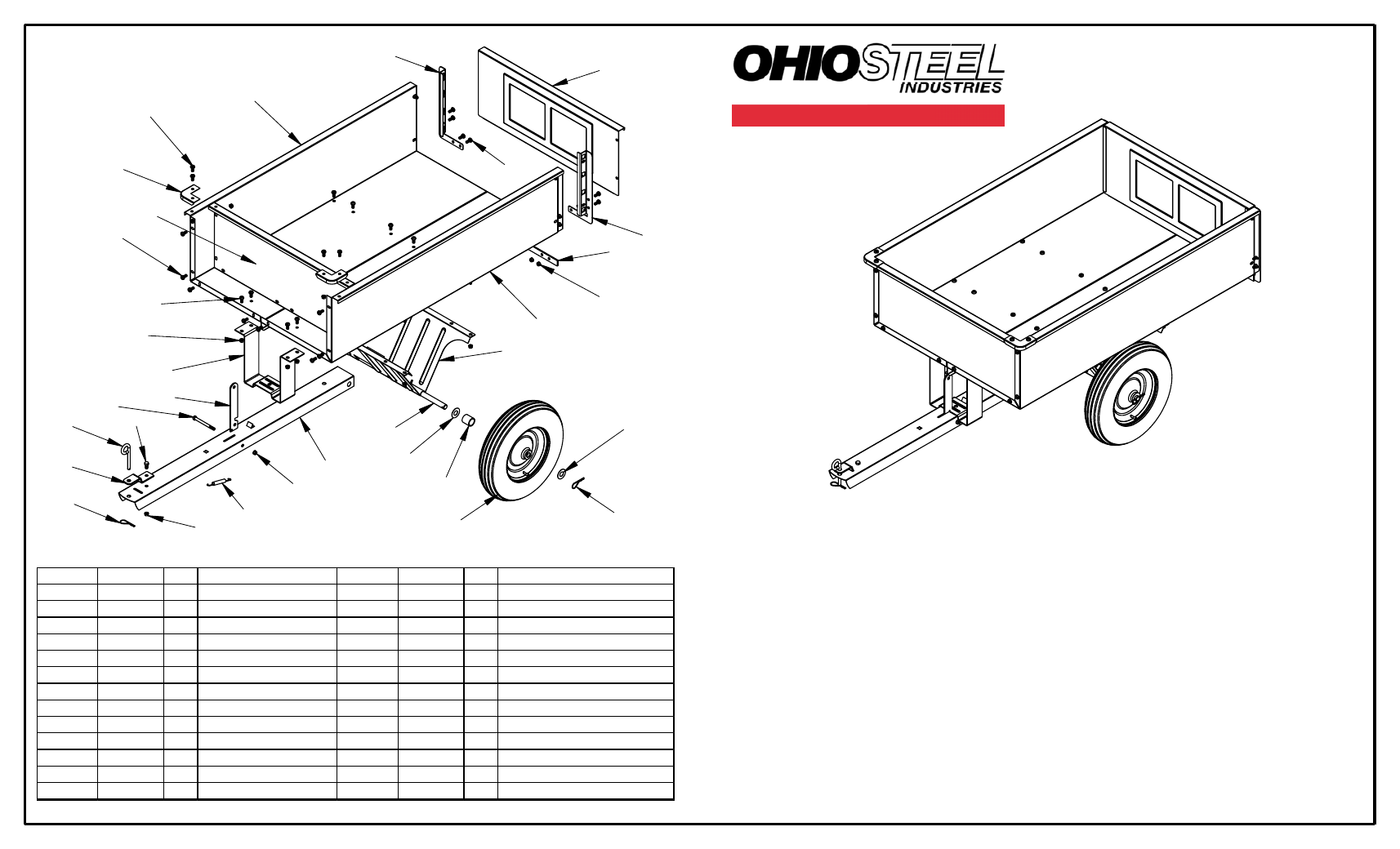

3048HKD
REPAIR PART LIST
15
REV-G
REF. NO. PART NO. QTY. DESCRIPTION
REF. NO. PART NO. QTY. DESCRIPTION
1
5-1
1 Body half - Right
16
5-16A
1 Hitch bracket
2
5-2
1 Body half - Left
17
5-17
1 Axle
3
5-3
1 Front gate
18
5-18
2 HDPE spacer
4
5-4
2 Corner
19
5-19
4 Axle washer
5
5-5
1 Rear support bar
21
5-21
2 Wheel
7
5-7A
1 Gate retainer - Right
23
5-23N
46 5/16"-18 keps nut
8
5-8A
1 Gate retainer - Left
25
5-25
46 5/16"-18 x 3/4" pan head
9
5-9A
1 Front Support
28
5-28
1 3/8"-16 x 3/4" hex head
11
5-11
1 Axle Holder
28K
5-28K
2 3/8"-16 keps nut
12
5-12A
1 Drawbar
30
5-30
1 Hitch pin
13
5-13A
1 Latch post bar
31
5-31
3 Hair pin cotter
14
5-14A
1 Latch bolt
33
5-33
1 Tail gate
15
5-15A
1 Latch spring
34
5-34
1 Assembly manual
