Ohio Steel 3448HKD 16 Cu Ft Steel Dump Cart - Manual

3448HKD
16 CUBIC FOOT
HEAPED DUMP CART
ASSEMBLY MANUAL
3448HKD

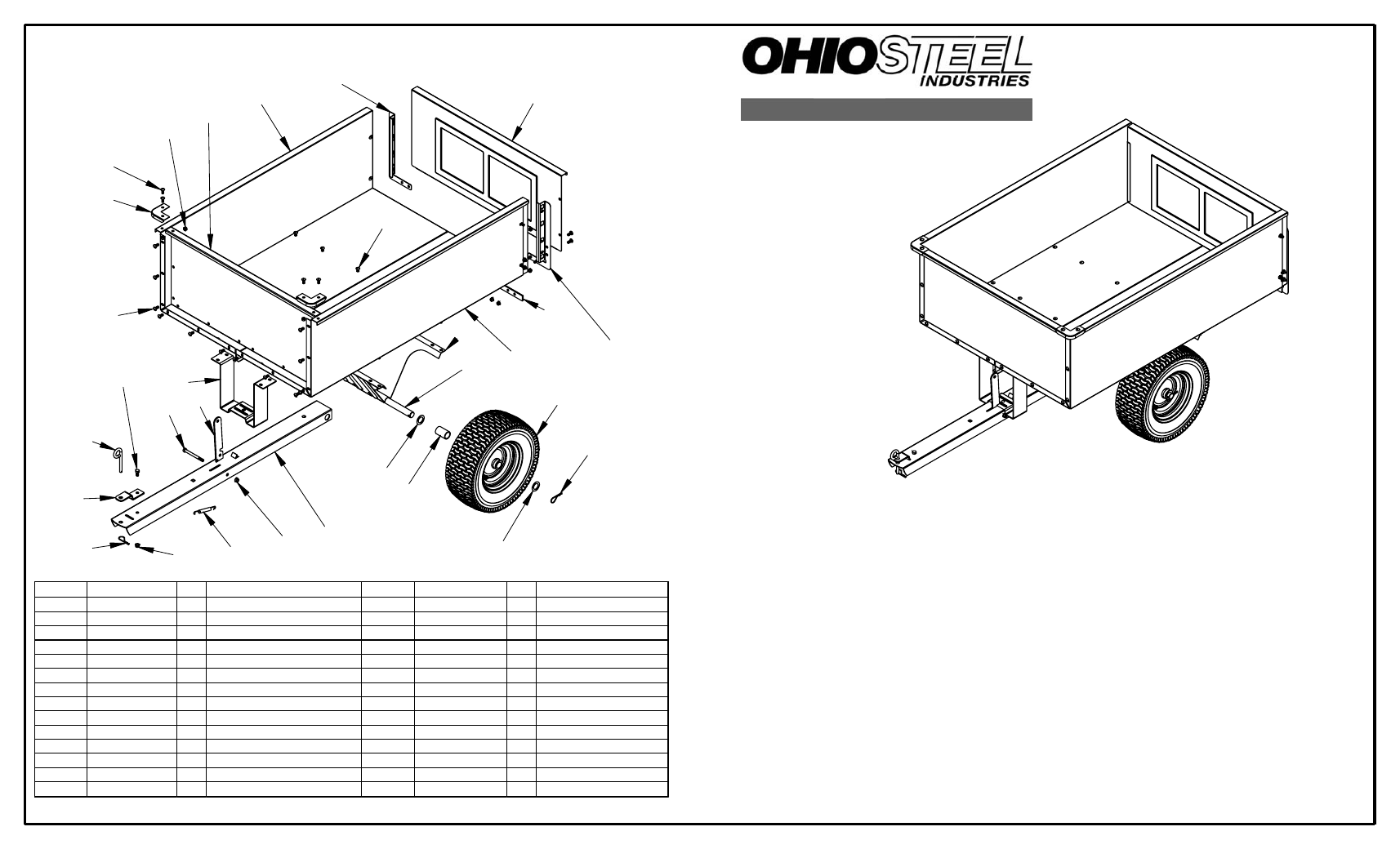

REPAIR PART LIST
CAUTION:
READ AND FOLLOW
ALL SAFETY RULES
AND INSTRUCTIONS
BEFORE USING
THIS EQUIPMENT
FULL TWO-YEAR WARRANTY
If this product fails due to a defect in material or workmanship within two years from the date
of purchase, Ohio Steel will at its option repair or replace it free of charge. This warranty
excludes Tires and Wheels which are expendable and become worn during normal use.
Proof of purchase required .
This warranty does not cover:
· Repairs necessary because of operator abuse or negligence.
· Equipment use for commercial or rental purposes.
Contact Ohio Steel to arrange for product repair, or return this product to place of purchase
for replacement.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state. This Warranty applies only while this product is in use in the United
States.
Ohio Steel Industries
Columbus, OH 43224 U.S.A.
Visit our website: www.ohiosteel.com
For missing parts or questions
Call 1-800-652-2321
31
29
15
29
12
16
30
28
14 13
9
25
4
25
3
23
1
7
25
6
8
5
11
19
18
19
17
31
21
2
REV-E
REF. NO. PART NO. QTY. DESCRIPTION REF. NO. PART NO. QTY. DESCRIPTION
1 262-01 1 RIGHT BODY HALF 16 26-16A 1 HITCH BRACKET
2 262-02 1 LEFT BODY HALF 17 26-17 1 AXLE
3 26-03 1 FRONT GATE 18 26-18 2 HDPE SPACER
4 55-04 2 CORNER 19 STDWA1000T 4 AXLE WASHER
5 26-05 1 REAR SUPPORT BAR 21 26-21 2 WHEEL
6 262-06 1 TAIL GATE 23 STDNK313 50 5/16"-18 KEPS NUT
7 55-7A 1 GATE RETAINER RIGHT 25 STDBP3130750 50 5/16"-18 x 3/4 PAN HEAD
8 55-8A 2 GATE RETAINER LEFT 28 STDBH3750750 1 3/8"-16 X 3/4" HEX HEAD
9 55-9A 1 FRONT SUPPORT 29 STDNC375 2 3/8"-16 LOCK NUT
11 26-11 1 AXLE HOLDER 30 STDHP375 1 HITCH PIN
12 26-12A 1 HITCH ASSEMBLY 31 STDPH7 3 HAIR PIN
13 55-13A 1 LATCH POST BAR 36 262-36 1 ASSEMBLY MANUAL
14 STDBH3754000 1 LATCH BOLT 3/8"-16 x 4" HEX 41 262-BB 1 HARDWARE BAG
15 55-15A 1 LATCH SPRING
