AirFog Installation Manual | 41
Control Panel Exploded View & Spare Parts

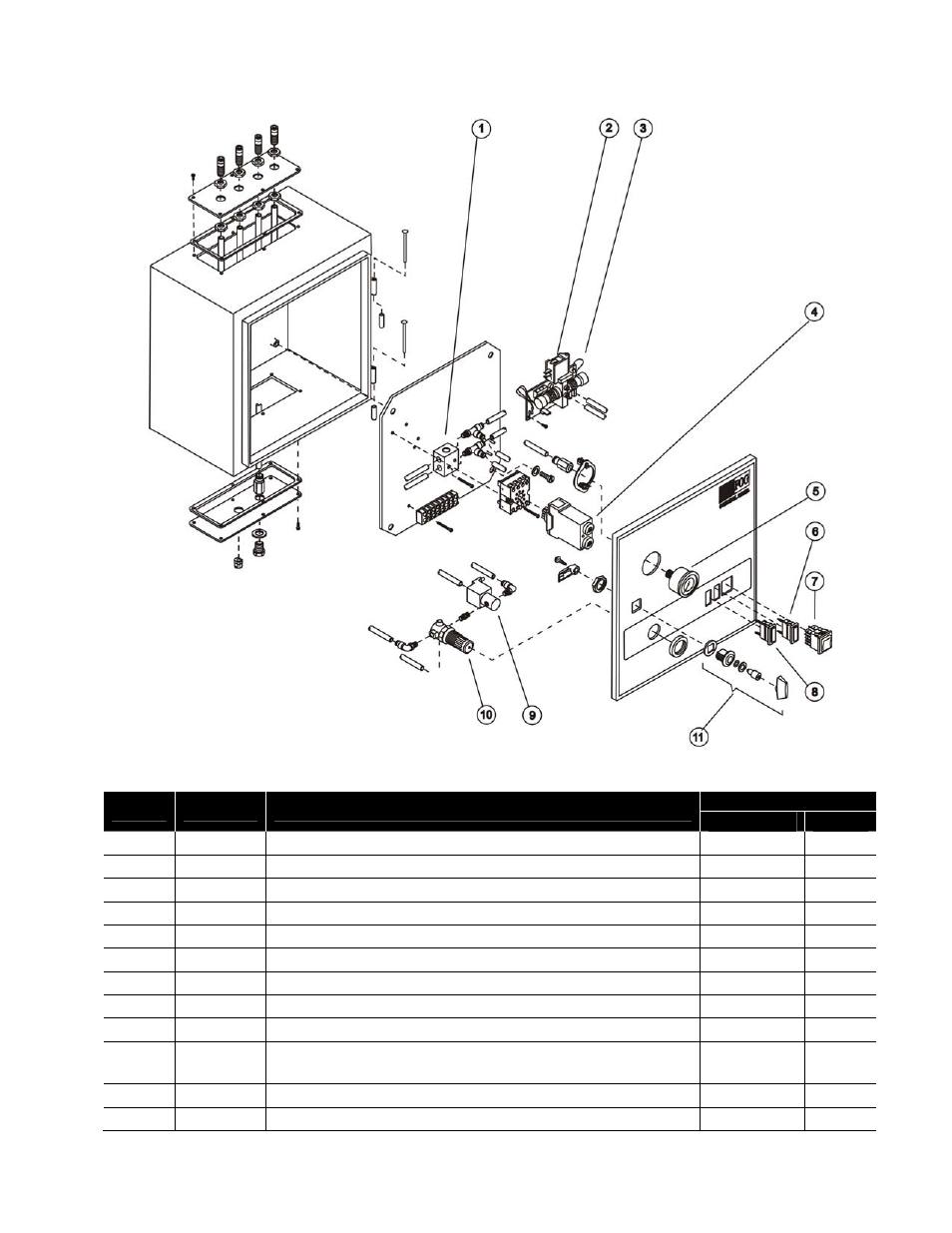

Figure 30: Control Panel Exploded View
Item # Part # Description
Qty
MINI I/II AFE
1 1600027 Valve 4-way 24 Vac Solenoid 0 1
2 1603081 Pressure Switch, Screw-on (Modulating Contol Panel Only) 0 1
3 1506260 E/P Converter Module (Modulating Control Panel Only) 0 1
4 1603050 Repeat Cycle Timer 1 1
5 1603200 Pressure Gauge Panel MTG Bars 1 1
6 1493096 Lamp Green Indicator 1 1
7 1453001 Switch On/Off 1 1
8 1603023 Lamp Amber Indicator 1 1
9a 1603063 2-way solenoid valve, 24 Vac (AFE mini models only) 1 0
9b 1603064
3-way solenoid valve, 24 Vac Replacement Kit (control
panel only)
0 1
10 1603001 Air Regulator Panel Mount 1 1
11 1853104 Lock c/w 2 keys 1 1
