Rear view vp100/20 – Meinberg VP100 20 User Manual
Page 12
12

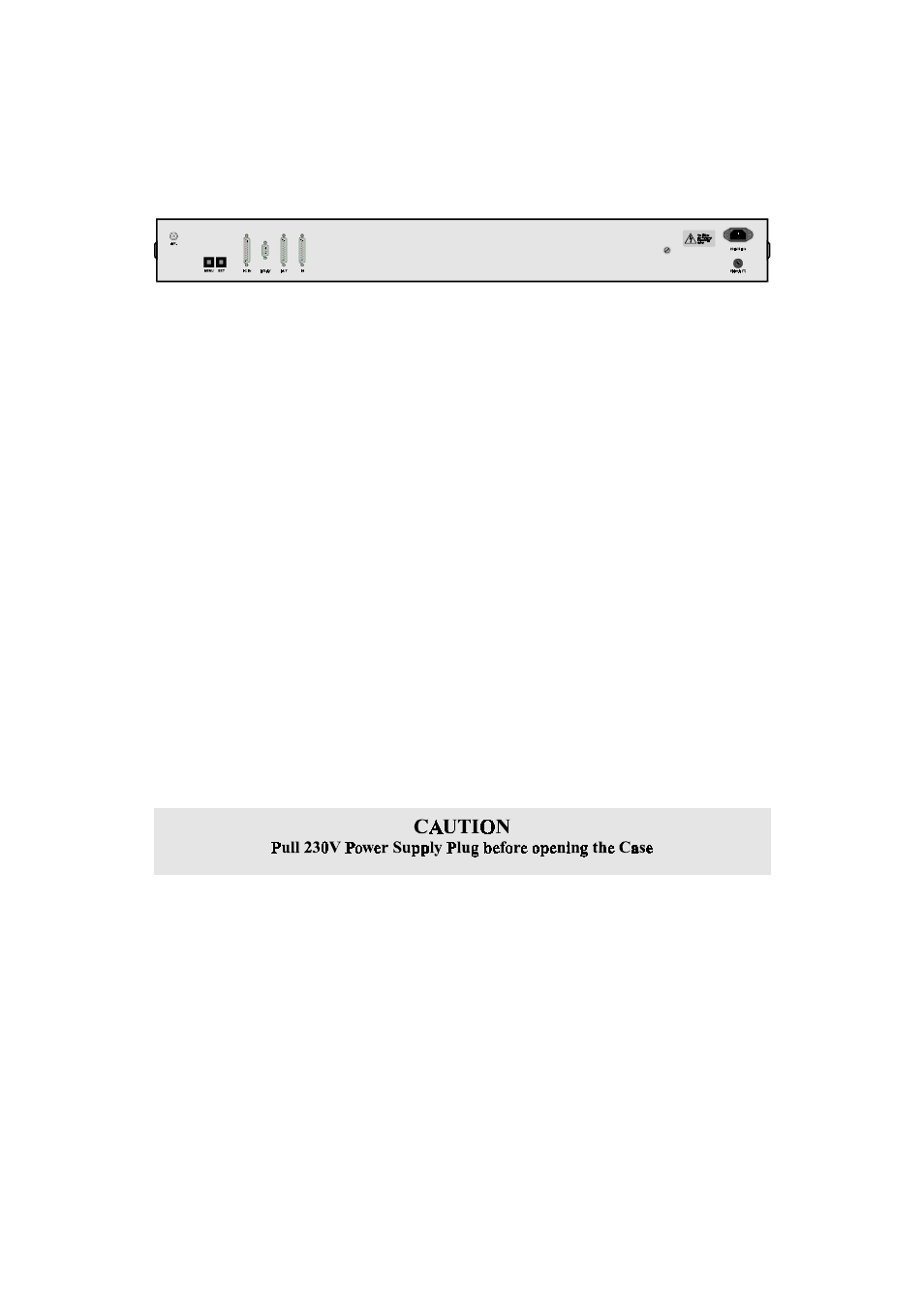

Rear View VP100/20
Fig.2:
Rear Panel View
PC IN
Input for programming the relay or generating a text message shown
on the Display of the VP100/20
RELAY
Programmable relay
IN
Input for preconnected clock or master clock (time strings or pulses
per minute)
OUT
Output (time strings or pulses per minute) for further VP100/20s or
other equivalent Displays.
ANT
Antenna input for external ferrite antenna
Power
Power supply cord (85-264VAC / 120-375VDC)
FUSE
Fuse (T/500mA)
MENU/SET
Buttons to configure the VP100/20
