17
2. Installation and Connections

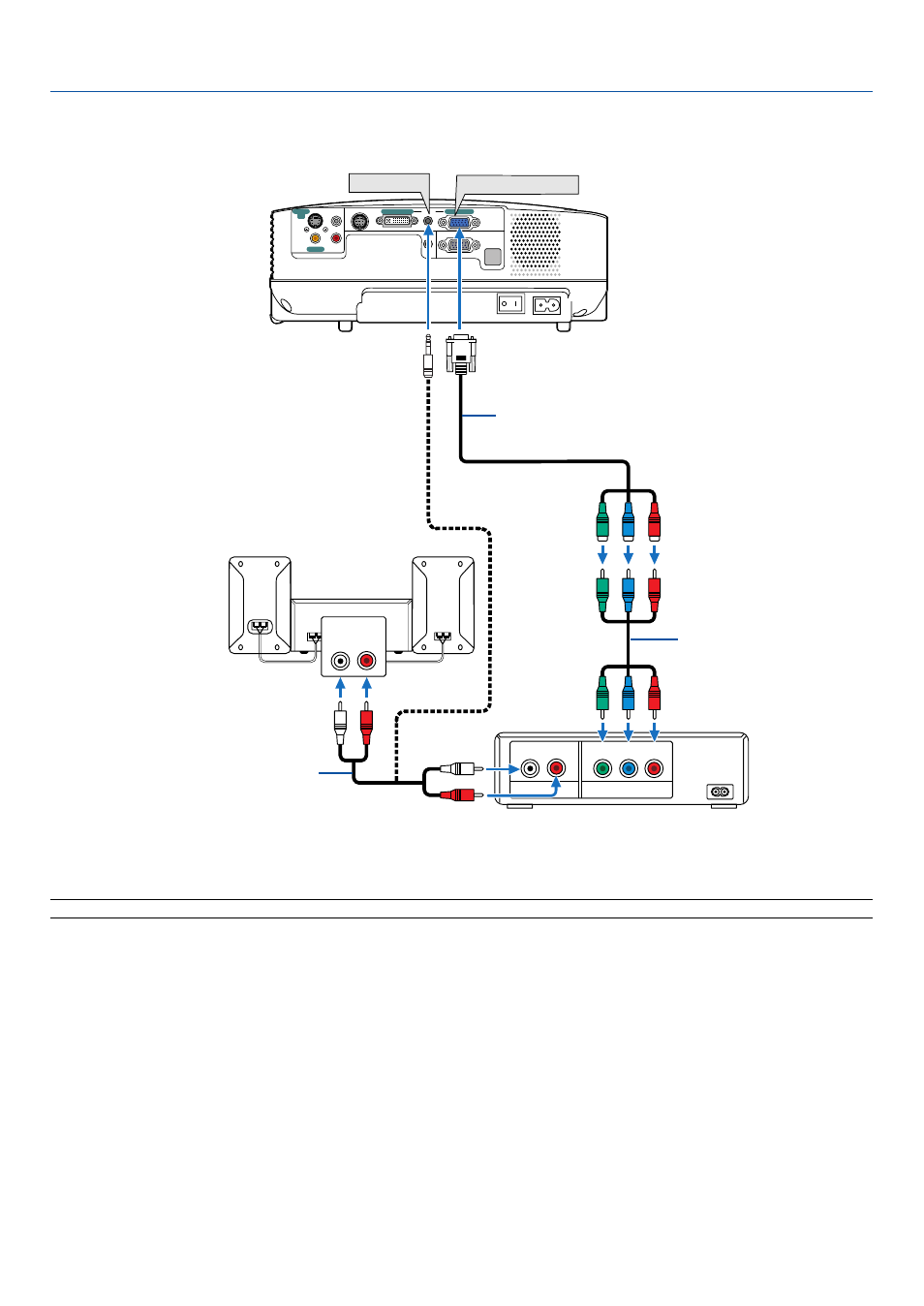

Connecting Your DVD Player with Component Output
A component signal will be automatically displayed. If not, from the menu, select [Setup]
→ [Options] → [Signal
Select]
→ [Computer 1], and then place a check mark in the Component radio button.
NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements.
AUDIO IN
L R
AUDIO OUT
L R
Component
Y Cb Cr
AUDIO OUT
AUDIO IN
MONITOR OUT (COMP 1)
COMPUTER 1 IN COMPUTER 2 (DVI-I) IN
AUDIO IN
S-VIDEO
IN
VIDEO IN
PC CTRL L
R
COMPUTER 1 IN AUDIO IN
DVD player
Audio Equipment
Audio cable (not supplied)
15-pin - to - RCA (female) ן 3 cable
adapter (ADP-CV1E)
Component video RCA
ן
3
cable (not supplied)
