6
1. Introduction
AUDIO OUT
AUDIO IN
MONITOR OUT (COMP 1)
COMPUTER 1 IN COMPUTER 2 (DVI-I) IN
AUDIO IN
S-VIDEO
IN
VIDEO IN
PC CTRL L
R
1 9 8 5 2
3 4 7 6

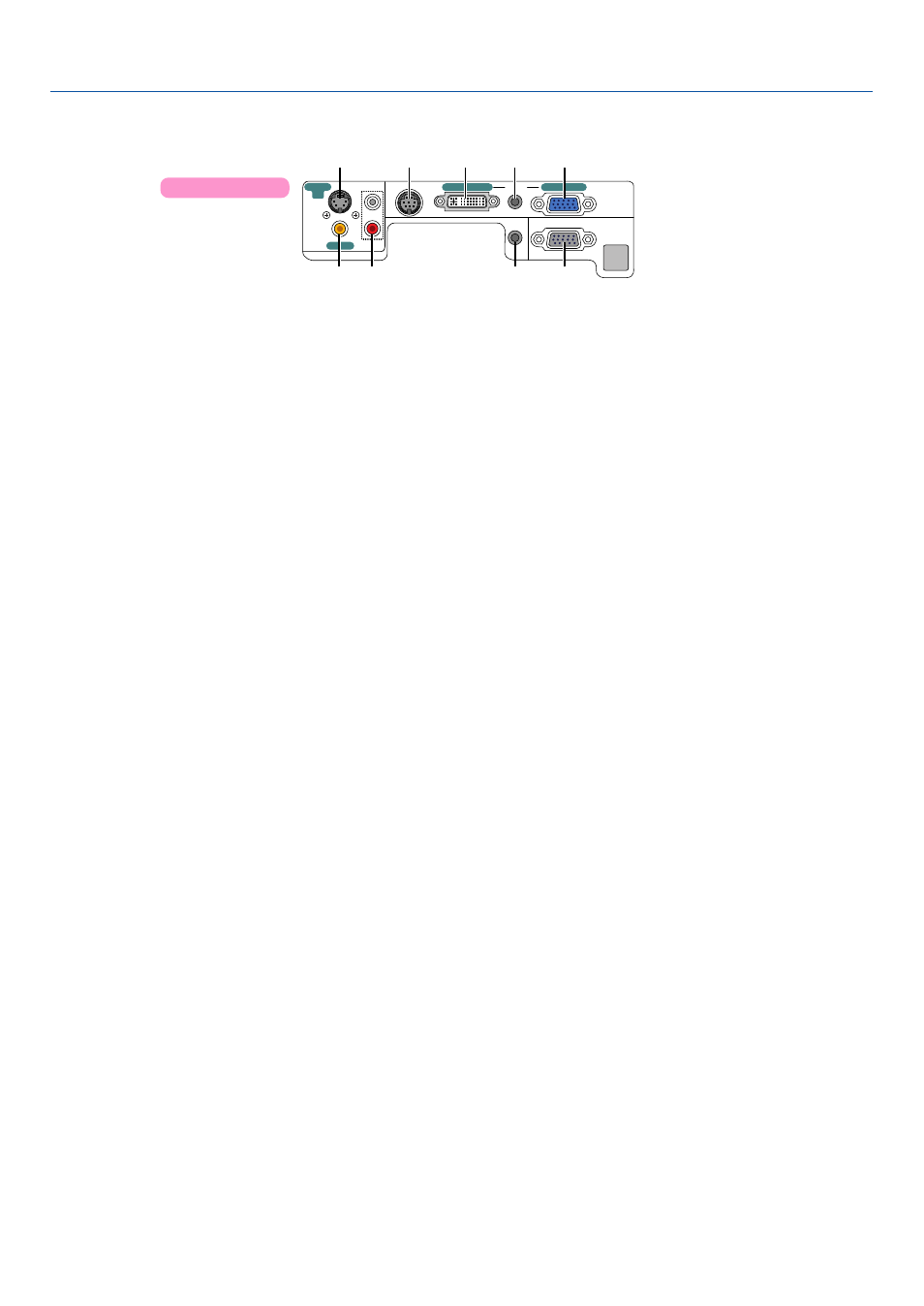

Terminal Panel Features
1. COMPUTER 1 IN/ Component Input Connector
(Mini D-Sub 15 Pin)
(
→page
13 , 15 )
2. AUDIO IN Mini Jack (Stereo Mini) (
→page
13 , 14 , 17 )
3. AUDIO OUT Mini Jack (Stereo Mini) (
→page
16 )
4. MONITOR OUT Connector (Mini D-Sub 15 Pin)
( →page 16 )
5. S-VIDEO IN Connector (Mini DIN 4 Pin)
(
→page
18 )
6. VIDEO IN Connector (RCA) (
→page
18 )
7. AUDIO Input Jacks L/R (RCA) (
→page
13 , 17 , 18 )
8. PC CONTROL Port (DIN 8 Pin) ( →page 64 , 65 )
Use this port to connect a PC or control system.
This enables you to control the projector using serial
communication protocol. If you are writing your own
program, typical PC control codes are on page
64 .
9. COMPUTER 2 (DVI-I) IN (DVI-I 29 Pin) (
→page
14 , 15 )
8777
