Connecting an external monitor, Monitor out audio out – Dukane 8777 User Manual
Page 24
16
2. Installation and Connections

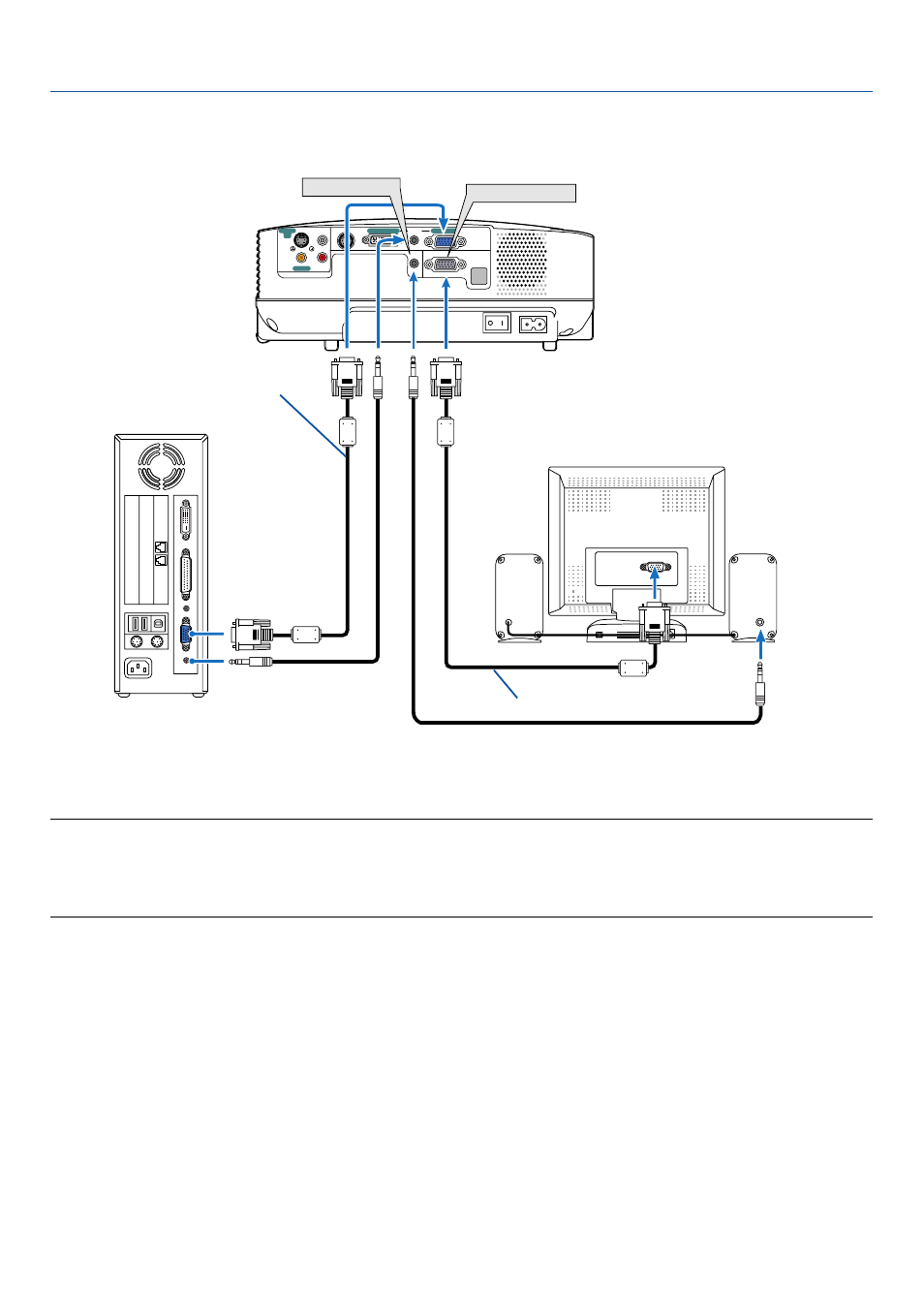

Connecting an External Monitor
You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog
image you're projecting.
NOTE:
• Daisy chain connection is not possible.
• The signal from the COMPUTER 2 IN connector cannot be output from the MONITOR OUT connector .
• When the DVI Digital signal is selected, no signals will be output from the MONITOR OUT connector .
AUDIO
IN
AUDIO OUT
AUDIO IN
MONITOR OUT (COMP 1)
COMPUTER 1 IN
COMPUTER 2 (DVI-I) IN
AUDIO IN
S-VIDEO
IN
VIDEO IN
PC CTRL
L
R
MONITOR OUT
AUDIO OUT
VGA signal cable (supplied)
VGA signal cable (not supplied)
