1 INTRODUCTION & PHYSICAL DESCRIPTION
The CIO-TERM100 and its variant CIO-TERM100/DST are 100-pin screw terminal boards intended for
use with high-density digital I/O boards. Each has two, 50-pin male IDC connectors that accept our
C50FF-# cables. The screw terminals will accept 12 to 22 AWG wire. See Figures 1-1 and 1-2 for board
connector vs. terminal strip layouts.

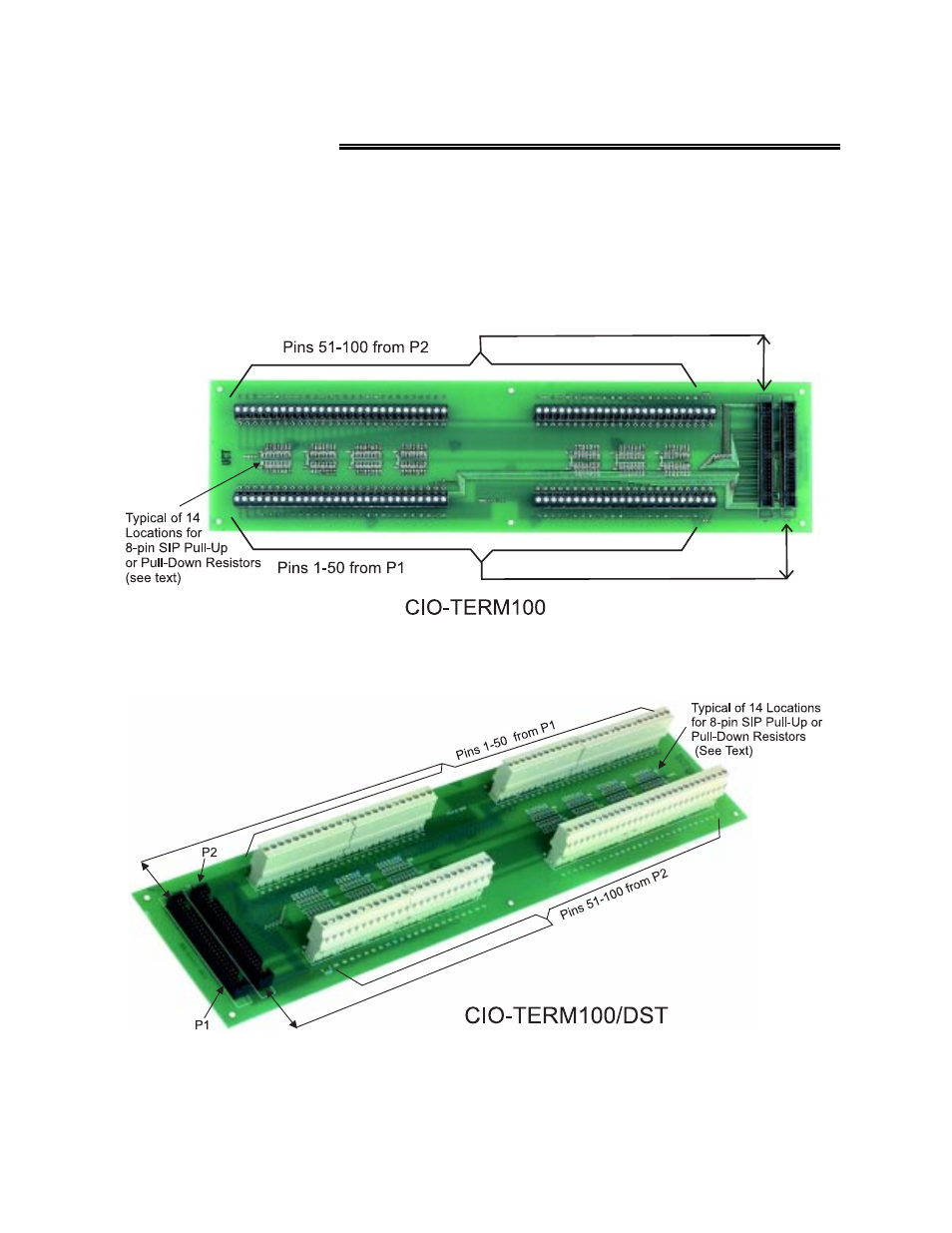

Figure 1-1. CIO-TERM100 Board Layout
Figure 1-2. CIO-TERM100/DST Board Layout
1
