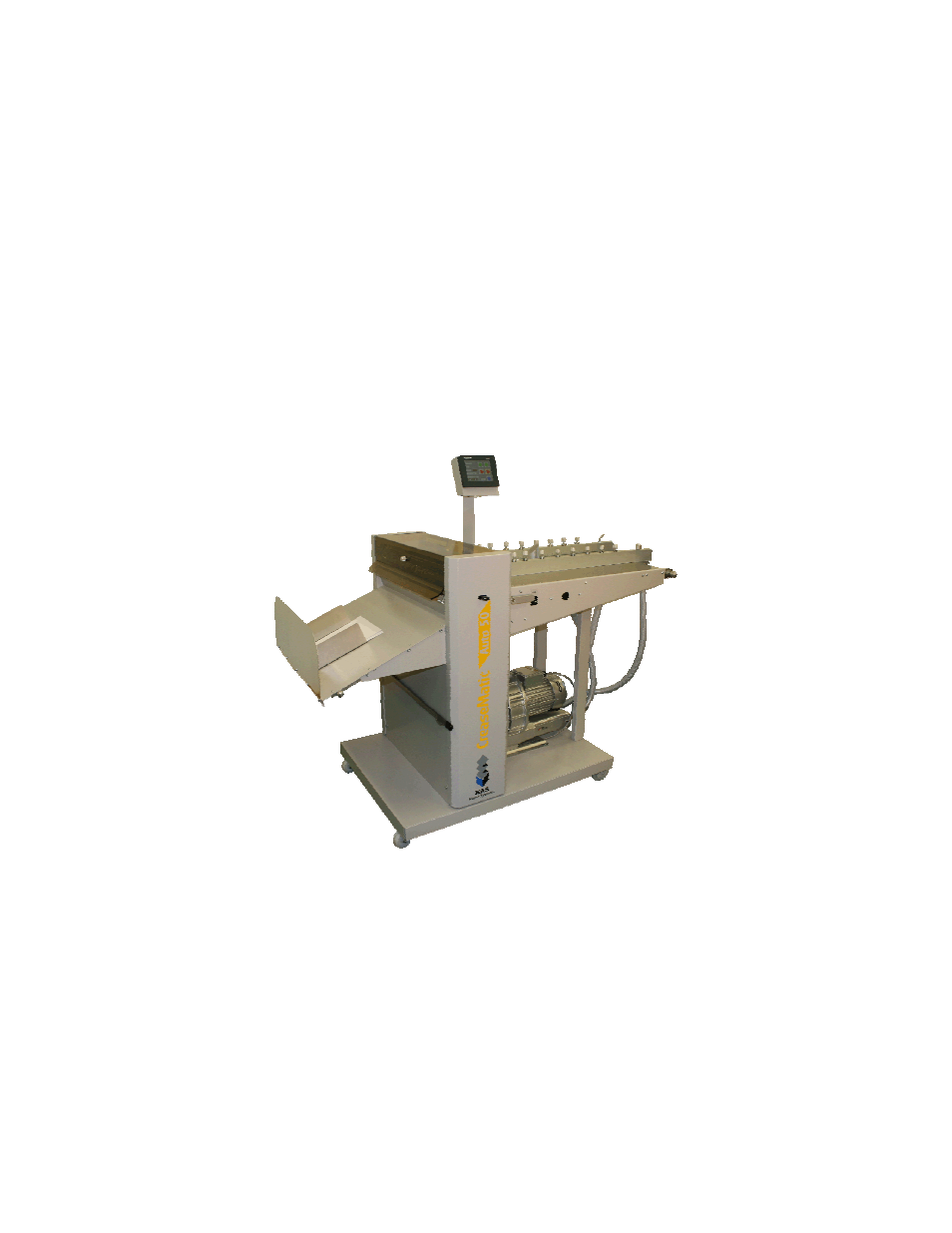

MBM Corporation CREASEMATIC AUTO 50 User Manual
Crease matic auto 50
Table of contents
Document Outline
- Contents
- Contents ……………………………………………………………………….. 2
- Machine Components …………………………………………………………. 4
- Setting Outfeed Tray …………………………………………………………… 7
- Choke Adjustment and Rotating Cylinder …………………………………….. 9
- Heavy Gauge Paper……………………………………………………………... 10
- Horizontal Adjustment………………………………………………………….. 11
- Perforation Wheels……………………………………………………………… 13
- Bottom Shaft Alterations………………………………………………………... 15
- Touch Screen Pages - Login Page…………………………………………….… 17
- Crease Setting page 01……………………………………………..……………. 20
- Service Menu ……………………………………………………………………. 22
- Status Screen……………………………………………………………………… 23
- Engineers Settings………………………………………………………………... 24
- Absolute and Incremental Programming…………………………………………. 26
- Auto 50 Problem Solving………………………………………………………… 28
- Fax: (803) 760 3814
- Introduction
- Machine Components
- Setting Outfeed Tray
- Changing Crease Matrix
- Choke Adjustment and Rotating Cylinder
- Perforation Wheels
- Compressor/Vacuum Controls
- Screen Sequence.
- Photo to Knife offset - 23.5
- Default Settings are:
- Trim Factr - -2.0
- It is intended that the initial program should be entered in Absolute. I.e. all measurements are taken from the leading edge. Then if an adjustment is required because the print registration has changed to the leading edge, select “Incremental”, then enter program mode and any change to any crease position will also affect any following crease positions by the same amount.
- Try a different matrix tool
- Set a new job with 1 crease. Turn the air off. Remove stack from feeder. Feed a single sheet several times through the Creaser. Does the crease line move? If yes:
- Side lays set too loose, feed restricted.
- Set a new job with 4 creases set at 50, 100, 150 and 200mm. Run 8 pages. Line up the leading edges together. Are the first creases in line? No:
- Feed Gate set too wide, over feeding.
- Ensure the job is feeding consistently and not overfeeding.
- Line up the first creases together. Are the second, third and forth creases in line?
- Check entry roll pressure. Release screws in roll bearings. Ensure roll is free to lift. Feed two 1” strips of 80gsm (20 lb) paper at extreme ends of roll. Tighten locking screws.
- Check tension of 180xl belt on rollers and tighten as necessary.
