Feed Gate Adjustment

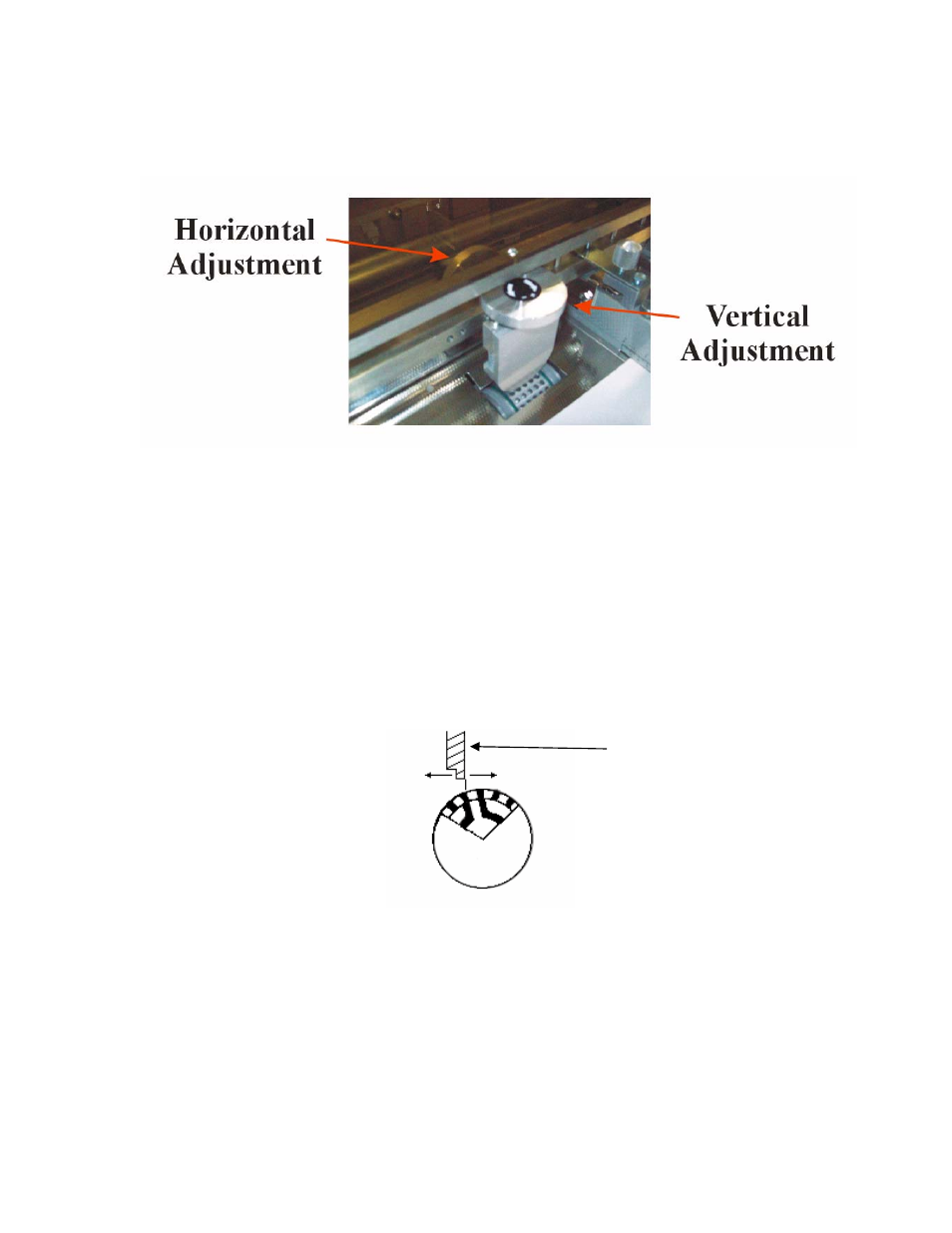

The feed gate is set to allow only one document past at a time. This is achieved by
altering the gap and position of the bottom edge of the gate to the rotating cylinder. There
are two thumbscrew adjustments. One on top, to allow the vertical movement of the gate,
and one under the top cover, to allow horizontal movement. Adjustment of the gate
carried out along with adjustment of the choke.
Horizontal Adjustment
Firstly, set the choke to the correct position for the thickness of document about to be fed.
Then, using the smaller thumbscrew, align the front face of the feed gate to the left hand
edge of the choke slot, seen inside the rotating drum.
Front Face
