5. Paper does not feed:
5.1. Ensure compressor is on.
5.2. Ensure side lay are not too tight
5.3. Ensure paper stack is “floating”.
5.4. Check gate position.
5.5. Check throttle position.
5.6. Ensure suction relay (leftmost small relay) has actuated. Relay with grey wire to
right of 11 pin. Contacts are up.
5.7. Ensure suction valve has operated. I.e. solenoid has “pulled in”
5.8. Check setting of solenoid for suction valve. Release valve body cap (two 5mm
set screws) to allow a 1mm gap between the cap and the body. Loosen the the
hex bolts holding the solenoid block to the cover plate. Pull the solenoid block
away from the valve until there is no slack in the system. Tighten hex bolts. Now
tighten set screws in cap. This last action will force the solenoid bolt out of the
solenoid.

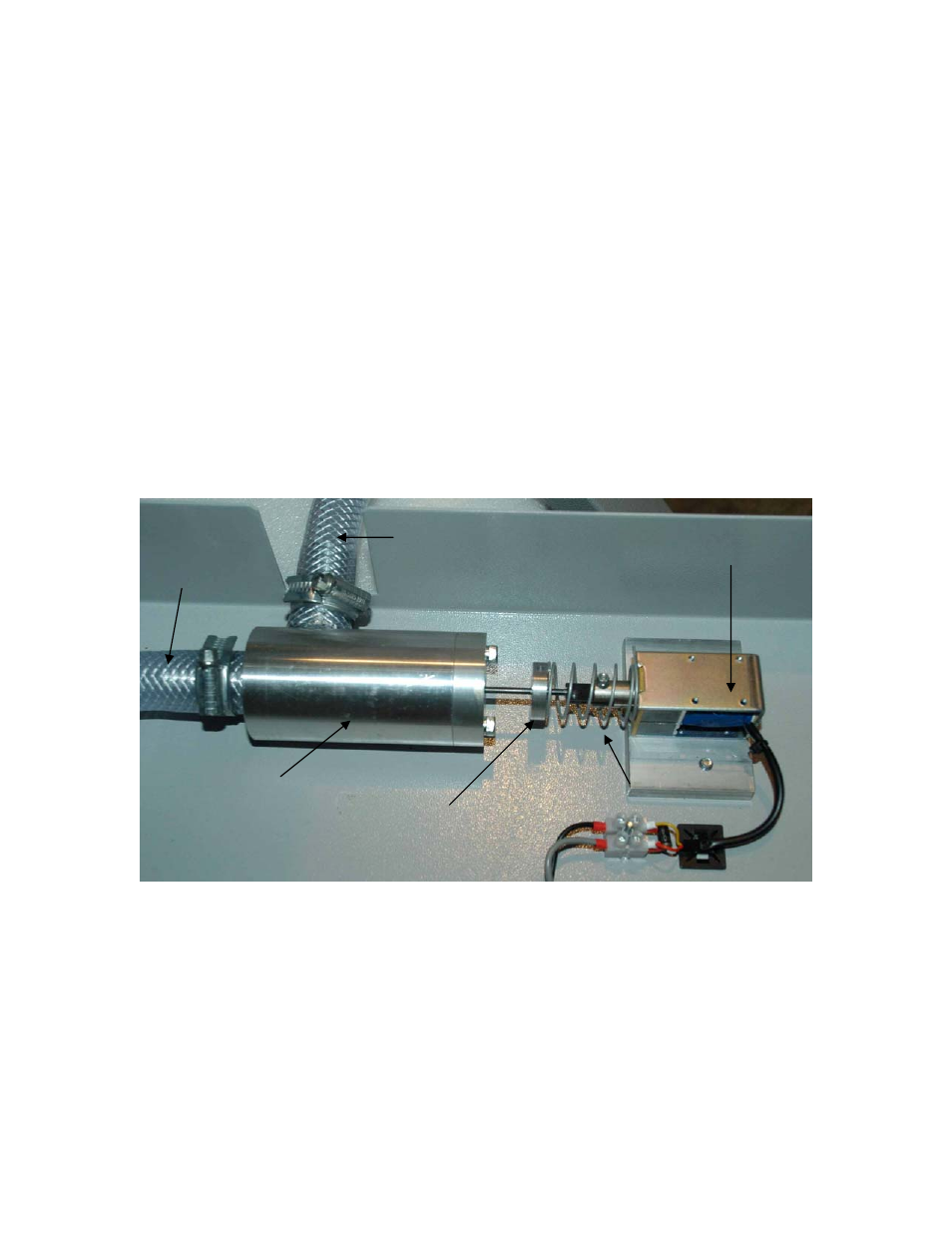

From
Compressor
Solenoid To Wheel
Spring Stop
Return Spring
Valve Body
