User Manual ES8000
14

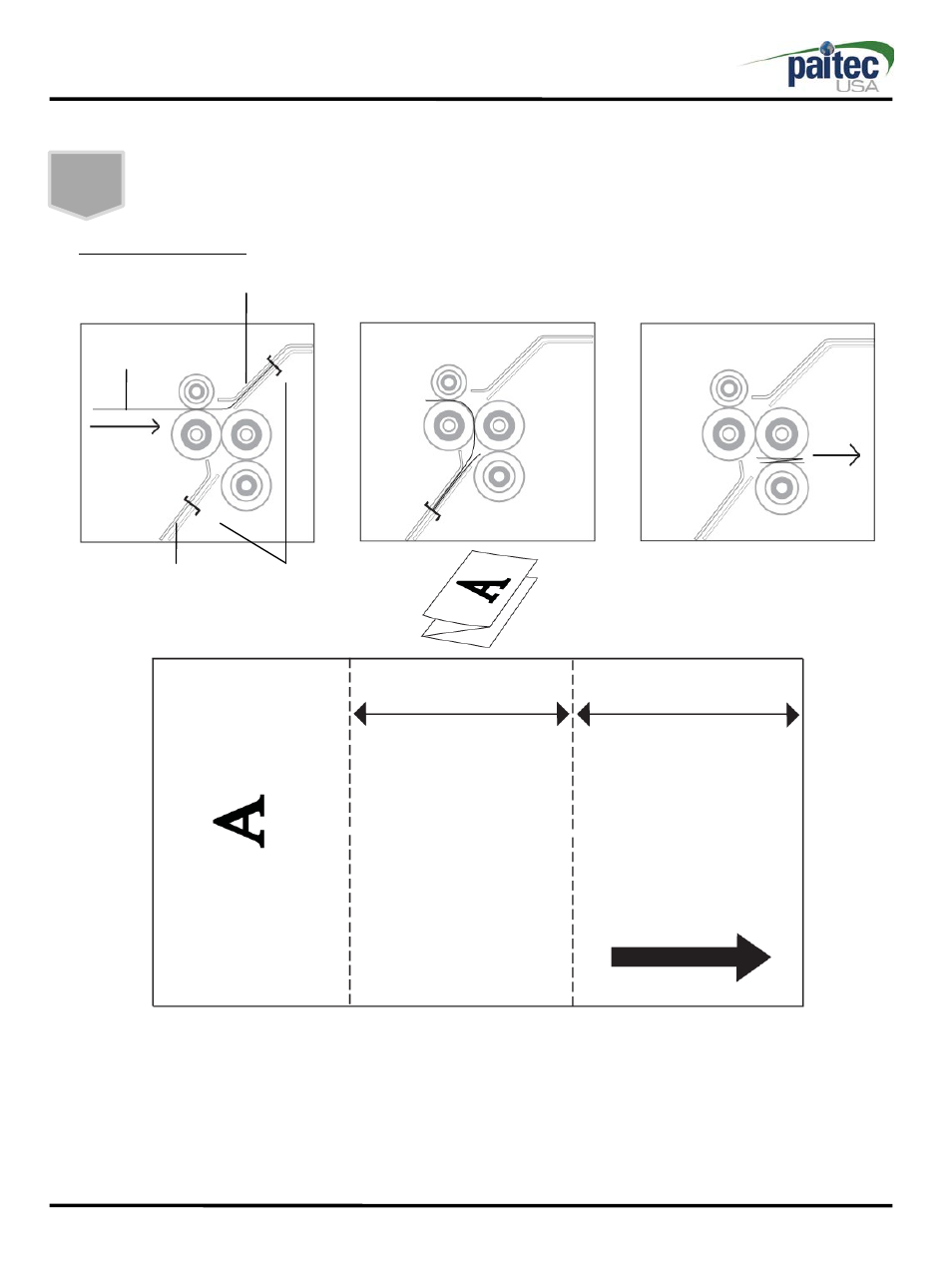

Understanding Folding Mechanism
Operation
Z-Fold Setting
Paper
In-feed
Direction
Upper Cassette
Lower Cassette Stopper
③
Second Fold
(Lower Cassette)
② ①
First Fold
(Upper Cassette)
In-feed Direction
When setting a Z-Fold, please read the following steps.
1. Measure the length from line 1 to line 2 of the form as indicated in the image above.
That measurement is the fold setting for the first (upper cassette) fold.
2. Measure the length from line 2 to line 3 of the form as indicated in the image above.
That measurement is the fold setting for the second (lower cassette) fold.
