Chapter 4
Page 128
Dish Antenna Installation
DISH Pro Wiring Diagrams

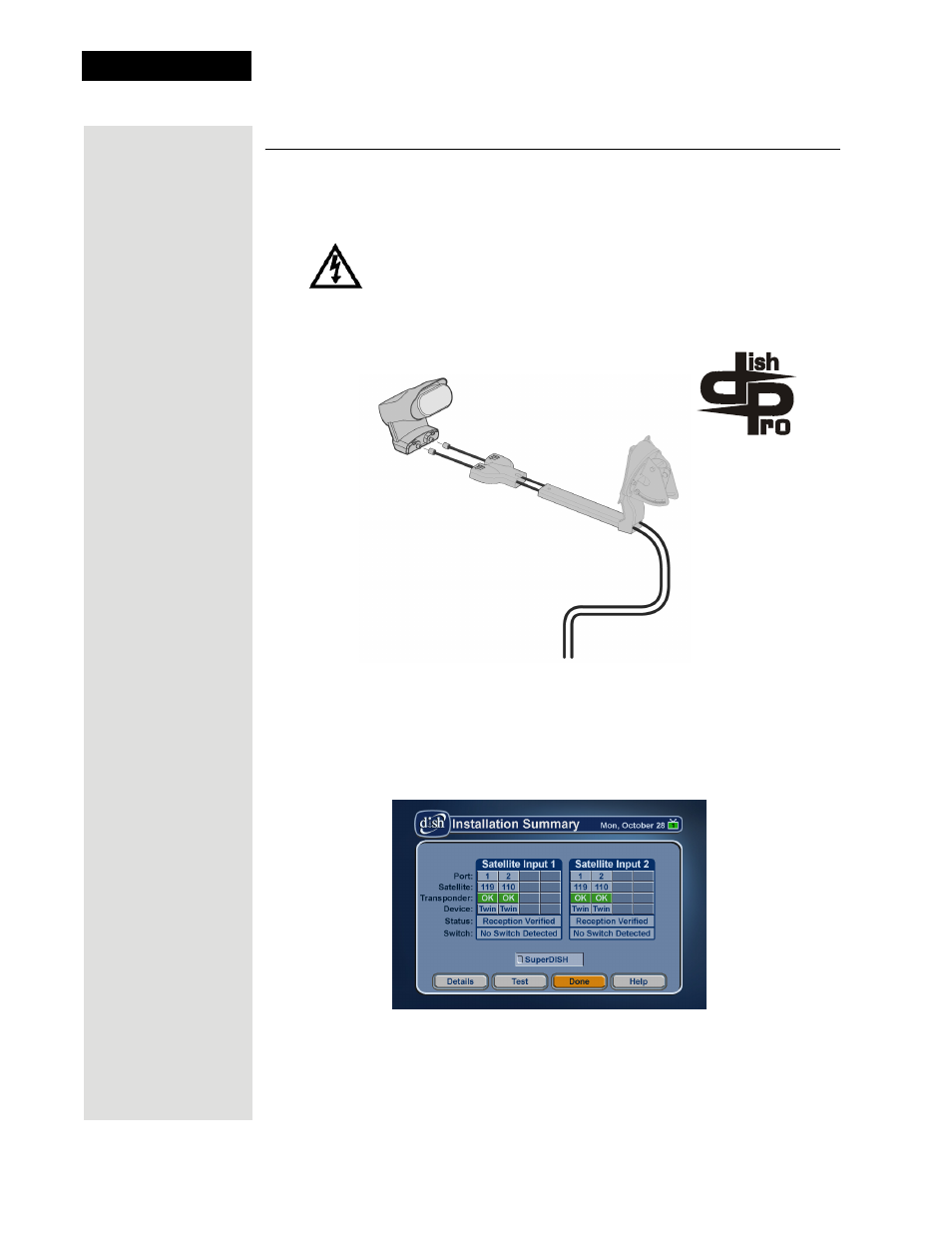

DISH 500, One DISH Pro Twin LNBF
When you set up your system following this diagram and run Check Switch the
Installation Summary screen should look similar to the one shown below.
This diagram leaves out grounding to be clear. Make sure
you ground the system per the National Electrical Code
(NEC) and all local electrical codes.
Note: Each cable
carries both the 119
and 110 signals
after you use each
receiver to check
the setup.
To two DISH Pro
Receivers or one DISH
Pro Plus Receiver
