Chapter 4
Page 126
Dish Antenna Installation
2. Select the satellite your dish will be pointed toward.
3. Select
300 under the Dish System .
4. Use the number buttons on the remote to enter your ZIP code to get the
necessary azimuth and elevation. Write these numbers down in the spaces
provided in the margin.
5. Mount the dish antenna and multi-dish switches following the mounting
instructions that came with them and the DISH Pro Wiring Diagrams starting on
page 128.
6. Connect two RG-6 cables from both S ATELLITE I N connections on the receiver
to two available ports on the switch(es).
7. Connect the LNBF on the dish antenna to LNBF port 1 on the switch(es) using
RG-6 cable.
8. Select Check Switch from the Point Dish menu. When the Check Switch
screen opens, select Retest .

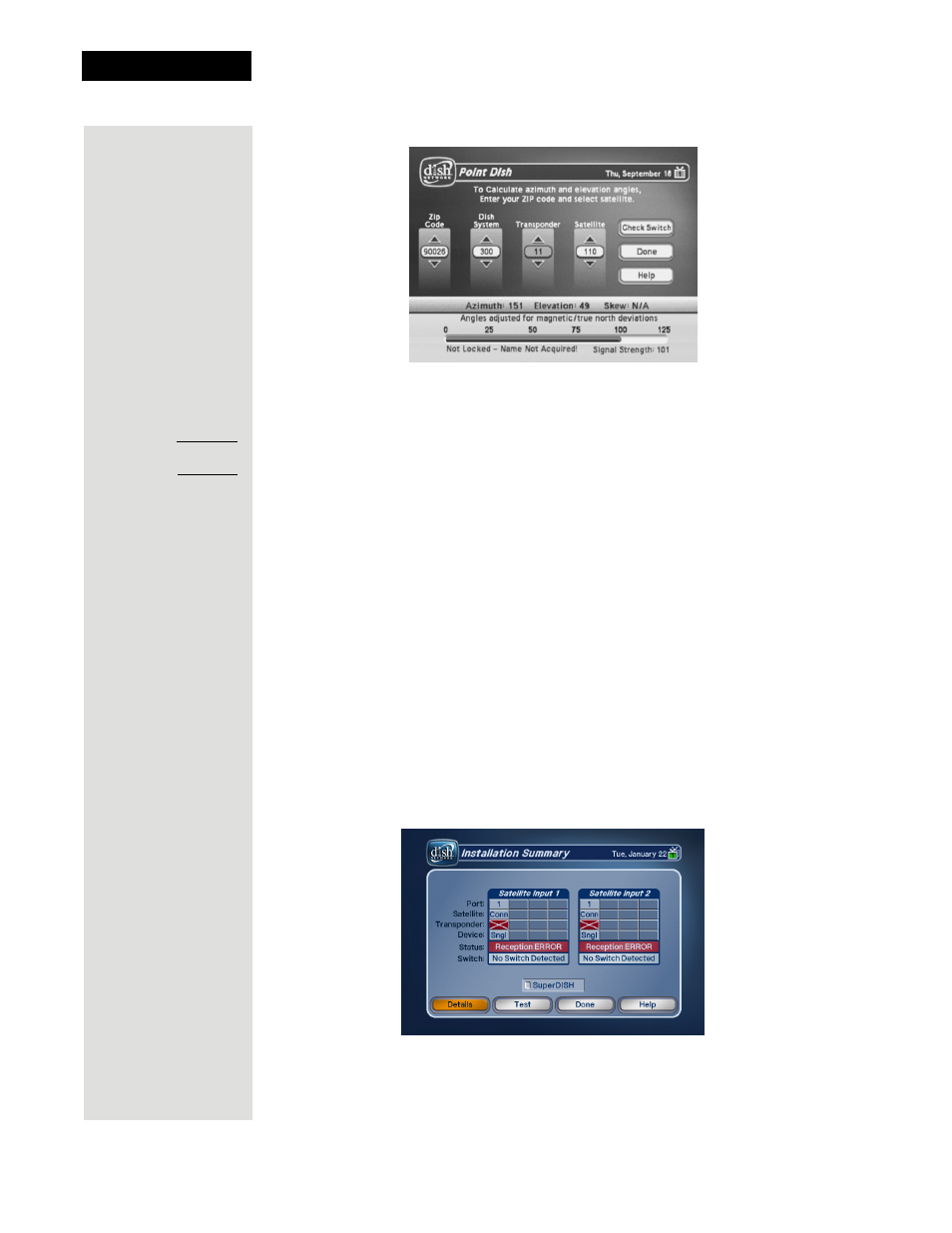

9. When Check Switch is complete, you will see an Installation Summary screen
similar to the one shown next. It will show a connection (“Conn” next to
satellite) and
Single device under 1 (Dish Input). It may also show an X on the
Transponder line. This is okay and does not mean there is a problem with the
system.
10. Press CANCEL to exit back to the Point Dish menu.
11. Point the dish for the strongest possible signal, following the instructions that
came with it.
Azimuth:
Elevation:
