Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice. Ref. W10112419C
2/12/10
Page 2 of 2

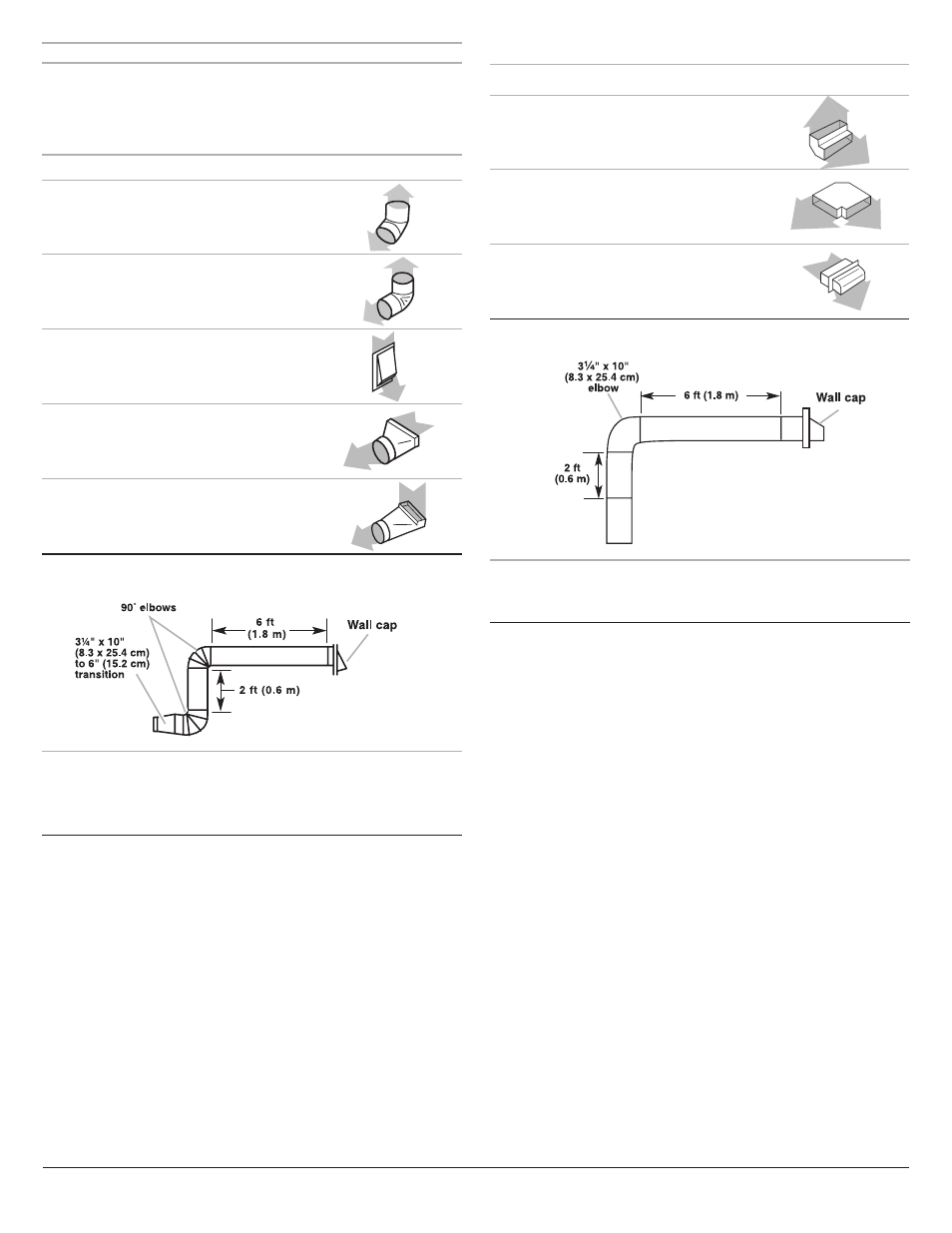

Example vent system
Calculating Vent System Length
To calculate the length of the system you need, add the
equivalent feet (meters) for each vent piece used in the system.
6" (15.2 cm) Vent System
Vent Piece 6" (15.2 cm) Round
45° elbow 2.5 ft (0.8 m)
90° elbow 5.0 ft (1.5 m)
6" (15.2 cm)
wall cap 0.0 ft (0.0 m)
3 ¹⁄₄" x 10"
(8.3 cm x 25.4 cm)
to 6" (15.2 cm)
4.5 ft (1.4 m)
3 ¹⁄₄" x 10"
(8.3 cm x 25.4 cm)
to 6" (15.2 cm)
90° elbow
5.0 ft (1.5 m)
1 - transition
2 - 90° elbows
1 - wall cap
8 ft (2.4 m) straight = 4.5 ft (1.4 m)
= 10.0 ft (3.0 m)
= 0.0 ft (0.0 m)
= 8.0 ft (2.4 m)
Length of 6" (15.2 cm) system = 22.5 ft (6.9 m)
Vent Piece 3 ¹⁄₄" x 10" (8.3 cm x 25.4 cm)
3 ¹⁄₄" x 10"
(8.3 cm x 25.4 cm)
90° elbow
5.0 ft
(1.5 m)
3 ¹⁄₄" x 10"
(8.3 cm x 25.4 cm)
flat elbow
12.0 ft
(3.7 m)
3 ¹⁄₄" x 10"
(8.3 cm x 25.4 cm)
wall cap
0.0 ft
(0.0 m)
3
¹⁄₄" x 10" (8.3 cm x 25.4 cm) Vent System
Example vent system
1 - 90° elbow
8 ft (2.4 m) straight
1 - wall cap = 5.0 ft (1.5 m)
= 8.0 ft (2.4 m)
= 0.0 ft (0.0 m))
Length of 3 ¹⁄₄" x 10" (8.3 cm x
25.4 cm) system
= 13.0 ft (3.9 m)
