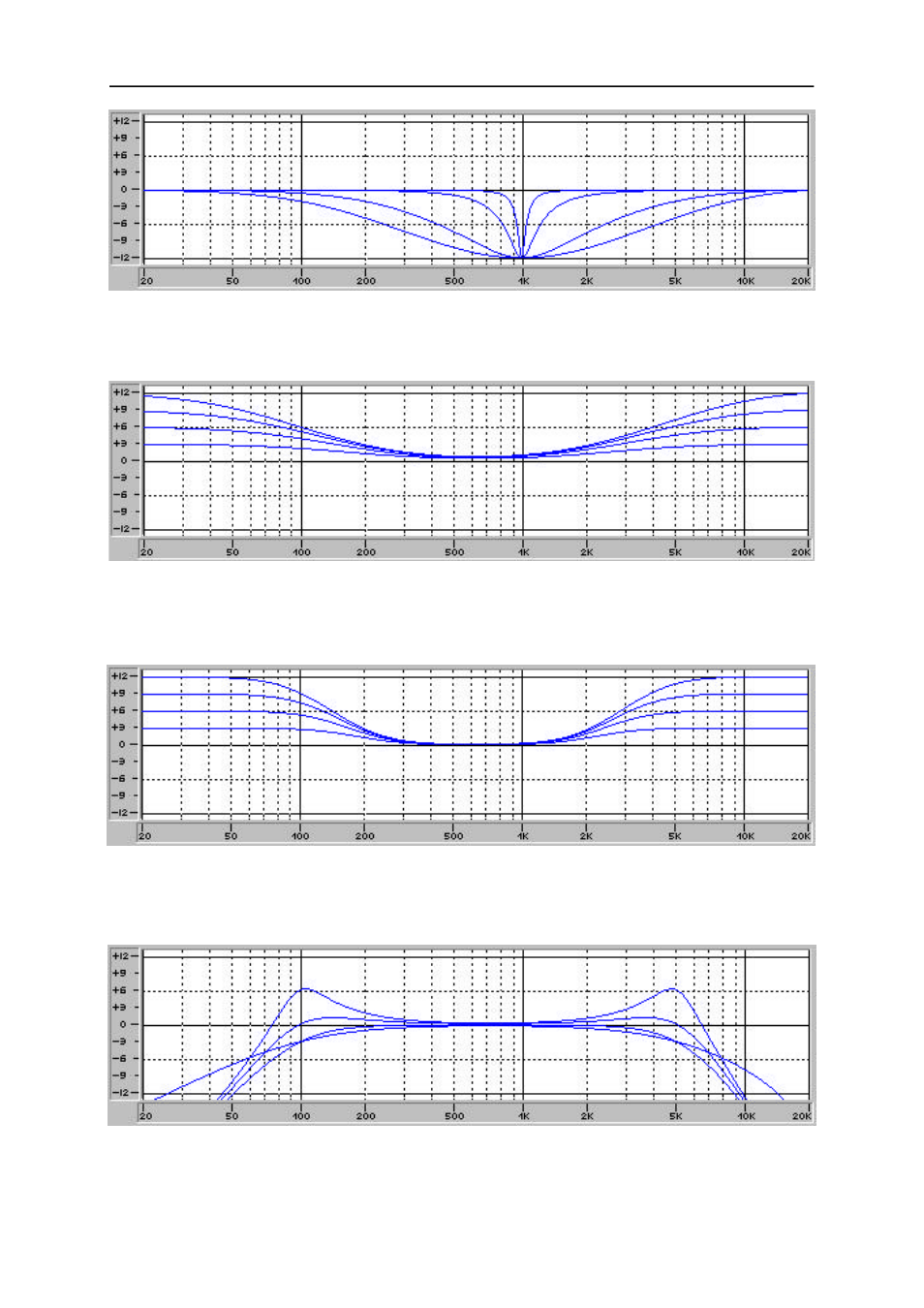

PEQ:
f = 1kHz, Gain = -12dB
Q = 0.5, 1.0, 5.0, 20.0
Low Shelving Filter (LOSLV):
f = 200Hz, Slope = 6dB
Gain = +3dB, +6dB, +9dB, +12dB
High Shelving Filter (HISLV):
f = 2000Hz, Slope = 6dB
Gain = +3dB, +6dB, +9dB, +12dB
Low Shelving Filter (LOSLV):
f = 200Hz, Slope = 12dB,
Gain = +3dB, +6dB, +9dB, +12dB
High Shelving Filter (HISLV):
f = 2000Hz, Slope = 12dB,
Gain = +3dB, +6dB, +9dB, +12dB
Hi-Pass Filter (HIPASS):
f = 100Hz, Slope = 6dB, 12dB
Q = 0.7, 1.0, 2.0
Lo-Pass Filter (LOPASS):
f = 5000Hz, Slope = 6dB, 12dB Q = 0.7, 1.0, 2.
