Connecting the speakers

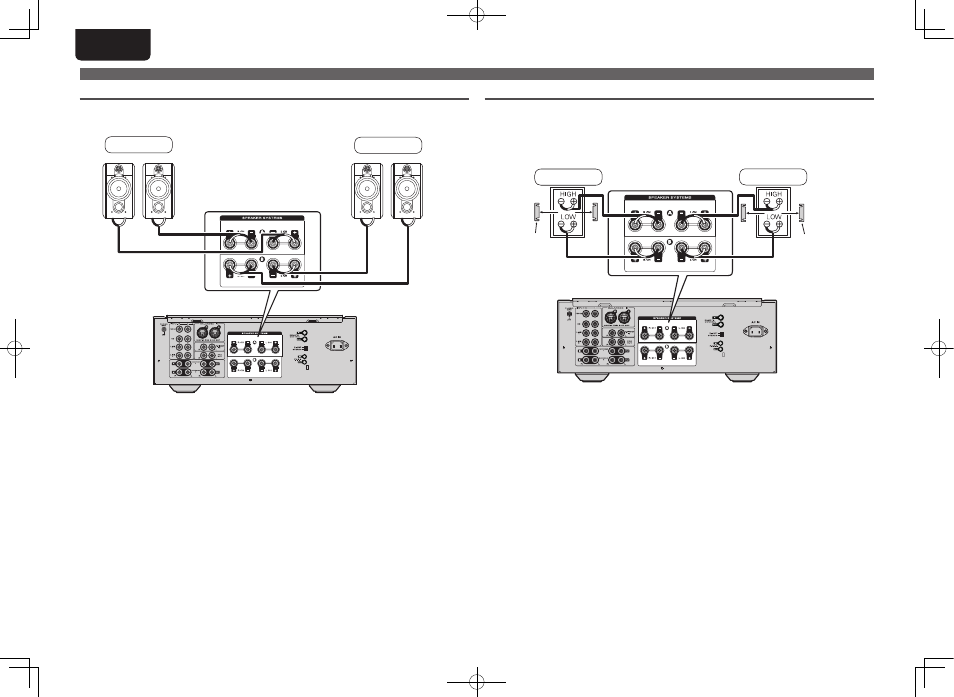

Speaker connections
• The same signal is output from the SPEAKER A and B terminals.
• When only one set of speakers is to be connected, use either the SPEAKER A or B terminals.
3 1 2 3 1 2
w q w q w q w q
(R) (L) (R) (L)
Speakers A Speakers B
Bi-wiring connection
• When bi-wiring with bi-wireable speakers, connect the mid and high range terminals to
SYSTEM (A) (or SYSTEM (B)), the low range terminals to SYSTEM (B) (or SYSTEM (A)).
• This enables playback with minimal interference between the high-range speaker unit and the
low-range speaker unit.
Remove
shorting bar
Remove
shorting bar
Speaker (L) Speaker (R)
