Specifications
Audio performance
n
Signal format :
NTSC
Applicable discs /memory cards : (1)·BD-Video·discs·:
12·cm·1·side·1·layer,·12·cm·1·side·2·layers
(2)·DVD-Video·/·DVD-Audio·discs·:
12·cm·1·side·1·layer,·12·cm·1·side·2·layers·/·
12·cm·2·sides·2·layers·(1·side·1·layer)
8·cm·1·side·1·layer,·8·cm·1·side·2·layers·/·
8·cm·2·sides·2·layers·(1·side·1·layer)
(3)·Super·Audio·CDs·:
12·cm·1·layer·/·12·cm·2·layer·/·12·cm·Hybrid
(4)·Compact·Discs·(CD-DA)·:
12·cm·/·8·cm·discs
(5)·Memory·cards·:
SD·Memory·Card·/·SDHC·Memory·Card·/·miniSD·Card·/
microSD·Card
S-Video output :
Y output level : 1 Vp-p (75 Ω/ohms)
C·output·level·:·0.286·Vp-p
Output·terminal·:·S-Video,·1·set
Video output :
Output level : 1 Vp-p (75 Ω/ohms)
Output·terminal·:·Pin-jack,·1·set
Component video output :
Y output level : 1 Vp-p (75 Ω/ohms)
Pb/Cb output level / Pr/Cr output level : 0.648 Vp-p (75 Ω/ohms)
Output·terminal·:·Pin-jack,·1·set
HDMI output :
Output·terminal·:·19-pin·HDMI·terminals,·1·set
HDMI·ver.·1.3a·
(Deep·Colour,·Dolby·Digital·Plus,·Dolby·TrueHD,·DTS-HD)
Analog audio output :
Output level : 2.3 Vrms (10 kΩ/kohms)
2·channels·output·terminal·:·Pin-jack,·1·set
7.1·channels·output·terminal·:·Pin-jack,·1·set
Audio output characteristics :
(1)·Frequency·response
q
·BD·(Multi·linear·PCM)
w
·DVD·(Multi·linear·PCM)
e
·Super·Audio·CD
r
·CD
:·2·Hz·~·22·kHz·(48·kHz·sampling)
:·2·Hz·~·44·kHz·(96·kHz·sampling)
:·2·Hz·~·88·kHz·(192·kHz·sampling)
:·2·Hz·~·22·kHz·(48·kHz·sampling)
:·2·Hz·~·44·kHz·(96·kHz·sampling)
:·2·Hz·~·88·kHz·(192·kHz·sampling)
:·2·Hz·~·100·kHz
:·2·Hz·~·20·kHz
(2)·S/N·ratio·:·120·dB
(3)·Total·harmonic·distortion·:·1kHz·0.0015·%
(4)·Dynamic·range·:·110·dB
(5)·Channel·separation·:·110·dB
Digital audio output :
Optical·digital·output:·Optical·connector,·1·set
Coaxial·digital·output:·Pin·jack,·1·set
General
n
Power supply :
AC·120·V,·60·Hz
Power consumption :
(vpage·30·“Power·Saving”)
55·W
When·in·Power·Saving·Standby·:·0.3·W
When·in·Normal·Standby·:·0.8·W
When·in·Quick·Start·Mode·:
20·~·35·W·(Changes·according·to·connection·status,·etc.)
•
•
•
Dimensions
n
Weight : 8.5 kg (18.7 lbs)
n
z For purposes of improvement, specifications and design are subject to change without notice.

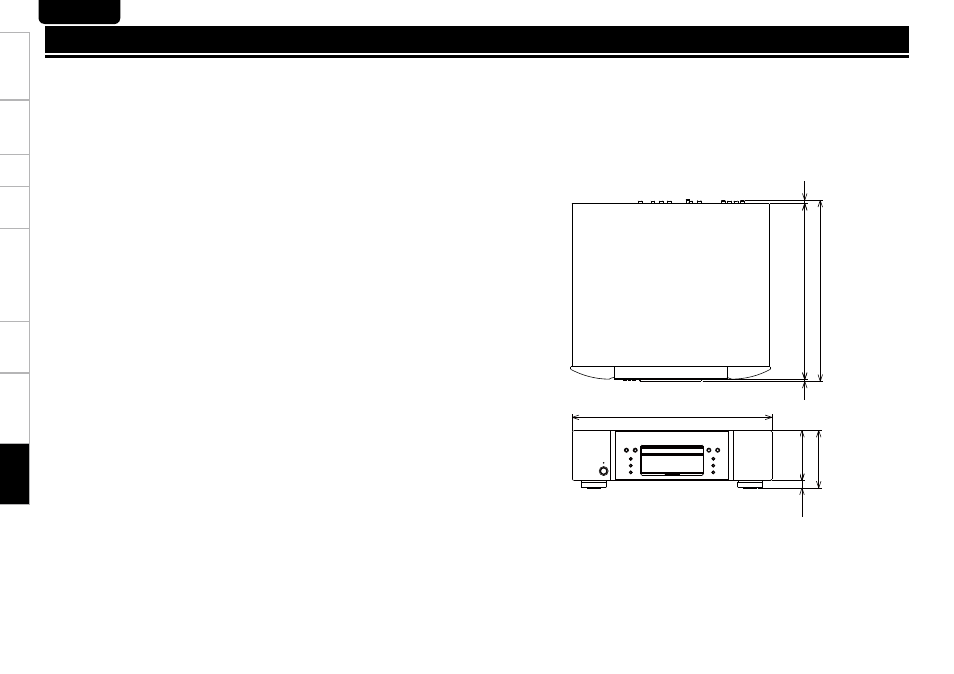

440.0·(17-3/8)
110.5
·
·(4-3/8)
16.5
·
(11/16)
388
··
(15-5/16)
399
··
(15-3/4)
7·
·
(5/16)
4·
(3/16)
127
·(5)
