Delta 40-570 - Manual (Page 10)

Fig. 18
A
10

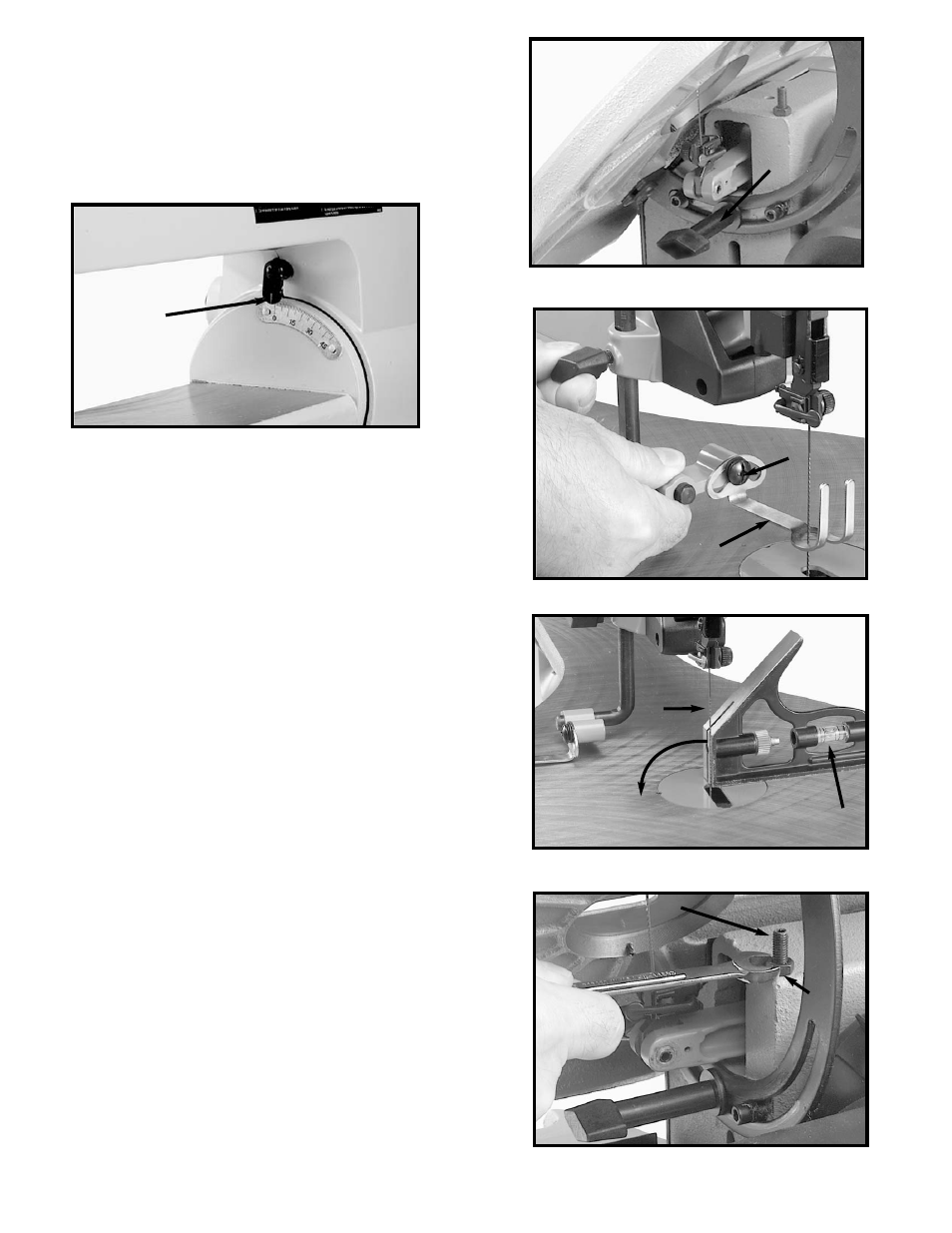

TILTING THE TABLE
The table on your scroll saw can be tilted 45° to the left
for bevel cutting operations by removing the dust cup
as shown in Fig. 12 and loosening table lock knob (A)
Fig. 18, tilt the table to the desired angle indicated on
degree scale (B) Fig. 19 and tighten lock handle (A) Fig.
18.
When bevel cutting, the holddown (B) Fig. 20, can be
adjusted to lay flat on the stock by loosening screw (C)
and tilting the holddown (B) accordingly. Then tighten
screw (C).
LEVELING THE TABLE
1. Loosen table lock knob as shown in Fig. 18 and
move the table all the way to the right until angle
indicator shown in Fig. 19 is on “0”.
2. Using a square that includes a level, check to see if
the table is level (A) Fig. 21, and is 90° to the saw blade
(B), as shown.
3. If the table is not at 90° to the blade, adjust the table
accordingly making certain screw (B) Fig. 22, contacts
bottom of table surface when table is 90° to the blade.
Screw (B) can be adjusted by loosening nut (C), turn
screw (B) in or out the desired distance and tighten nut
(C).
Note: After adjusting table, reposition the angle
indicator (B) Fig. 19 to "O" degrees.
Fig. 20
Fig. 22
Fig. 19
B
C
B
C
B
Fig. 21
A
B
90°
