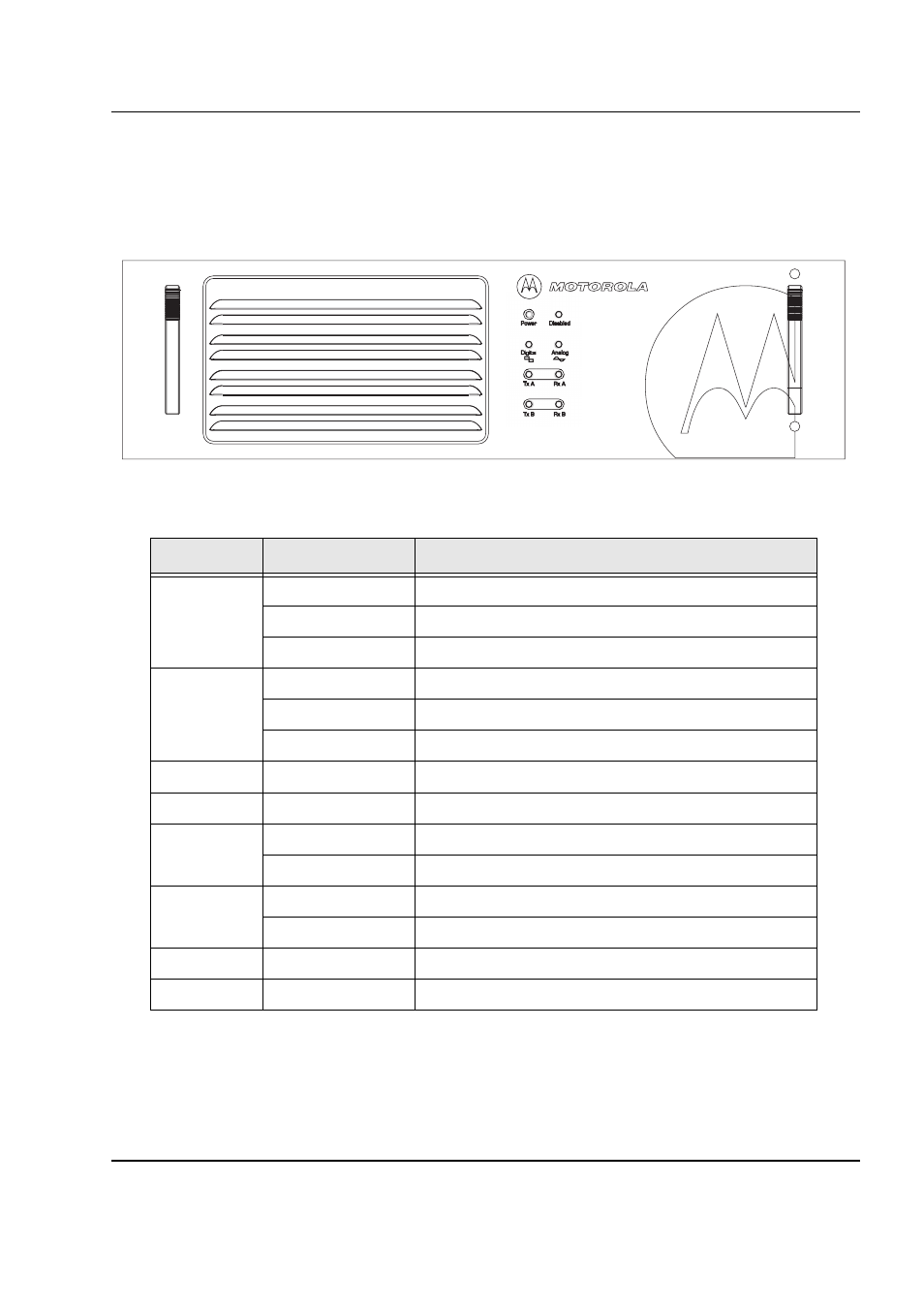

Chapter 3

Indicators and Connectors

3.1

Front Panel

3.1.1

LED Indicator Descriptions

LED

Status

Description

Power

Solid GREEN

Repeater powered by AC

Solid RED

Repeater powered by backup battery

Off

Repeater powered off

Repeater
Disable

Solid RED

Repeater function disabled

Blinking RED

Repeater in self-test mode

Off

Repeater in normal operational mode

Digital

Solid BLUE

Repeater in Digital Mode

Analog

Solid YELLOW

Repeater in Analog Mode

TX-A

Solid GREEN

Repeater transmitting (Analog)

Solid GREEN

Repeater transmitting on Slot A (Digital)

RX-A

Solid YELLOW

Repeater receiving a signal for Slot A (Analog)

Solid YELLOW

Repeater receiving on Slot B (Digital)

TX-B

Solid GREEN

Repeater transmitting on Slot B (Digital)

RX-B

Solid YELLOW

Repeater receiving a signal for Slot B (Digital)
