244 mm
Dispenser Cutout
391 mm

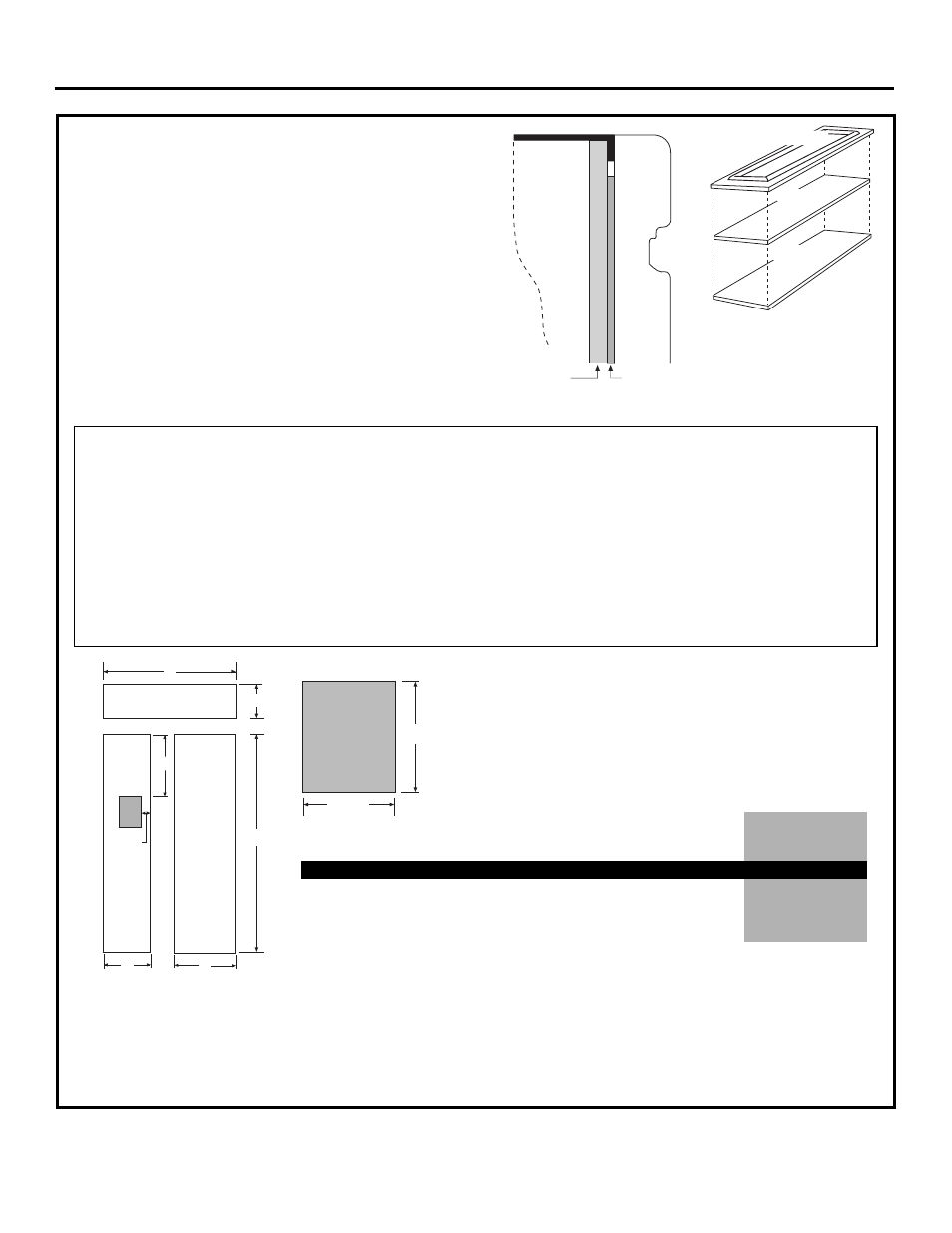

19 mm OVERLAY PANEL DIMENSIONS
For a more custom appearance, overlay panels may be
installed on trimmed models. The overlay panel must be
secured to a 6 mm thick backer panel which slides into the
trim. A spacer panel 3 mm thick must be placed between
the overlay and backer panel.
Assemble the panels with glue and screws.
• Center the spacer panel on the backer panel, left to right
and top to bottom. Secure the panels with glue.
• Center the spacer and backer panel on the overlay
panel and secure with glue and screws. Screws must be
countersunk into the backer panel.
NOTE: Left-to-right offset
is not always equal to
top-to-bottom offset.
8
Design Guide
Spacer Panel
Overlay Panel
Backer Panel
Fresh Food
Panel
Freezer
Panel
E D
F
G
A
B Grille Panel
C
Dispenser
Cutout
*Cut the dispenser opening after the backer, spacer and overlay
panels have been assembled.
*Dispenser
Cutout Position
IMPORTANT NOTE: Maximum
total weight for the assembled
panels:
• Fresh food door panel – 34 kg
• Freezer door panel – 24 kg
• Grille Panel – 8 kg
IMPORTANT NOTE—Dispenser Models:
The refrigerator is supplied with two dispenser trims,
one for framed panels and one for overlay panels.
The overlay dispenser trim is designed to fit a total
panel thickness of 28 mm.
• If the panel is less than 28 mm a noticeable gap
may be created around the dispenser trim.
• If the panel is more than 28 mm the dispenser
trim cannot be secured to the door.
See Dispenser Trim Fit Example, page 9.
6 mm + 3 mm + 19 mm = 28 mm Total Panel Thickness
• The overlay panel must be constructed according to
the specifications shown to achieve the correct total
thickness.
• Alternative panel construction methods such as
securing a 19 mm panel to a 6 mm backer panel
cannot be used. Another method, routing a 19 mm
thick panel on all sides cannot be used. These
methods will not result in the required 28 mm
panel thickness.
When a raised panel design is to be used, a custom
middle rail is required. See page 9 for details.
19 mm
Overlay
Panel
6 mm
Backer
Panel
Door
3 mm
Spacer
42” Side-by-Side (in millimeters)
A B C D E F G
6 mm Backer Panel 1013 mm 241 mm 1737 mm 370 mm 624 mm
3 mm Spacer Panel 991 mm 219 mm 1702 mm 337 mm 591 mm
19 mm Overlay Panel 1019 mm 248 mm 1743 mm 376 mm 630 mm 456 mm 83 mm
