Jetway Computer NC96 User Manual

Page 19

  • Text mode
  • Original mode
background image

14

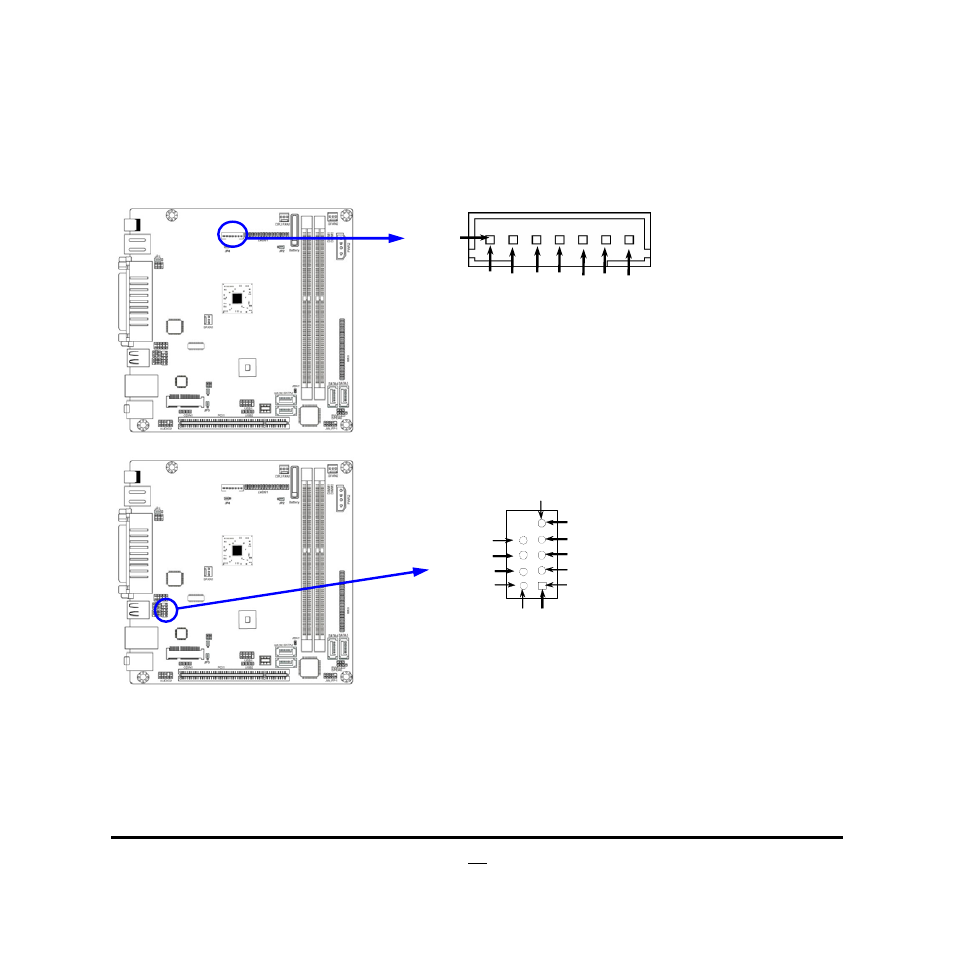

(4) LVDS Inverter headers: Inverter1

Pin 1 and pin2: VCC of inverter

Pin3, pin4 and pin6: GND

Pin5: Backlight

Pin7: Brightness

(5)

Serial Port Connectors (9-Pin female): COM2

Serial COM Port 9-pin Block

DTR

Pin1

Pin6

DCD

DSR

RXD

RTS

TXD

GND

GTS

RI

Pin5

Pin 1

VCC

VCC

GND

GND

Backligh

t

GND

Brightness
