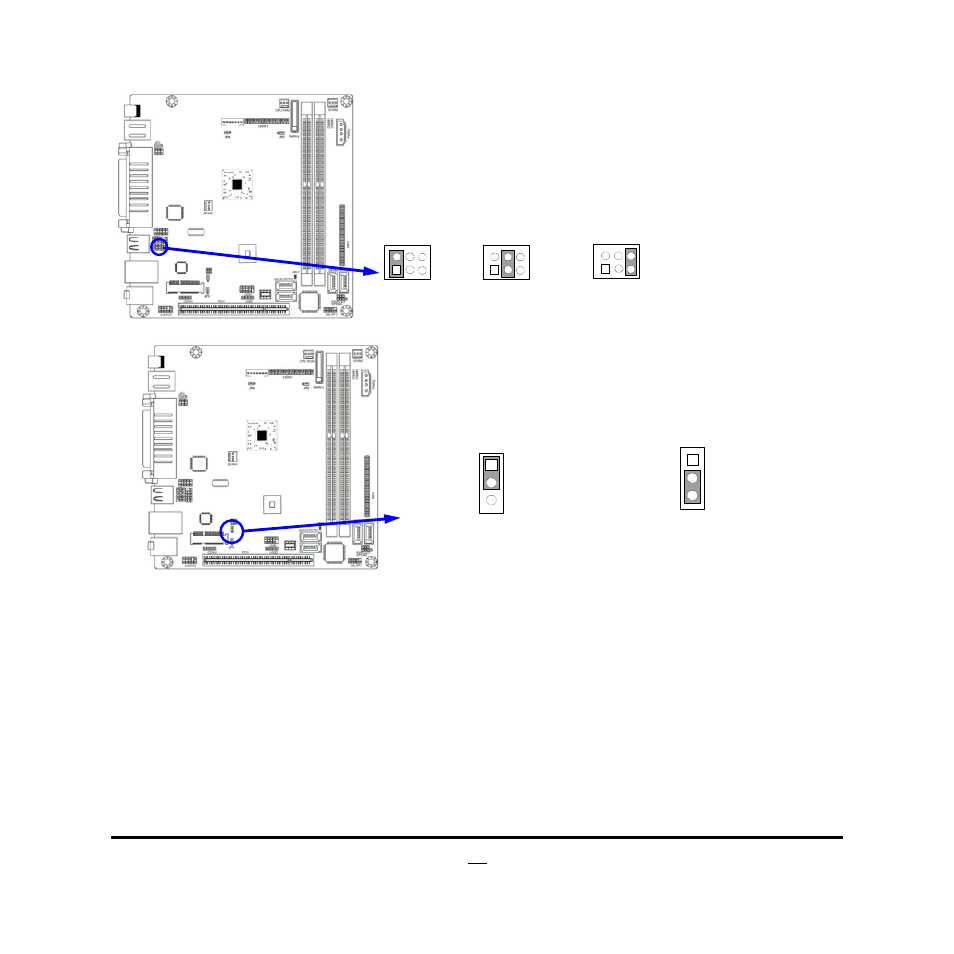

(8) JP8: COM2 Port RS232/485/422 Function Select

3-4 closed : RS485

JP8

1

1-2 closed: RS232

1

1

5-6 closed : RS422

(9) JP9 : Mini PCI-E Power VCC3.3V/ Dual 3.3 V Function Select

2-3 closed : MINI PCI-E

VCC= Dual 3.3V

JP9

1-2 closed : MINI PCI-E

VCC= VCC3.3V

1

3

JP9

1

3
