2
C
4"
4"
6"
1. Place the EXHAUST DUCT ASSEMBLY in the open-
ing. When the EXHAUST DUCT ASSEMBLY is in the
opening correctly, its fl anges will be tightly against the
lower edge of the opening. See Figure 2.
2. Secure the EXHAUST DUCT ASSEMBLY with two
SCREWS A. See Figure 2.

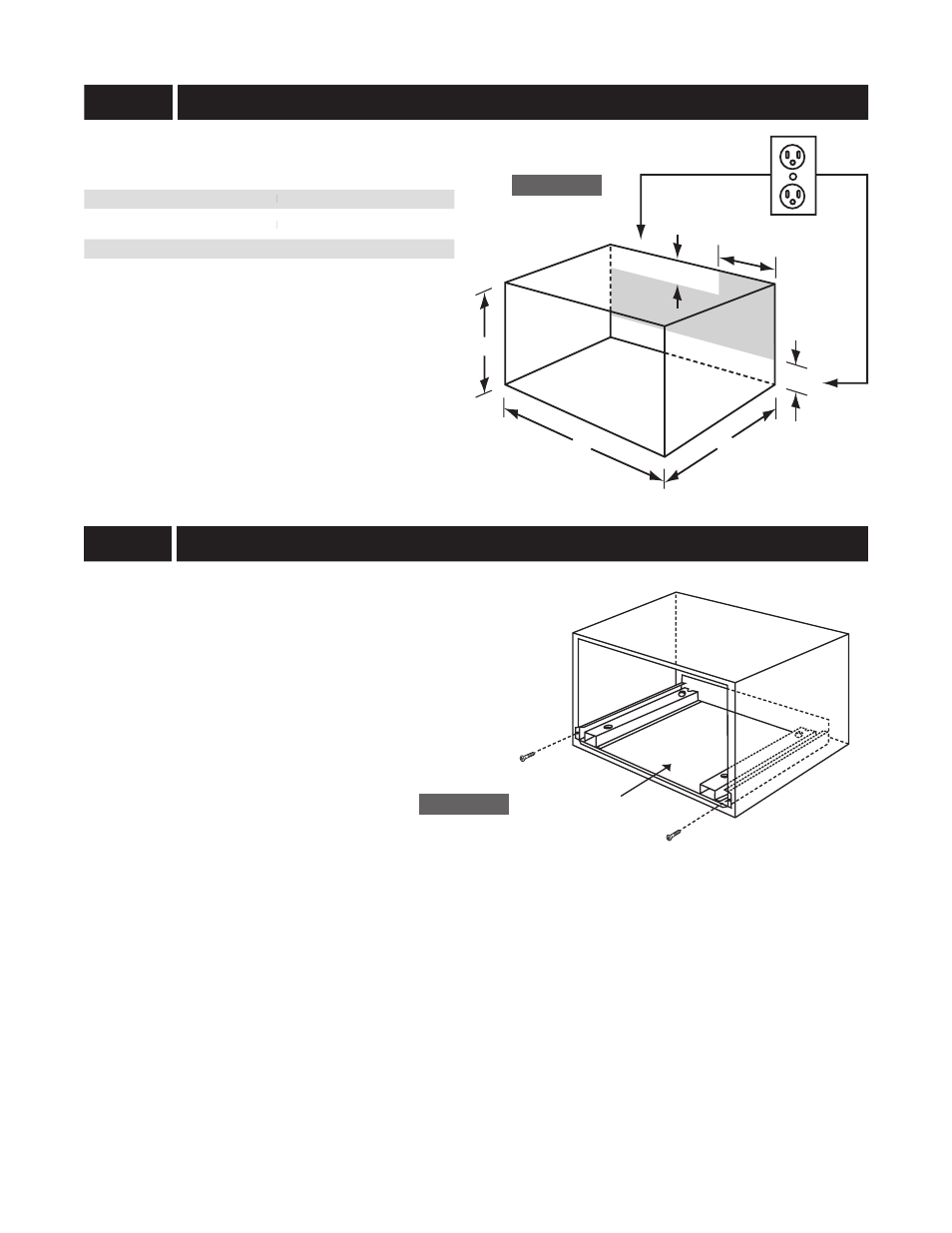

Figure 1
Figure 2
A
B
The opening in the wall or cabinet must be within the
following dimensions:
A HEIGHT : 16
3
/
33 4
// " to 17"
B WIDTH
: 24
3
/
33 8
// " to 24
11
/
16
"
C DEPTH
: minimum 20"
Outlet should NOT be in the shaded area as indicated on
Figure 1.
NOTE 1: If the dimension of DEPTH (C) is more than 21", the
outlet location may be any area on the rear wall.
NOTE 2: The fl oor of the opening should be constructed of
plywood strong enough to support the weight of the
oven and fl oor load (about 100 pounds). The fl oor
should be level for proper operation of the oven.
Be sure to check the local building code as it may
require that the opening be enclosed with sides,
ceiling and rear partition. The proper functioning
of the oven does not require the enclosure.
STEP 2 EXHAUST DUCT ASSEMBLY INSTALLATION
STEP 1 CABINET OR WALL OPENING
SCREW A
SCREW A
SCREW A
EXHAUST
DUCT ASSEMBLY
