DECK REMOVAL - MANUAL CLUTCH - MODELS ZTR 3303 & ZTR 3304:
1. Place cut height lever in lowest cut position.
2. Loosen belt keepers.
3. Remove deck drive belt from engine pulley.
4. Using a slight upward twisting motion, remove link from engagement handle.
5. Turn handle fully to the left until handle clears stop on mower deck pan. Lift and
remove handle through hole in lower body.
6. Remove hair pin cotter and washer from one end of deck support cross shaft.
Note location of remaining shim washers used between chassis and mower
deck pan arms. Slide shaft from chassis and mower deck.
7. Remove hair pin cotter and washer from each deck adjustment rod. Carefully
push each link toward the inside of the mower chassis. At this point, deck will
drop down.
8. Carefully raise and support front of chassis. Slide mower deck to either si de for
removal. (Reverse procedure to reinstall deck assembly).
Page24
CARE AND MAINTENANCE - 3000 SERIES MODELS
BELT TENSION:
Manual Clutch: No Adjustment

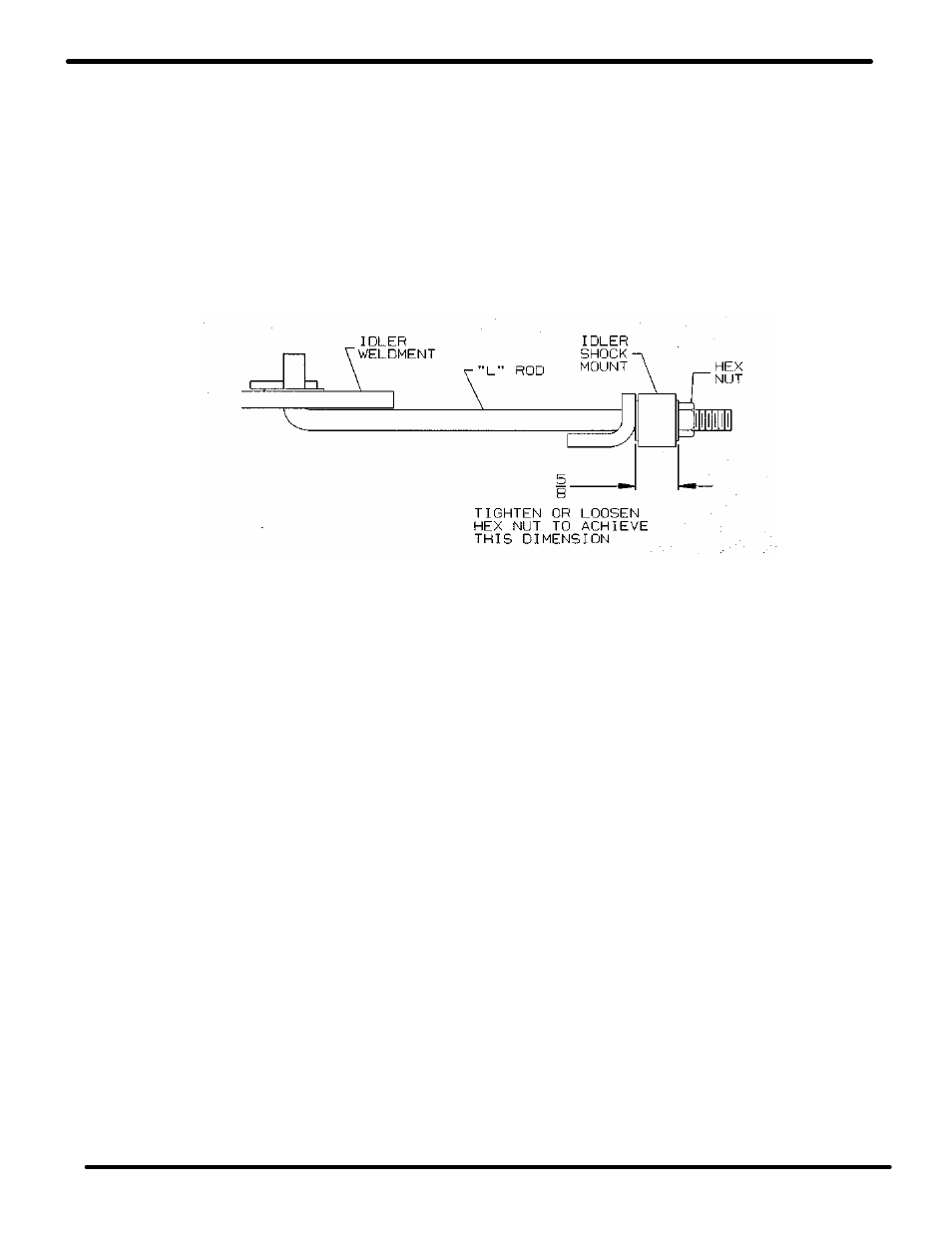

Electric Clutch: Adjust idler shock mount per diagram.
