Draco KVM Extender
30
2013-03-12

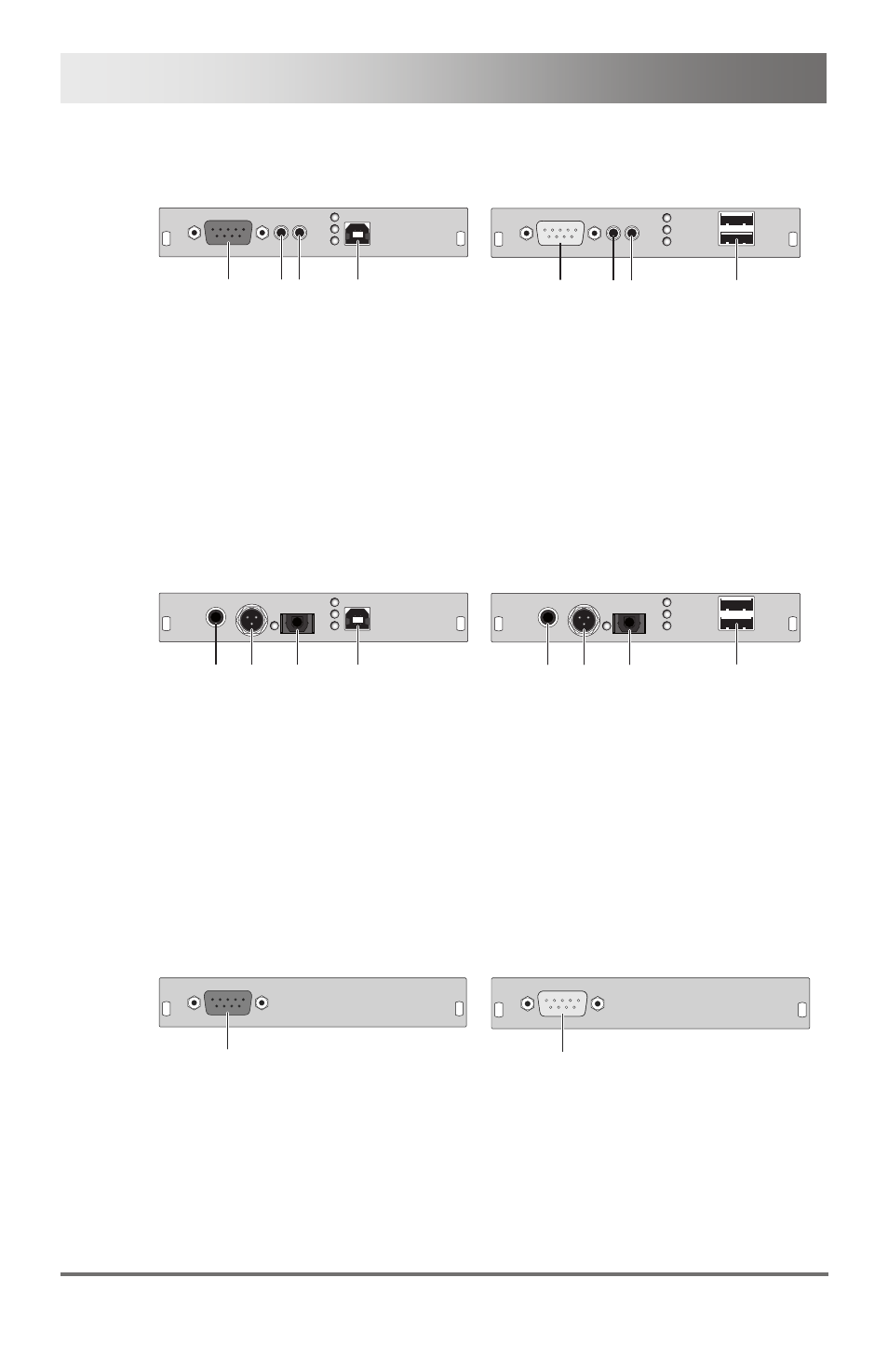

3.6.21 Model L- / R474-BAE
CPU Module
CON Module
1
2 3
4
1
2 3
4
Rear View
Rear View
1
Connect to serial (D-Sub 9)
2 Audio
IN
3 Audio
OUT
4
To CPU: USB 2.0
1
Connect to serial (D-Sub 9)
2 Audio
IN
3 Audio
OUT
4
Connect to USB 2.0 devices
Pos: 37 /806-IHSE/Beschreibung/Geräteansichten/474-xx/Typ L- / R474-BDE @ 8\mod_1348580272466_6.doc @ 69440 @ 3 @ 1
3.6.22 Model L- / R474-BDE
CPU Module
CON Module
1
3
4
2
1
3
2
4
Rear View
Rear View
1
S/PDIF input (RCA)
2
AES/EBU input (Mini-XLR)
3
S/PDIF input (TOSLINK)
4
To CPU: USB 2.0
1
S/PDIF output (RCA)
2
AES/EBU output (Mini-XLR)
3
S/PDIF output (TOSLINK)
4
Connect to USB 2.0 devices
Pos: 38 /806-IHSE/Beschreibung/Geräteansichten/474-xx/Typ L- / R474-BSX @ 9\mod_1362472913267_6.doc @ 71270 @ 3 @ 4
3.6.23 Model L- / R474-BSX
CPU Module
CON Module
1
1
Rear View
Rear View
1
Connect to serial (D-Sub 9)
1
Connect to serial (D-Sub 9)
