Sd card interface, Sd signals, Reference schematic – IBASE SMARC Evaluation Kit User Manual

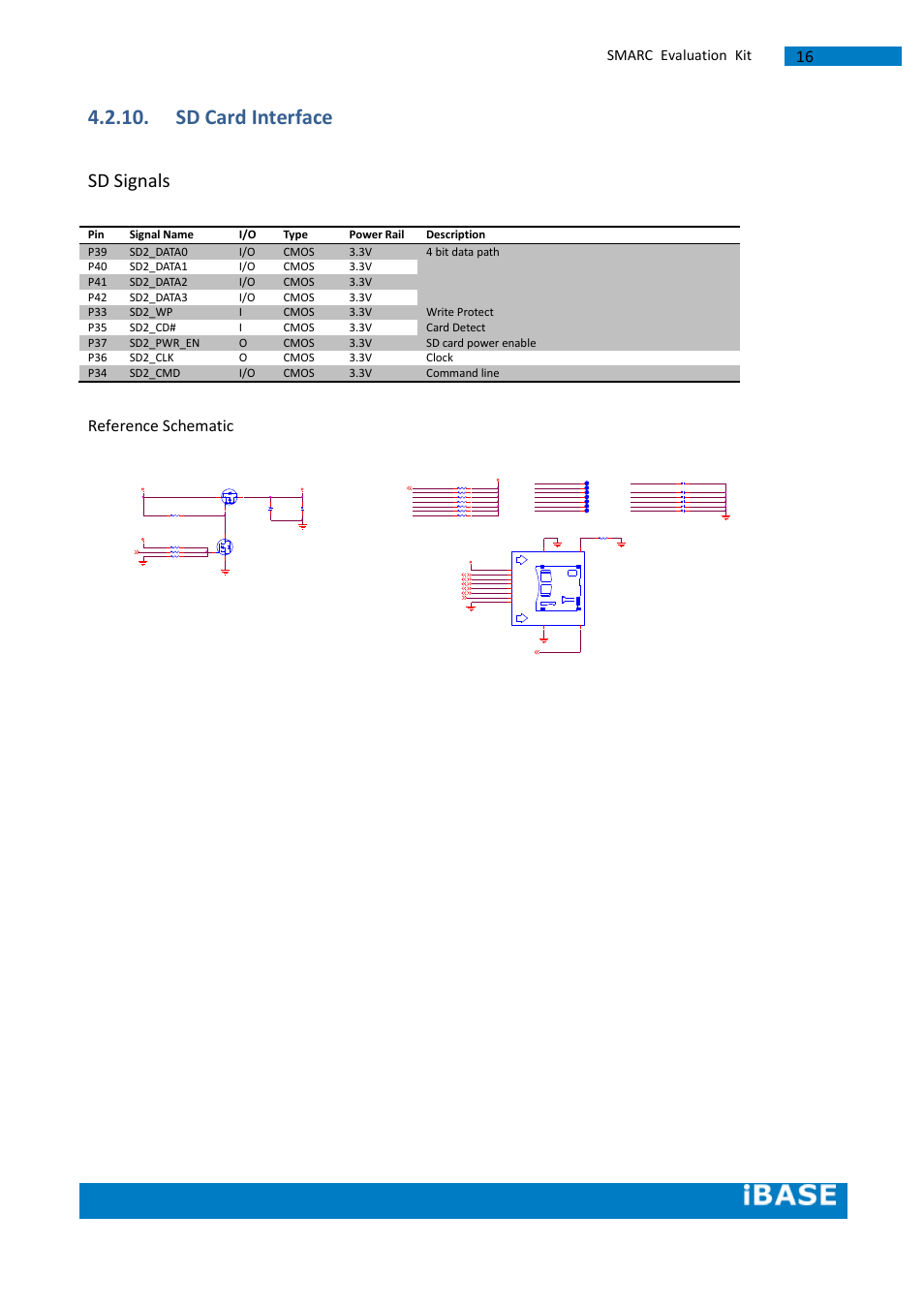

Page 42: Smarc evaluation kit, Cmos 3.3v p42, Sd2_data3 i/o, Cmos 3.3v p33, Sd2_wp i, Cmos 3.3v write protect p35, Sd2_cd# i

Text mode
Original mode

Sd card interface, Sd signals, Reference schematic | Smarc evaluation kit, Cmos 3.3v p42, Sd2_data3 i/o, Cmos 3.3v p33, Sd2_wp i, Cmos 3.3v write protect p35, Sd2_cd# i | IBASE SMARC Evaluation Kit User Manual | Page 42 / 93
