INTRODUCTION
11 10

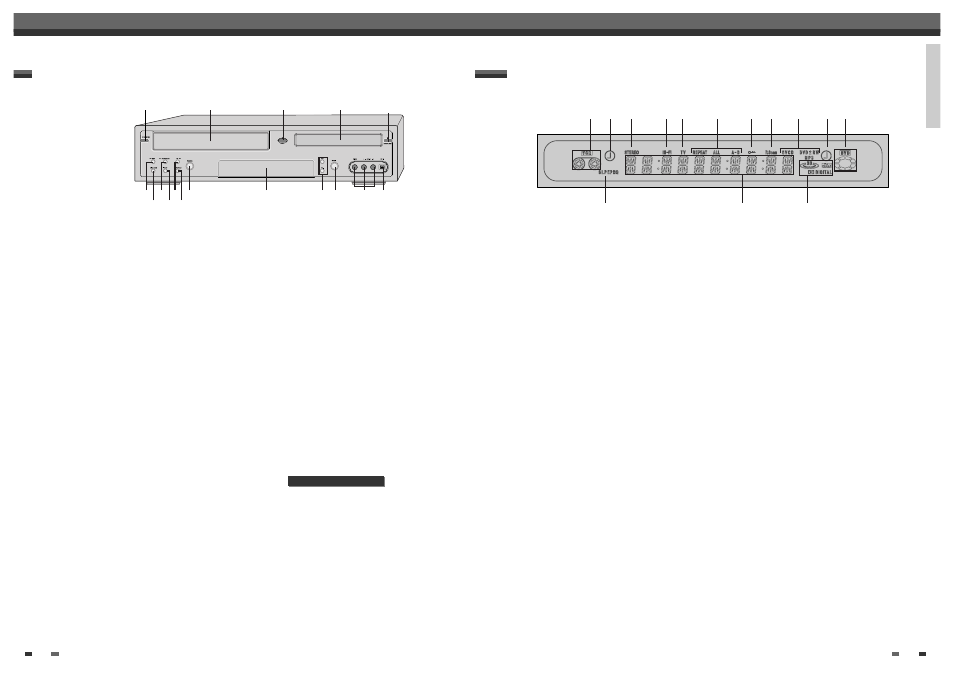

Identification of Controls Identification of Controls
! STANDBY/ON
Turns the DVD Recorder+VCR on and off.
Lock/Unlock the front panel and Remote control
by pressing and holding it over 5 seconds.
@ Cassette Compartment (VCR deck)
Insert a video cassette here.
# EJECT (VCR)
Ejects the tape in the VCR deck.
$ Disc Tray (DVD deck)
Insert a disc here.
% OPEN/CLOSE (DVD)
Opens or closes the disc tray.
^ REW
DVD: Skips to previous chapter.
VCR: Rewinds the tape during Stop mode. Press
during Play mode for fast reverse picture search.
& DISC MENU
* PLAY/PAUSE
Starts playback of a disc or tape. Pauses playback
or recording temporarily.
( STOP
Stops playback.
) FF
DVD: Skips to next chapter.
VCR: Advances the tape during Stop mode. Press
during Play mode for fast forward picture search.
1 REC SPEED
2 SELECT DVD/VCR
Toggles control between the DVD deck and the
VCR deck.
3 Front Panel Display
Shows the current status of the DVD
Recorder+VCR.
4 PR+/–
Scans up or down through memorized channels.
Also moves up and down in DVD navigation
menus.
5 REC
Starts recording. Press repeatedly to set the
recording time. Lights red when the DVD
Recorder+VCR is recording.
6 AVF (VIDEO, L-AUDIO-R)
Connects to the audio/video output of an external
source (VCR, Camcorder, etc.).
7 DV IN
Connects to the DV output of a digital camcorder,
video deck, or DVD+R/RW recorder.
DF-8100P/8150P only
! @ # $ %
Front Panel
6 2
( &
^ * 3 5 7 4
1
)
Front Panel Display
! Indicates a VHS tape is inserted in the VCR deck.
@ Circle : Indicates the VCR is recording.
Clock : Indicates a VCR Timer Recording is set.
# Indicates that a stereo broadcast is being
received.
$ Indicates when the DVD Recorder+VCR is playing
or recording a tape with Hi-Fi sound.
% Indicates the DVD Recorder+VCR is in TV mode
(as set by the [TV/DVD] button).
^ Indicates the current Repeat mode.
& Indicates when the DVD Recorder+VCR is locked.
* Indicates when the DVD Recorder+VCR is
outputting the video signal in Progressive Scan
mode.
( Disc Type indicators
Indicates the type of disc loaded.
) Circle : Indicates a DVD+R(+RW) is recording.
Clock : Indicates a DVD Timer recording is set.
1 Indicates a disc is inserted in the DVD deck.
2 Indicates the current Recording mode.
3
Front Panel Display Message
Indicates clock, total playing time, elapsed time,
remaining time, title number, chapter/track
number, channel, VCR counter, etc.
4 DTS: Indicates a DVD is playing with a DTS
soundtrack.
Dolby : Indicates a DVD is playing with a Dolby
Digital soundtrack.
! @ # $ % ^ & * ( ) 1
2 3 4
Identification of Controls
