CONTACT:
www.delta.com.tw/dcdc
USA:
Phone: East Coast: (888) 335 8201
West Coast: (888) 335 8208
Fax: (978) 656 3964
Email:
Europe:
Phone: +41 31 998 53 11
Fax: +41 31 998 53 53
Email:
Asia & the rest of world:
Telephone: +886 3 4526107 ext 6220
Fax: +886 3 4513485
Email:
WARRANTY
Delta offers a two (2) year limited warranty. Complete warranty information is listed on our web site or is available upon request from Delta.
Information furnished by Delta is believed to be accurate and reliable. However, no responsibility is assumed by Delta for its use, nor for any
infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any
patent or patent rights of Delta. Delta reserves the right to revise these specifications at any time, without notice.
2
SPECIFICATIONS
GENERAL SPECIFICATIONS
OUTPUT SPECIFICATIONS
Input Voltage
18~75V Voltage Accuracy
Typical ±1%
Switching Frequency Typical (5V)
300KHz
Line Regulation
Typical ±0.1%
Isolation Voltage
In/Out 2250V
Load Regulation
Typical ±0.1%
Isolation Capacitance Typical 1500PF
Ripple & Noise
Typical 50
mV
Isolation Resistance
Minimum
100MΩ
Current Limits
Typical 130%
MTBF
Bellcore (3.3V)
3.72M hrs
Over Voltage
Typical
120%
OTP
Typical 115°C
Voltage Trim
+10%,
-10%
Size
(1.95”x1.55”x0.35”) 49.6x39.4x8.9mm
PART NUMBERING SYSTEM
L 36 S
A 050
10 N R
F
A
Type of
Product
Input
Voltage
Number of
Outputs
Product
Series
Output
Voltage
Output
Current
ON/OFF
Logic
Pin
Length
Option
Code
L - 2 x 1.6
Brick
18~75V
S - Single
A - 50W
platform
3R3- 3.3V
050- 5.0V
120- 12V
04- 4A
10- 10A
15- 15A
N- Negative
P- Positive
R- 0.170”
F- RoHS 6/6
(Lead Free)
A- Standard
Functions
B- With sense
MODEL LIST
MODEL NAME
INPUT
OUTPUT
EFF @ 100% LOAD
L36SA3R315NRFA 18V~75V
2.1A
3.3V
15A
88%
L36SA05010NRFA 18V~75V
1.9A
5.0V
10A
89%
L36SA12004NRFA 18V~75V
1.9A
12V
4A
87.5%

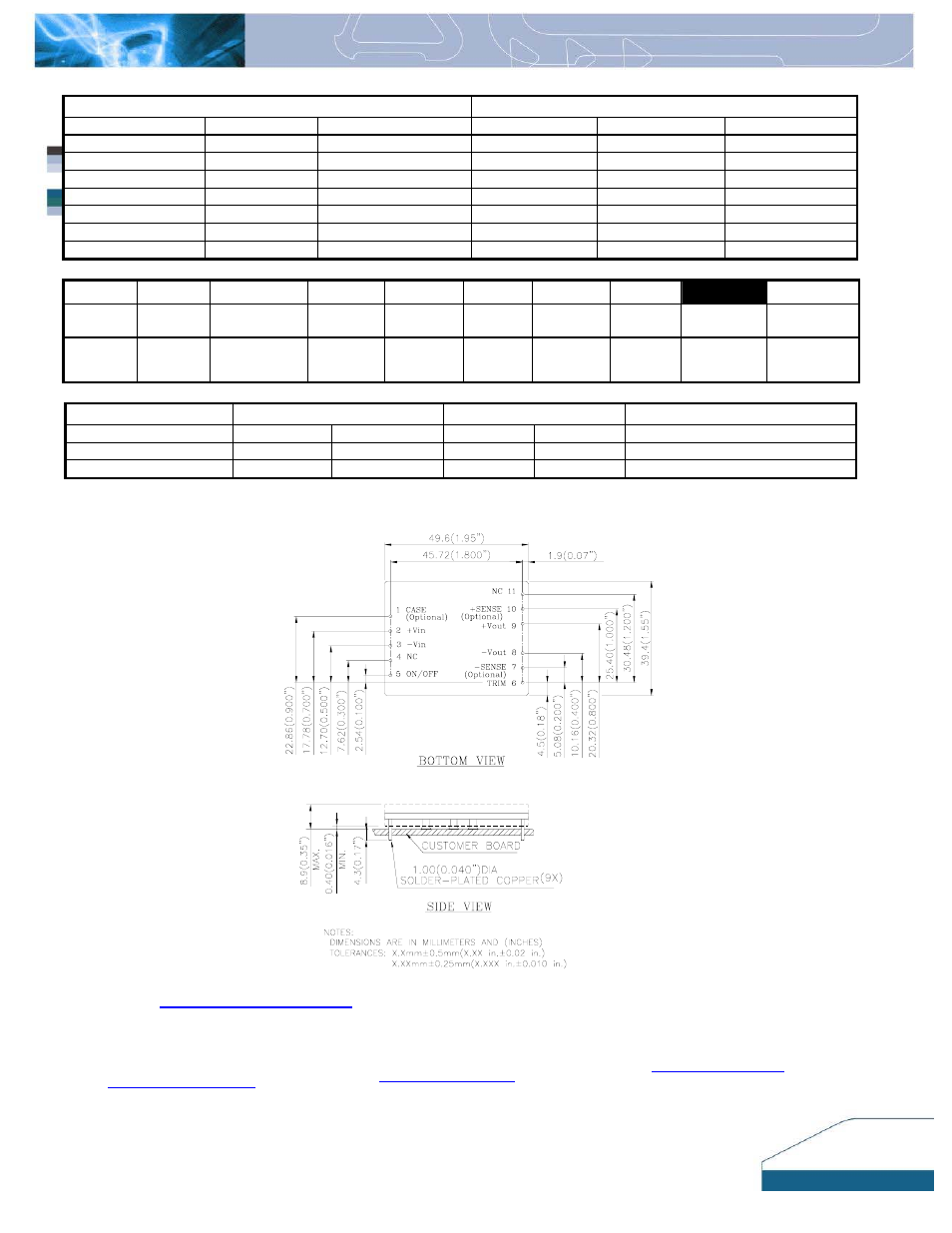

MECHANICAL DRAWINGS
Open Frame Version
