Care and maintenance - 5000 series models – Dixon ZTR 5423 User Manual
Page 36
CARE AND MAINTENANCE - 5000 SERIES MODELS
PARKING BRAKE CABLE ADJUSTMENT:
Position parking brake lever in the off or disengaged position.
This will allow the belt idler used on the engine to T-box to swing fully and apply tension to
the belt.
At this time, check that the cable which pulls the idler to a neutral position has
approximately 1-1/2 to 2 inches of free play.

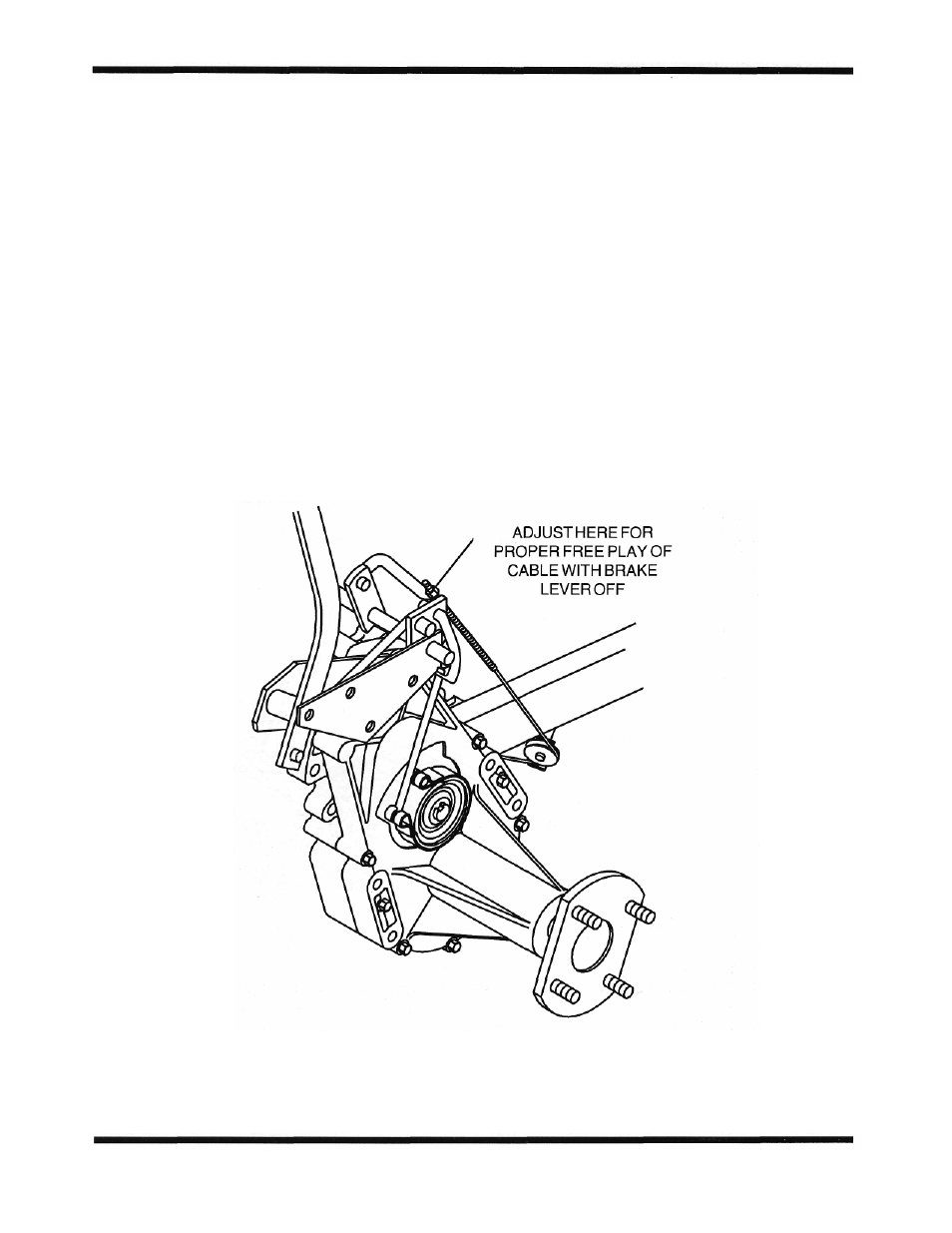

If adjustment is required, loosen the lock nuts on the cable block and turn cable sleeve in
or out to achieve desired measurement.
Re-tighten lock nuts.
NOTE: Cable must have the above dimension with parking brake released or drive
belt may slip, causing loss of power.
Page 33
