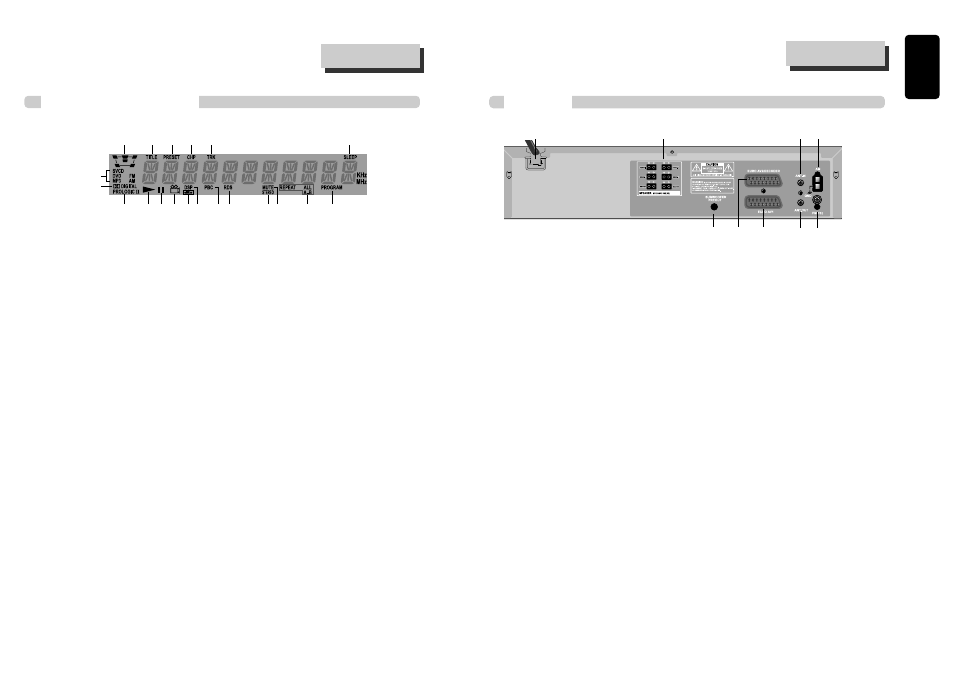

Operation Display Window
Identification of Controls
! Speaker setup indicator
@ Title indicator
# Memorized radio stations
$ Chapter indicator
% Track indicator
^ Sleep time indicator
& Playback disc indicator
* Dolby Digital indicator
( Prologic II indicator
) Playback indicator
1 Pause indicator 2 Multi angle indicator
3 DTS indicator
4 DSP indicator
5 PBC (Playback Control) indicator
6 RDS indicator
7 FM Stereo indicator
8 Mute indicator
9 Repeat playback indicator
0 Program indicator
!
4 5 6 78 9 0 2 3
@ # $ % ^
&
*
( ) 1
8
Identification of Controls
Rear Panel
! Power Cord
It is a jack for supplying power to the unit.
Connect to outlet in a wall.
@ Analog 5.1 Speaker Out Jack
Connect each of the speaker wires to the
satellite speakers.
# Connection to Antenna Cable
$ AM Antenna Jack
% Woofer Out Jack
^ EURO AV2/ DECODER
& EURO AV1
* Connection to TV
( FM Antenna Jack
@ ! # $
% & * ( ^
