Page 39: Page 38
6

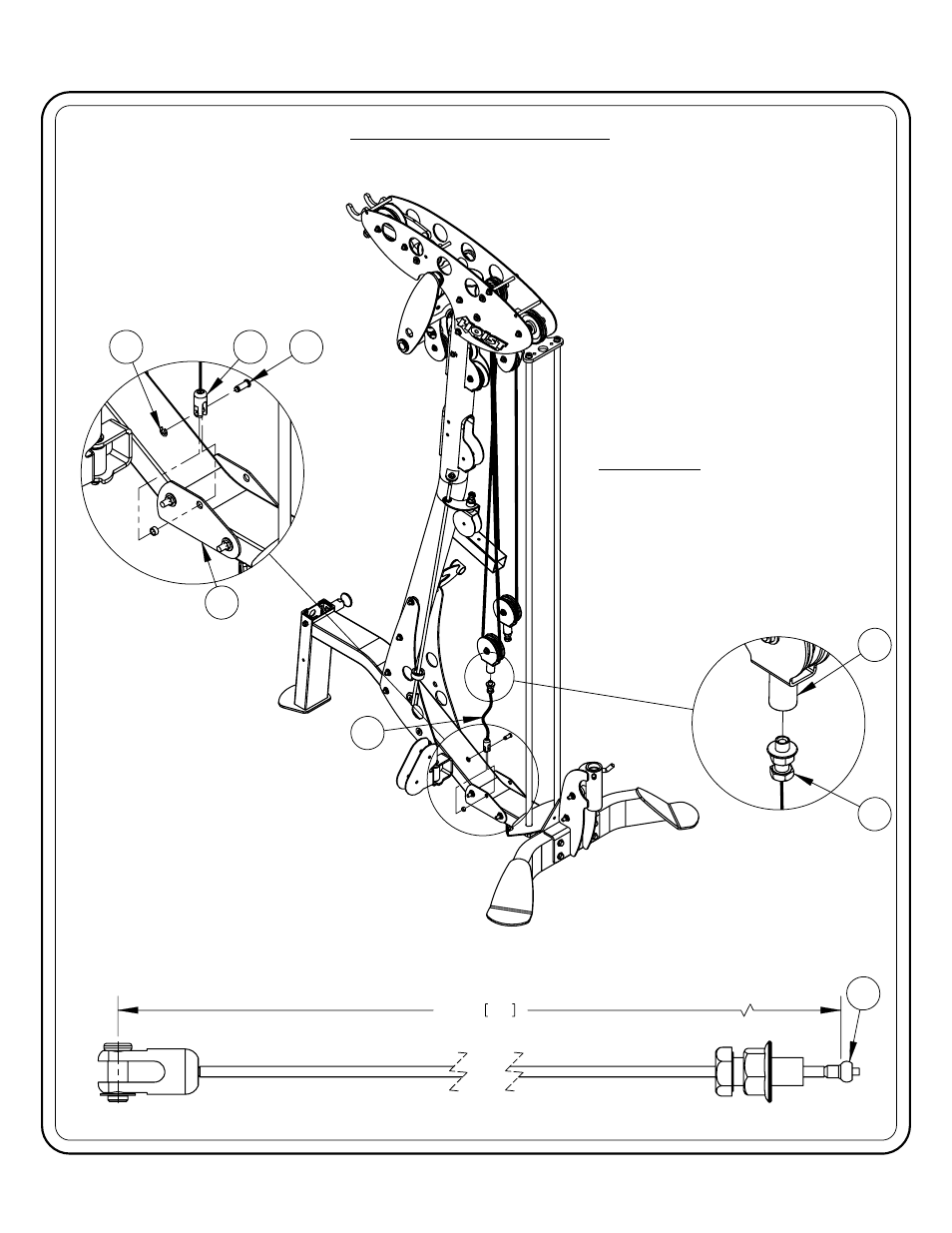

HARDWARE PART OF CABLE (6) ASSEMBLY
FRAME ASSEMBLY
NOTE:
- WRENCH TIGHTEN HARDWARE.
- SOME PARTS MAY HAVE BEEN
REMOVED FOR CLARITY.
*
V-PREMIER ASSEMBLY
OWNER'S MANUAL
PAGE 38
6
17 3/4" 451
6
*
*
60
14
6
A MINIMUM OF 3/8" WITH JAM NUT TIGHTENED
FINE TUNING:
SECURELY TO ENSURE PROPER CONNECTION.
WARNING - CABLE BOLT MUST BE THREADED
LOOSEN JAM NUT AND THREAD
BOLT IN/OUT TO GIVE THE CABLE
PROPER TENSION. RE-TIGHTEN
JAM NUT.
