Page 17
96
78
78
99
28
23
OWNER'S MANUAL
V-PREMIER ASSEMBLY
PAGE 16
NOW THAT THE V-PREMIER IS COMPLETELY ASSEMBLED TAKE TIME TO
ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. USE A LEVEL
TO CHECK THAT THE GUIDE RODS ARE PERPENDICULAR IN BOTH DIRECTIONS.
IF THEY ARE NOT PERPENDICULAR IN BOTH DIRECTIONS, IT WILL BE NECESSARY TO
LOOSEN SOME FRAME HARDWARE TO RE-ALIGN THE FRAME AND RETIGHTEN BOLTS.
*IMPORTANT*

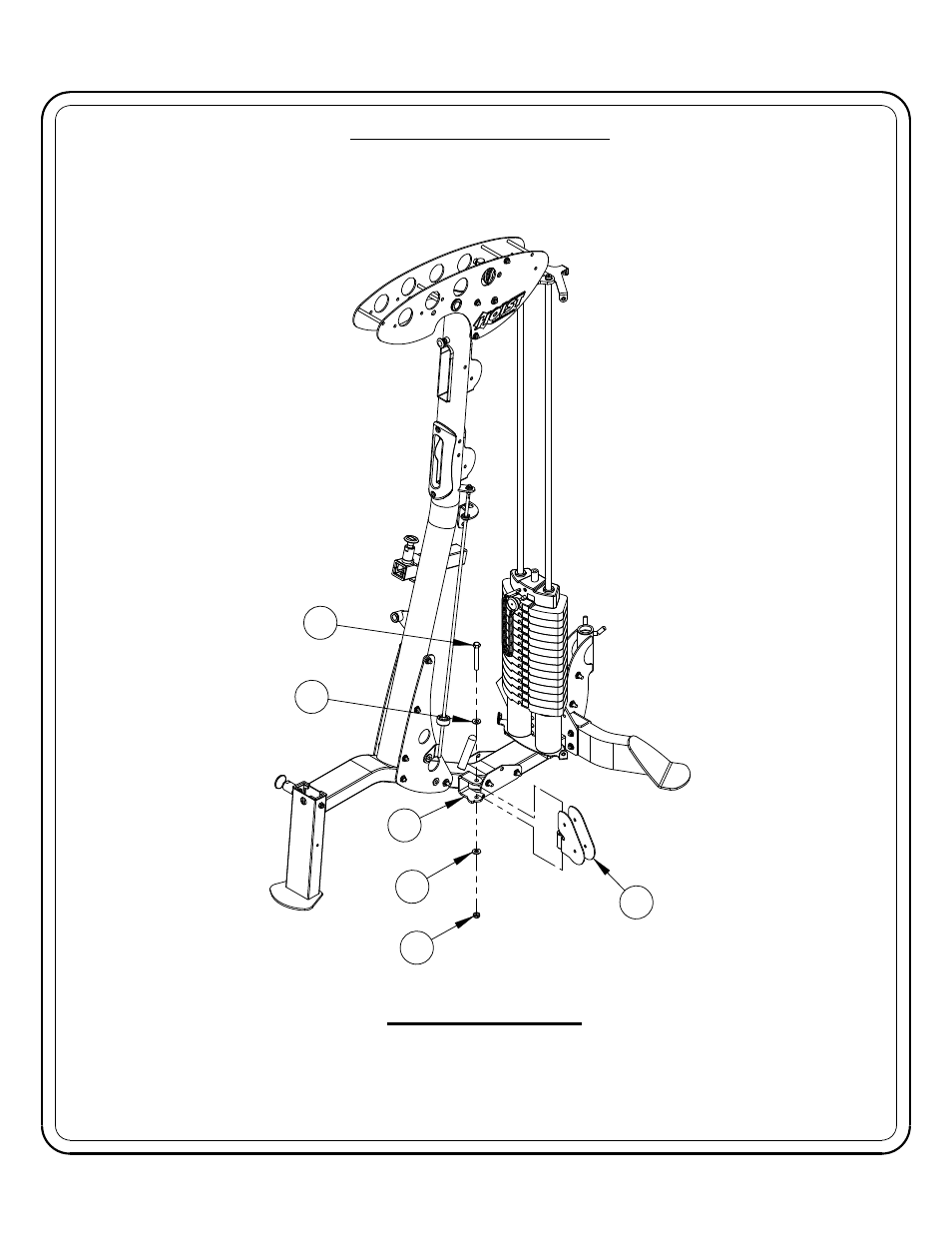

FRAME ASSEMBLY
NOTE:
- WRENCH TIGHTEN HARDWARE (96) THEN
LOOSEN NUT JUST ENOUGH FOR (23)
TO PIVOT FREELY.
- WRENCH TIGHTEN ALL PREVIOUSLY HAND
TIGHTENEND HARDWARE.
