V-express_pg 29-30.pdf, Frame assembly, Owner's manual – Hoist Fitness V-EXPRESS User Manual
Page 30: Page 29, V-express assembly
14
JAM NUT
BOLT
3
3
23 11/16" [602]
- SOME PARTS MAY HAVE BEEN
REMOVED FOR CLARITY.
NOTE:

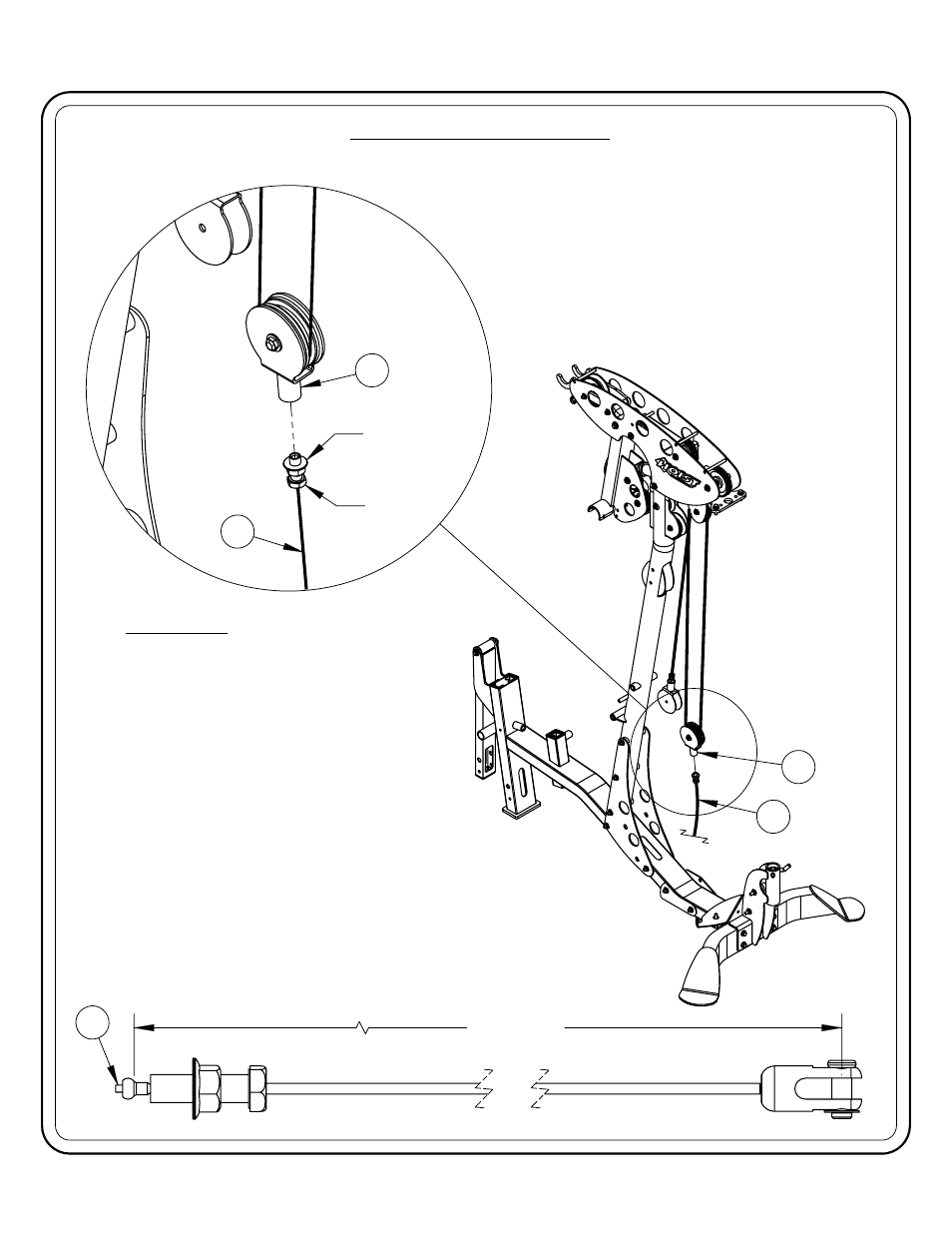

- WRENCH TIGHTEN CABLE ASSEMBLY (3)
TO SECURE ONTO (14).
FRAME ASSEMBLY
PAGE 29
OWNER'S MANUAL
V-EXPRESS ASSEMBLY
SECURELY TO ENSURE PROPER CONNECTION.
A MINIMUM OF 3/8" WITH JAM NUT TIGHTENED
FINE TUNING:
WARNING - CABLE BOLT MUST BE THREADED
BOLT IN/OUT TO GIVE THE CABLE
PROPER TENSION. RE-TIGHTEN
JAM NUT.
14
LOOSEN JAM NUT AND THREAD
3
