Frame assembly, Owner's manual, V-express assembly page 28 – Hoist Fitness V-EXPRESS User Manual
Page 29
2

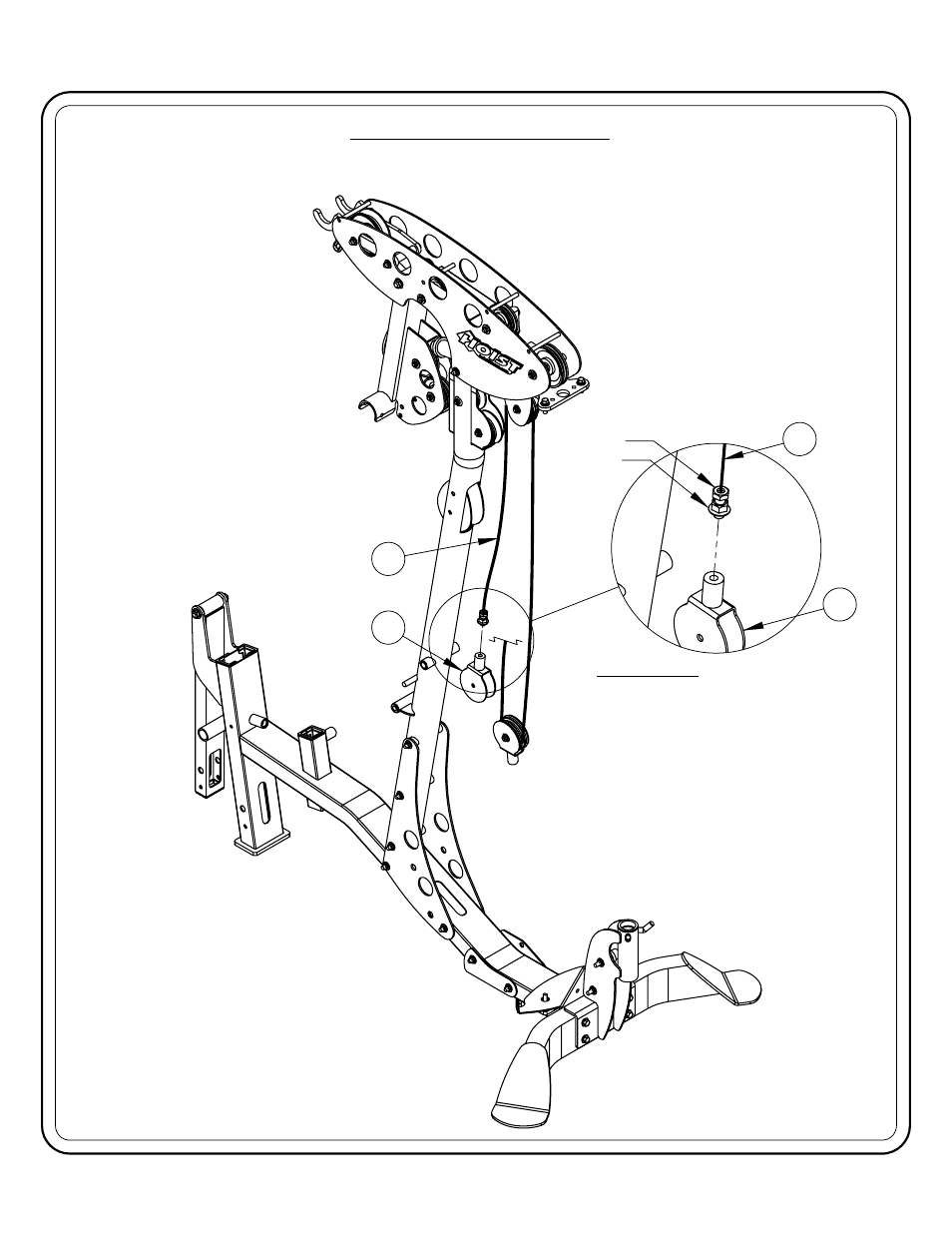

WARNING - CABLE BOLT MUST BE THREADED
A MINIMUM OF 3/8" WITH JAM NUT TIGHTENED
SECURELY TO ENSURE PROPER CONNECTION.
LOOSEN JAM NUT AND THREAD
BOLT IN/OUT TO GIVE THE CABLE
PROPER TENSION. RE-TIGHTEN
JAM NUT.
FINE TUNING:
JAM BOLT
JAM NUT
14
14
2
FRAME ASSEMBLY
NOTE:
- INSTALL CABLE AND PULLEYS AT THE
SAME TIME.
- WRENCH TIGHTEN HARDWARE.
- SOME PARTS MAY HAVE BEEN
REMOVED FOR CLARITY.
OWNER'S MANUAL
V-EXPRESS ASSEMBLY
PAGE 28
