SPECIFICATIONS
GENERAL SPECIFICATIONS OUTPUT SPECIFICATIONS
Input Voltage 4.5V~13.8V Output Programmable 0.59V ~ 5.1V
Switching Frequency Typical 500KHz Voltage Typical ±1.5% of Vo
Operating Temperature Horizontal 0°C ~ + 130°C Output Current Maximum 20A
MTBF TBD M hours Ripple & Noise 12Vin, 2.5Vout 25 mVp-p
Size (Vertical) (1.20”x0.61”x0.47”) 30.5x15.5x12.0mm Weight 8.8 g
Size (Horizontal) (1.20”x0.61”x0.51”) 30.5x15.5x12.9mm
PART NUMBERING SYSTEM
NE 12 S 0A0 V 20 P N F A
Product
Series
Input Voltage
Number of
outputs
Output
Voltage
Mounting
Output
Current
ON/OFF
Logic
Pin
Length
Option
Code
NE-
Non-isolated
Series 12- 4.5V~13.8V
S - Single
output 0A0-
programmable V- Vertical
H- Horizontal
20 - 20A P - Positive N - 0.150” F - RoHS 6/6
(Lead Free)
A-standard
MODEL LIST
Model Name Packaging Input Voltage Output Voltage Output Current
Efficiency 12Vin/5Vo @
100% load
NE12S0A0V20PNFA Vertical 4.5V ~ 13.8Vdc 0.59 V ~ 5.1Vdc 20A 94%
NE12S0A0H20PNFA Horizontal 4.5V ~ 13.8Vdc 0.59 V ~ 5.1Vdc 20A 94%

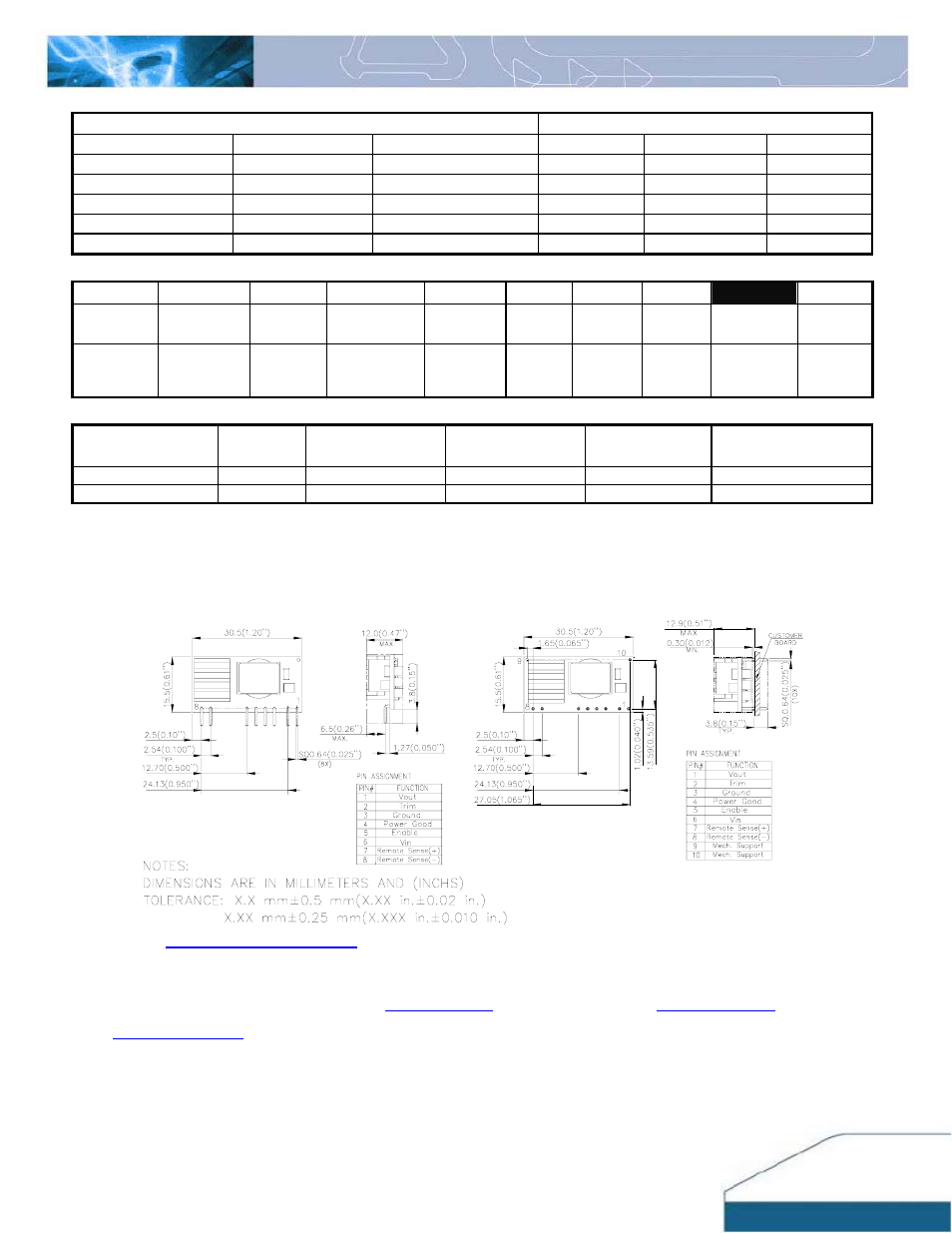

MECHANICAL DRAWING
VERTICAL HORIZONTAL
