Page 4
ERVe Hardware Required:
(4) Screws, SMS (A) 12 x 0.625 (IHH)
(2) Insulation Pans
(1) Duct Adaptor
NOTE
All curbs shipped for ERVe units will include a duct
adaptor regardless of ducting arrangement.
PVe Hardware Required:
(4) Screws, SMS (A) 12 x 0.625 (IHH)
(2) Insulation Pan
(1) Duct Adaptor, Supply Discharge
(1) Duct Adaptor, Exhaust Intake
NOTE
All curbs shipped for PVe units will include a duct
adaptor regardless of ducting arrangement.
Insulation Pan
Insulation Pan
Duct
Adaptor

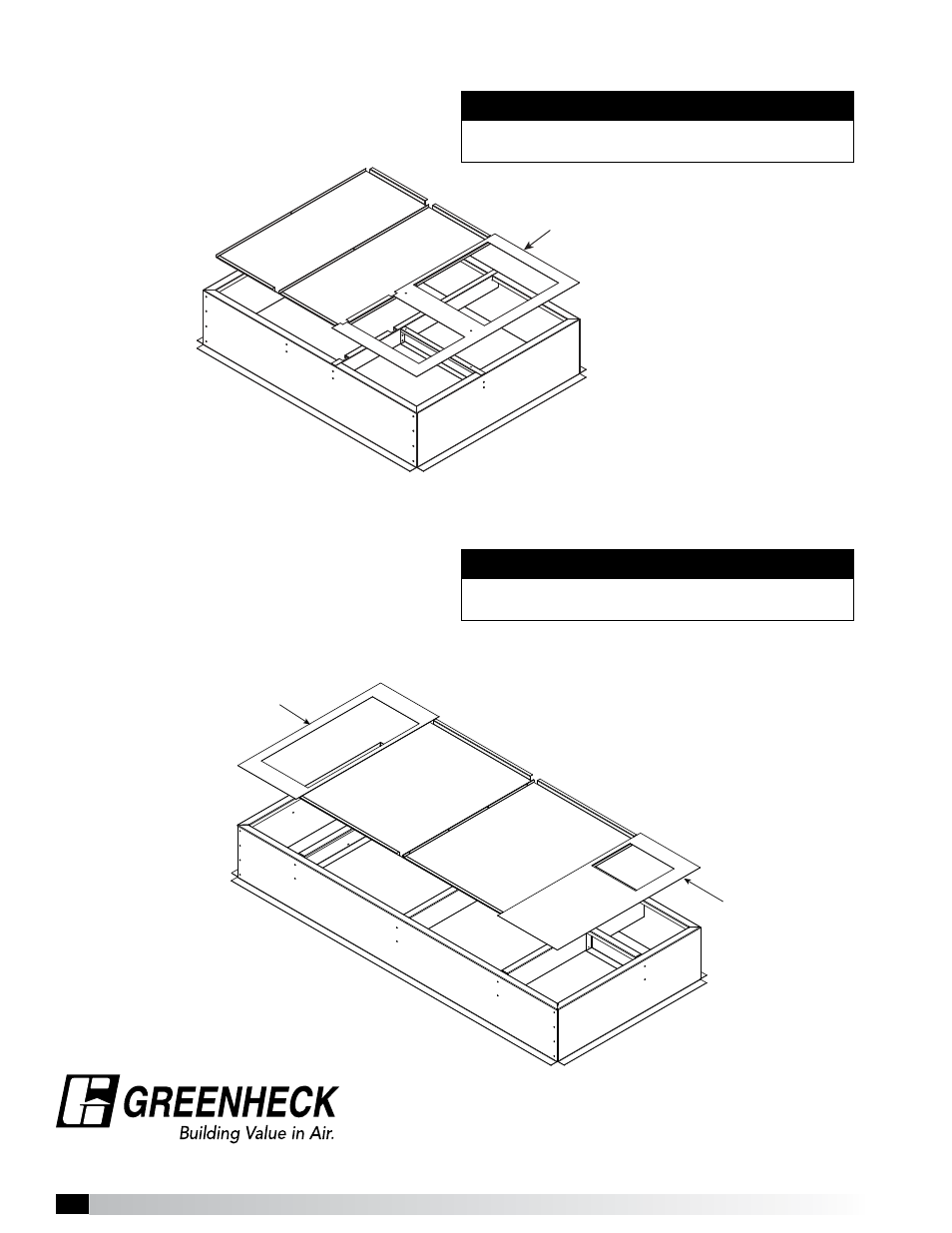

STEP 3:
Final Roof Curb Assembly for Model ERVe
STEP 3:
Final Roof Curb Assembly for Model PVe
Insulation Pan
Insulation Pan
Exhaust Intake
Duct Adaptor
Supply Discharge
Duct Adaptor
4
472119 • Model ERVe and PVe Roof Curb & Duct Adapter Assembly, Rev. 1, November 2008 Copyright 2008 © Greenheck Fan Corp.
®
Phone: (715) 359-6171 • Fax: (715) 355-2399 • E-mail: [email protected] • Website: www.greenheck.com
