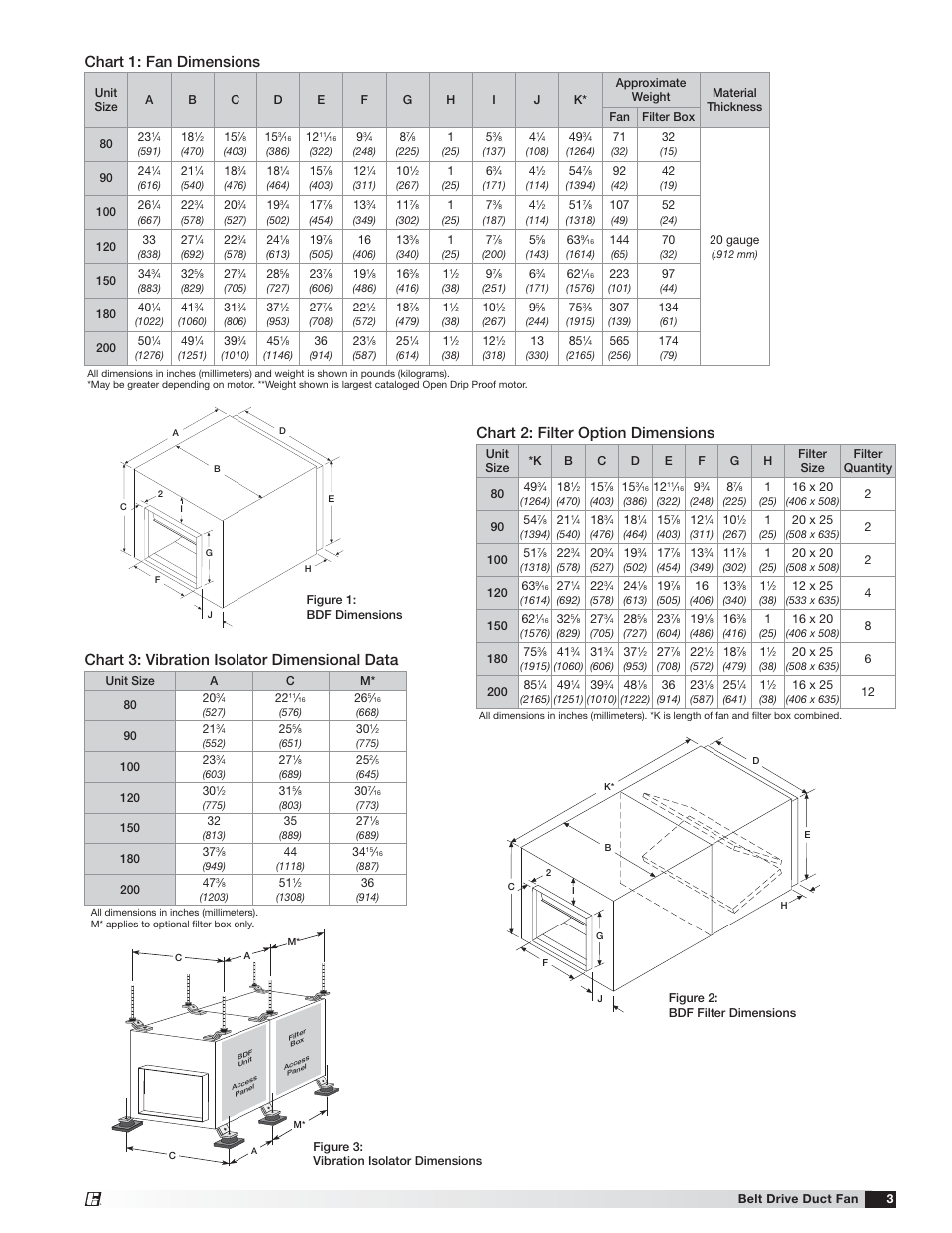

Chart 1: fan dimensions, Chart 2: filter option dimensions, Chart 3: vibration isolator dimensional data – Greenheck BDF (458341) User Manual
Page 3
