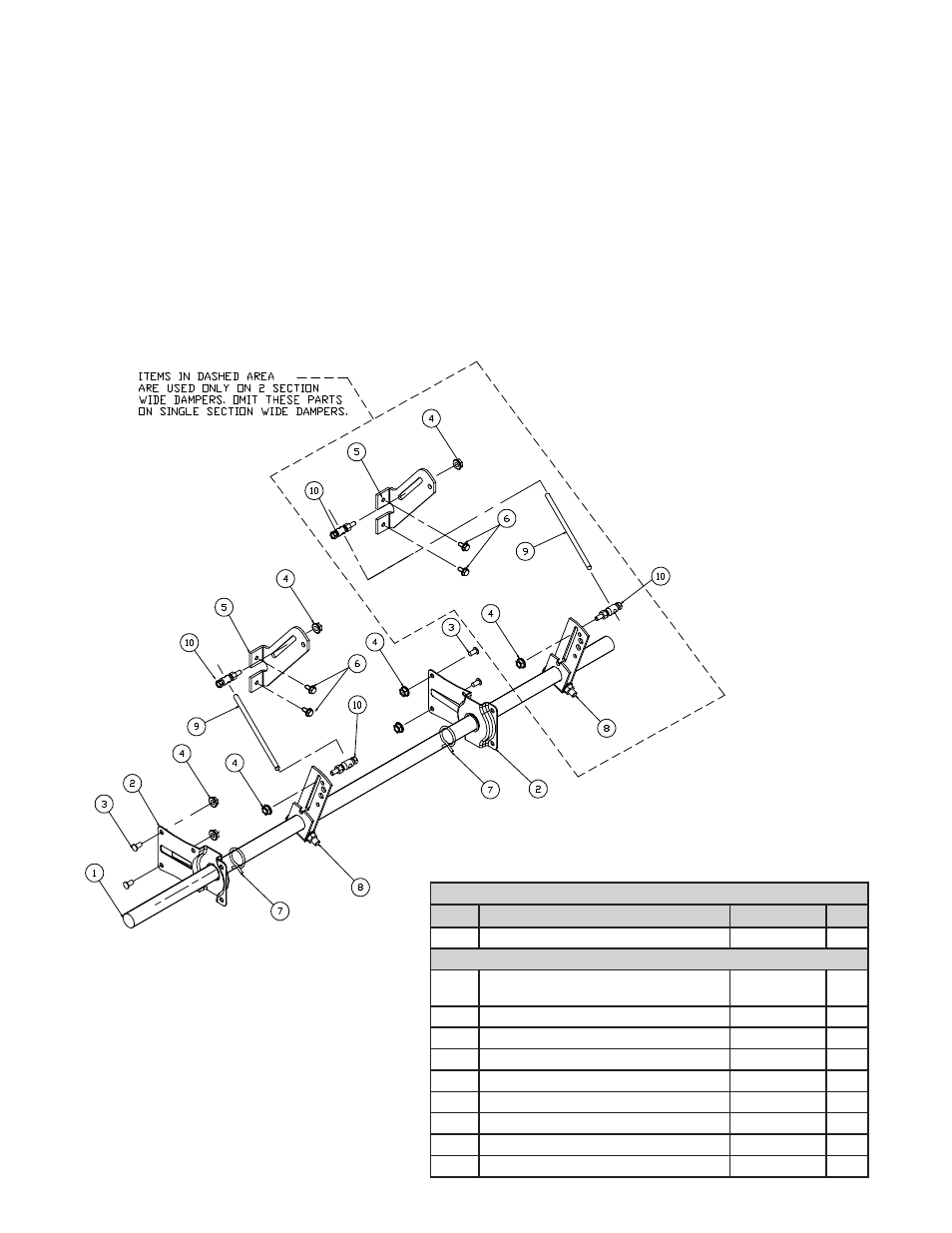

Note: Kit contains parts for 2 section wide dampers. For single section dampers, omit parts outlined. These will not be
required.
1 in. diameter jackshaft kit - 60 in. long (Part no. 849576)
Item Description Part No. Qty
1 1 in. jackshaft 733765 1
Hardware Kit (part no. 860062) includes the parts listed below.
2 1 in. diameter jackshaft bracket assy w
nyliner 834292 2
3 Thread stud, 1/4 - 20 x 1/2 in. 415609 4
4 1/4 - 20 spinlock nut 415455 8
5 Blade bracket 653629 2
6 MS 1/4 -20 x 1/2 “ (HWH) TCS ZP 415264 4
7 1 in. hose clamp 451809 2
8 1 in. crankarm assembly 816252 2
9 5/16 in. diameter linkage rod 18 in long 656472 2
10 Ball swivel 451554 4
One Inch Jackshaft Kits For 60 in. Long Jackshafts
1. Attach jackshaft brackets (item 2) to frame with
1/4-20 thread studs (item 3) and 1/4-20 spinlock nuts
(item 4).
2. Attach blade bracket (item 5) to blade with 1/4-20 x 1/2
in. machine screws (item 6).
3. Assemble hose clamps (item 7), crankarm assemblies
(item 8) onto jackshaft (item 1) as shown.
4. With jackshaft positioned between the jackshaft
brackets (item 2) and hose clamps (item 7) positioned
next to jackshaft brackets (item 2), close blades
completely and align crankarm assembly (item 8) with
blade bracket (item 5). Assemble linkage rod (item 9)
and ball swivels (item 10) to blade bracket (item 5).
The linkage rod (item 9) may need to be cut down as
required depending upon length required to connect
ball swivels with blade brackets.
5. Secure assembly by sliding hose clamps (item 7) up to
each jackshaft bracket (item 2) to secure shaft.
6. On internal mount, jackshaft must not extend past
jackshaft brackets. On external mount, jackshaft
extends past jackshaft bracket on actuator side 6
inches for actuator attachment. Cut down jackshaft as
required.
