Page 7
ELECTRICAL CHARACTERISTICS CURVES
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0
10
20
30
40
50
60
70
80
90
100
LOAD CURRENT (A)
OU
TPU
T
VOLTAGE (
V
)
48Vin

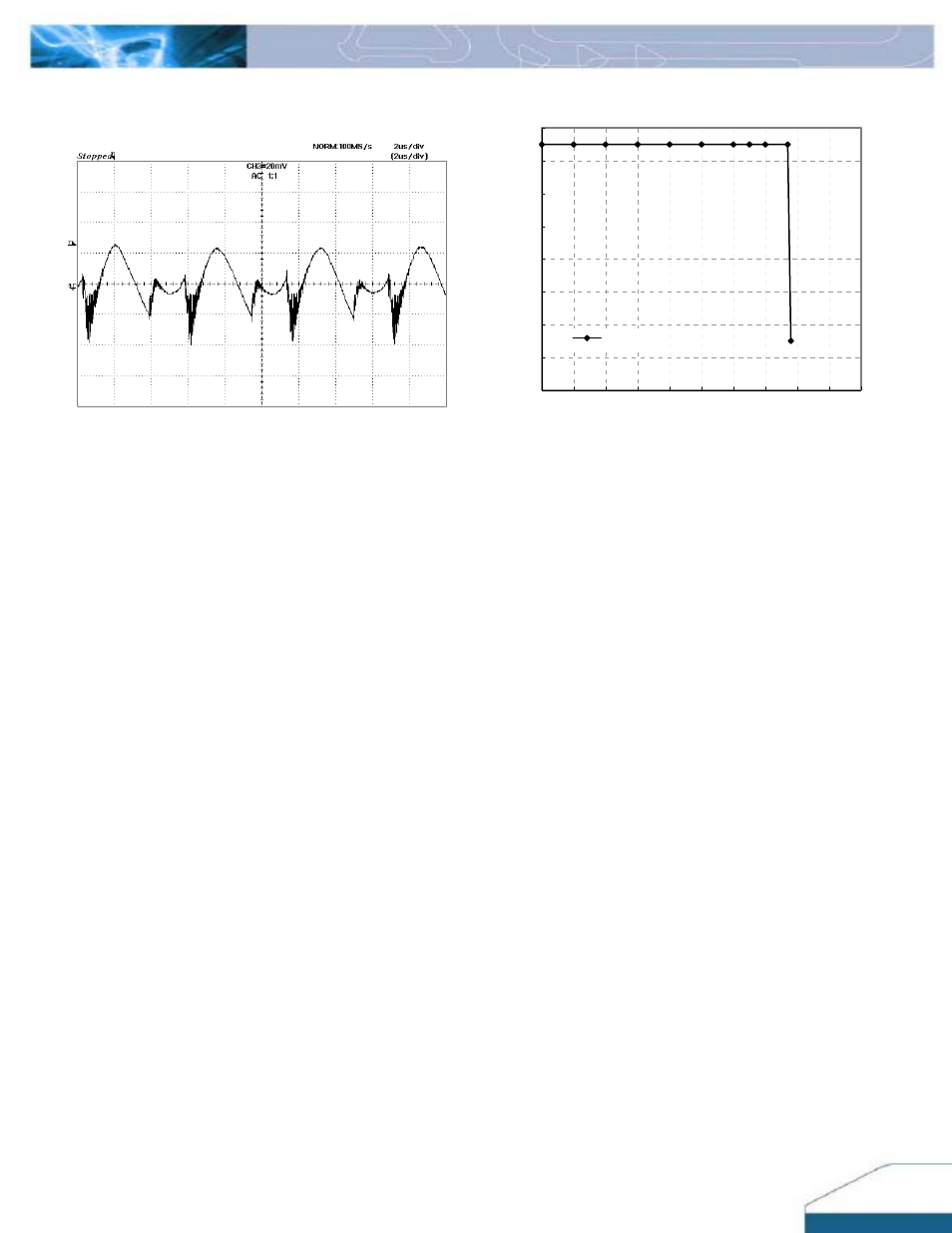

Figure 14:
Output voltage ripple at nominal input voltage and
rated load current (20 mV/div). Load capacitance: 1µF ceramic
capacitor and 10µF tantalum capacitor. Bandwidth: 20 MHz.
Scope measurement should be made using a BNC cable
(length shorter than 20 inches). Position the load between 51
mm to 76 mm (2 inches to 3 inches) from the module.
Figure
15:
Output voltage vs. load current showing typical
current limit curves and converter shutdown points.
DS_H48SL1R560_10302006
7
